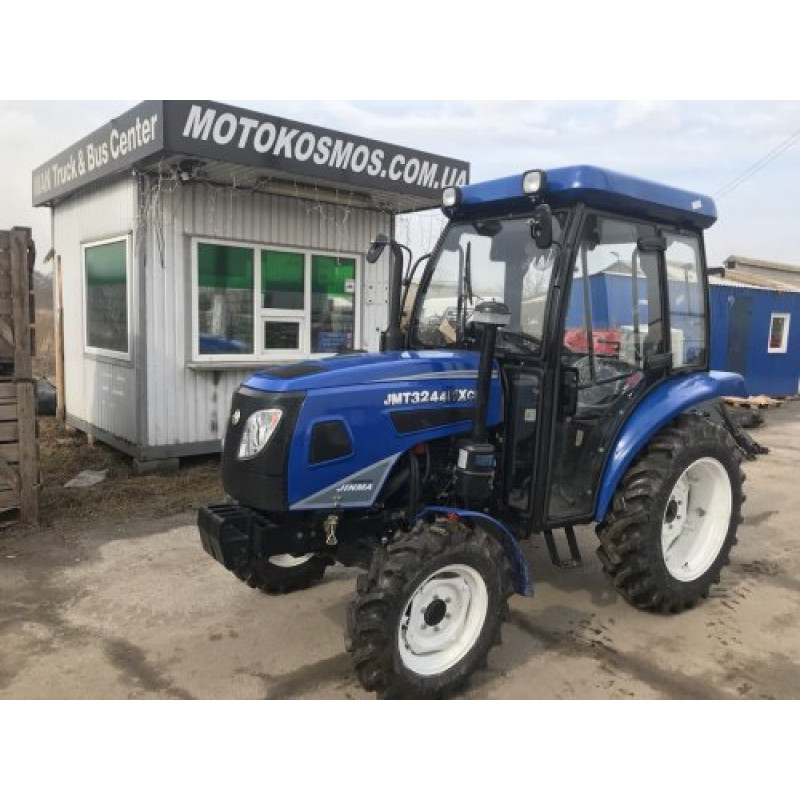

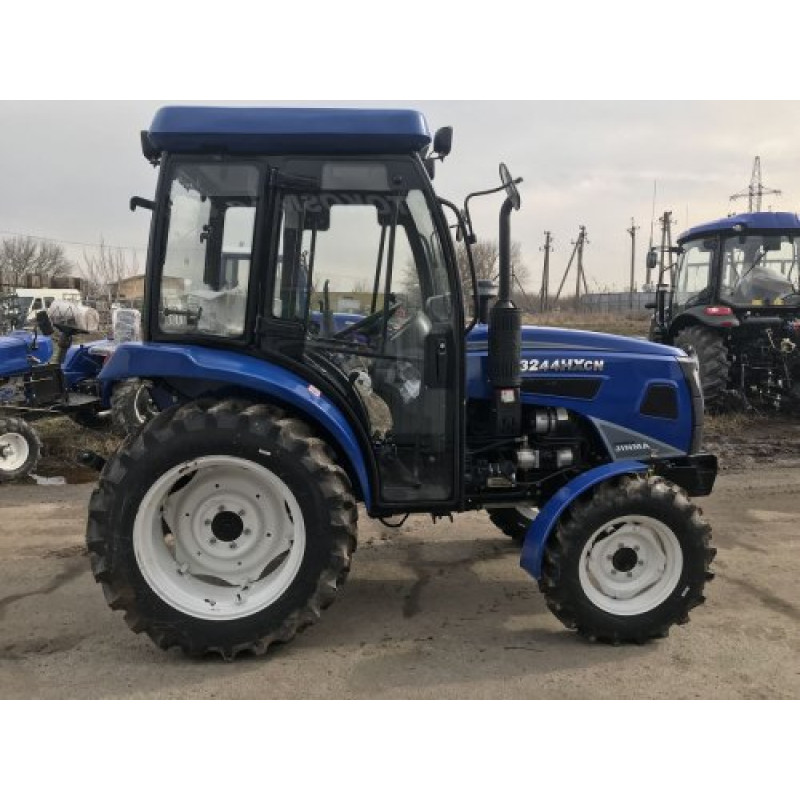

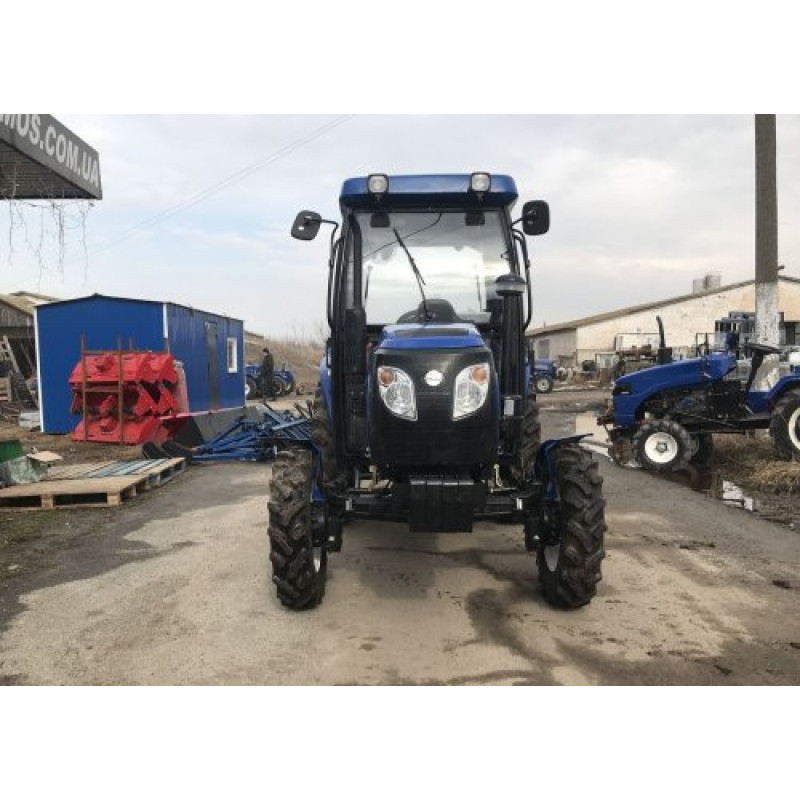

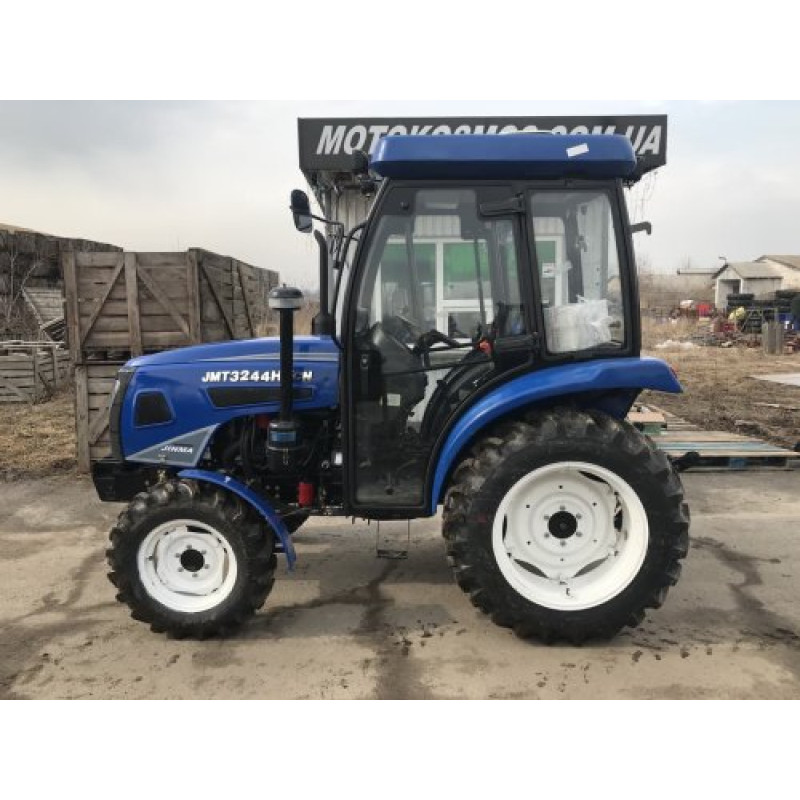

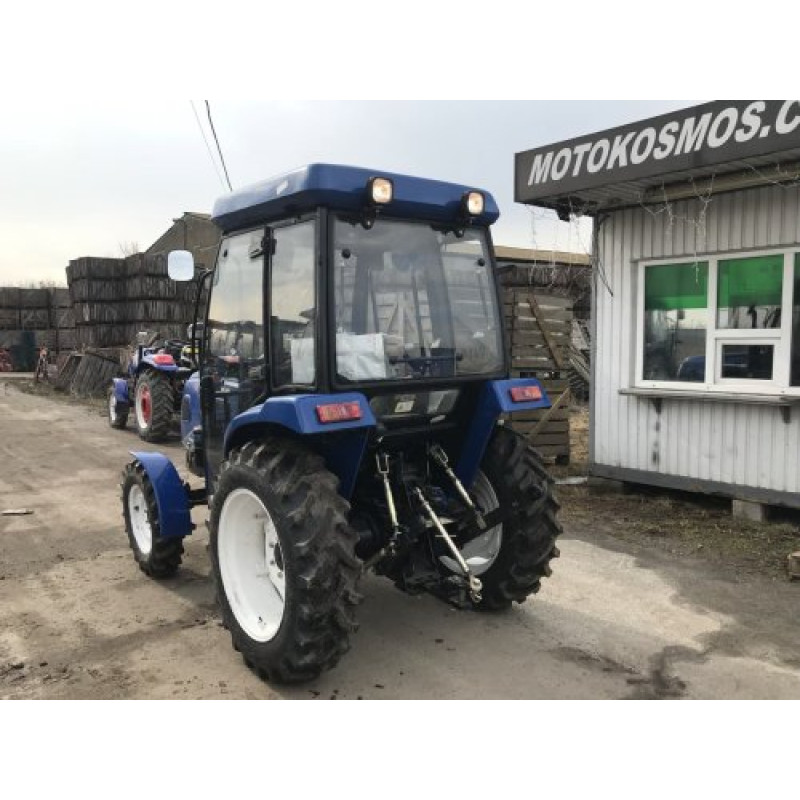

Mini Tractor JINMA JMT 3244 HXCN

The JINMA JMT 3244 HXCN model from the Jinma brand is a compact yet powerful mini tractor in the category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors, designed to perform a wide range of agricultural, municipal, and auxiliary tasks. This 24 hp (17.6 kW) tractor combines an economical diesel engine, reliable transmission, 4x4 all-wheel drive, and a comfortable heated cabin for long-term operation in various conditions.

The heart of the tractor is a three-cylinder, 4-stroke vertical diesel engine with a displacement of 1532 cm3, liquid forced cooling system, and direct injection, with a cylinder bore/piston stroke of 85x90 mm. The nominal crankshaft speed is 2350 rpm; nominal fuel consumption is 248 g/kWh, nominal oil consumption is 2.04 g/kWh. Engine starting is provided by an electric starter with safe start. The fuel pump type is plunger, in-line.

Advantages of the model

• Efficient and economical 24 hp engine (1532 cm3), adapted for long-term intensive work.

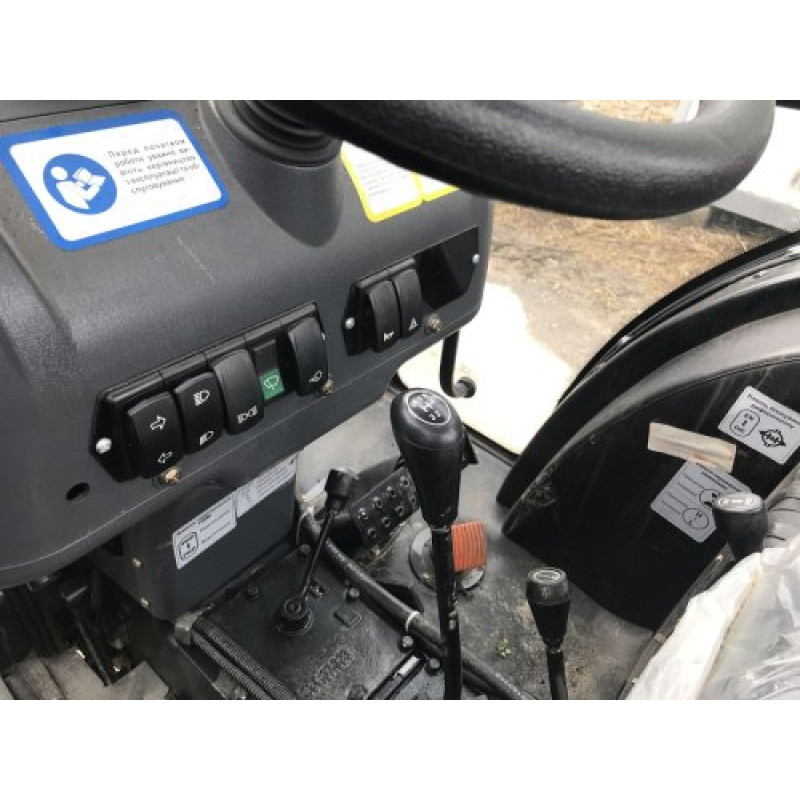

• Improved gearbox (4+1)x2x2 with reverse and creeper gear, providing a wide range of speeds and precise adjustment for various operations. The presence of a rear differential lock increases проходимость in difficult conditions.
• Power steering ensures ease and maneuverability of control, especially in narrow areas or when working with attachments.
• 4x4 all-wheel drive, large chevron-patterned tires, and 315 mm ground clearance guarantee good проходимость and stability in the field.

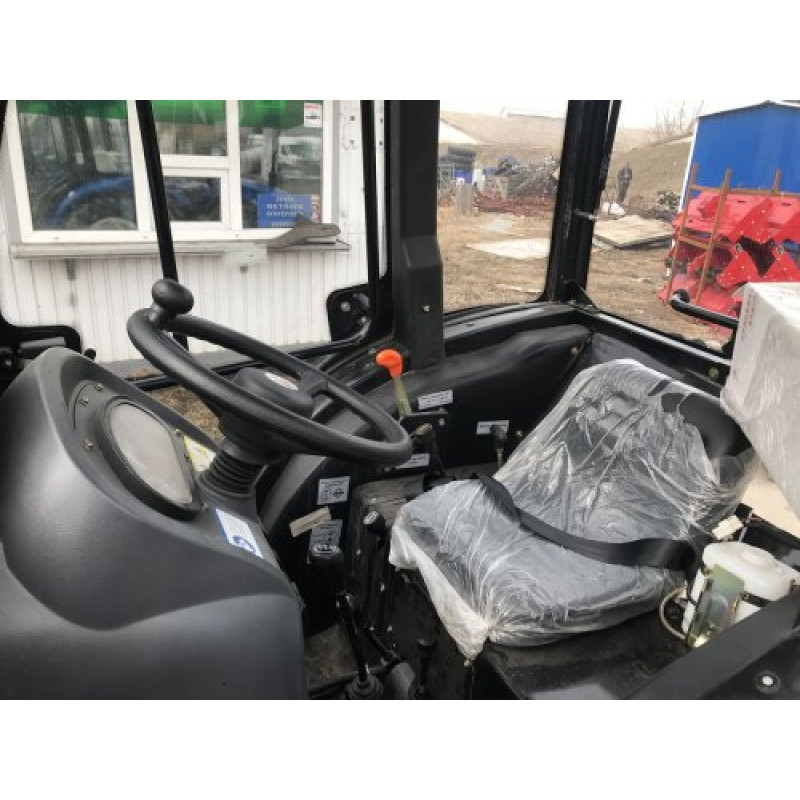

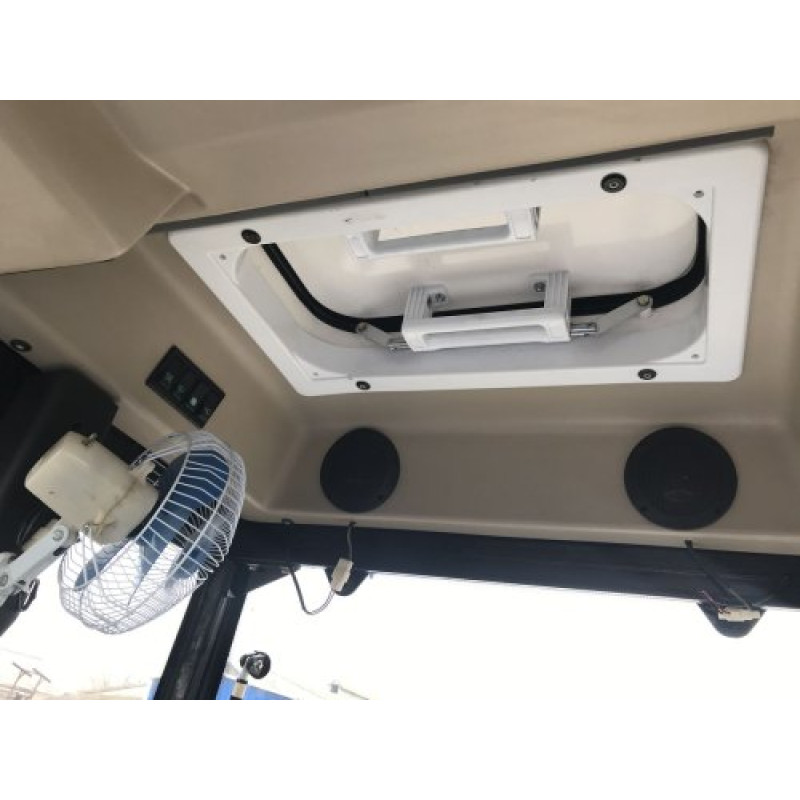

• Comfortable enclosed cabin with heating and an adjustable ergonomic seat; modern body design and durable frame materials.
• Reasonable cost for Ukrainian farmers, possibility of ordering through the online store with delivery and service support.

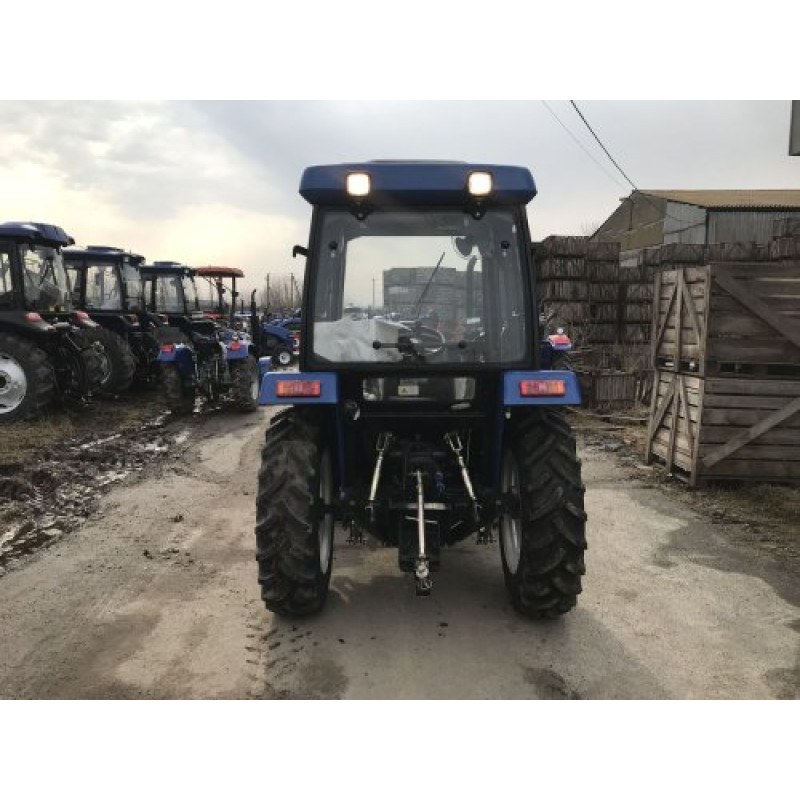

The tractor is equipped with a reliable hydraulic system: the type of hydraulic system pump and power steering pump are gear pumps. The power take-off (PTO) operates at 540/1000 rpm. The maximum lifting capacity of the three-point hitch is 420 kg, allowing the use of a wide range of mounted and trailed equipment. The cooling system fan drive is a V-belt transmission. The braking mechanism is drum-type; the clutch is dry two-disc.

Main operational parameters: nominal traction force — 6.6 kN. Maneuverability is confirmed by minimum turning radii: with one-sided brake 2.8±0.2 m, without brakes 3.0±0.2 m. Theoretical travel speed: forward 1.75–26.4 km/h, reverse 2.28–11.02 km/h.

Volumes of technical fluids and crankcase: fuel tank volume — 30.0 L; engine crankcase volume — 6.6 L; gearbox and rear axle crankcase volume — 14.0 L; front axle crankcase volume — 6.0 L; engine cooling system volume — 10.0 L; lift housing volume — 9.0 L.

Dimensions and weight of the machine: dimensions (LxWxH) — 3150x1500x2230 mm, curb weight — 1460 kg, wheelbase — 1700 mm. Rear wheel track is adjustable within 1120–1340 mm, front — 1100 mm. Tire size: rear 11.20-24, front 6.50-16.

Where to buy and service

You can buy the JINMA JMT 3244 HXCN Mini Tractor in Ukraine in our online store. We arrange online or phone orders, provide free delivery under store conditions, and professional service. Managers will provide consultation on configuration, payment, and delivery terms.

Specifications:

The JINMA JMT 3244 HXCN model is ideal for small farms and municipal enterprises that need a reliable, economical, and maneuverable mini tractor with the ability to connect various mounted and trailed equipment.
