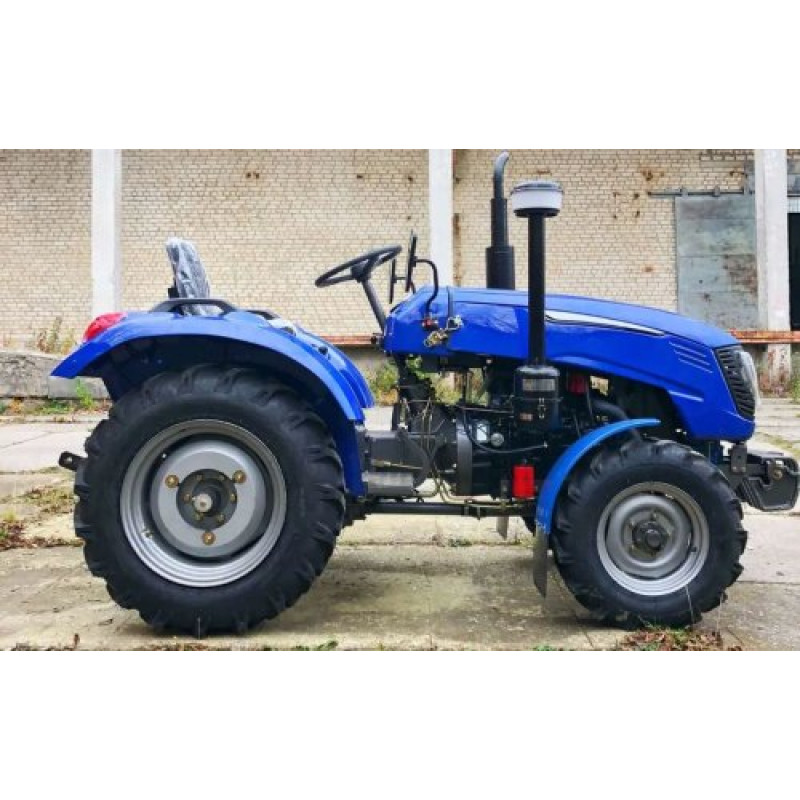

GARDEN STAR GS 244HSL Mini Tractor — A Reliable Diesel Assistant for Your Farm
The GARDEN STAR GS 244HSL mini tractor from the manufacturer GARDEN STAR is a compact, robust, and economical 4x4 tractor designed for private farms, agricultural needs, and municipal work. The model combines a fuel-efficient diesel engine, a reliable transmission, and simple, intuitive controls, making it versatile for soil cultivation, cargo transportation, and working with various attachments.
Brief Technical Specifications
Below are the key parameters of the GS 244HSL that are important when choosing a mini tractor:
- Engine Power: 24 hp (17.65 kW)
- Wheel Formula: 4x4 — improved cross-country capability in the field and on uneven terrain
- Engine Type: Diesel, 4-stroke, direct injection, non-turbocharged
- Number of Cylinders: 3, vertical arrangement
- Starting System: Electric starter
- Cooling: Liquid, closed, with forced circulation of coolant
- Fan Drive: V-belt transmission
- Engine Displacement: 1652 cm3
- Rated Engine Speed: 2300 rpm
- Gearbox: (3+1)x2
- Clutch: Dry, single-disc, constantly closed type
- Final Drive: Direct
- Steering: Mechanical
- Brakes: On rear wheels, drum brakes
- Power Take-Off (PTO) Shaft: Rear, splined; PTO speed — 540 rpm
- Hydraulic System Pump Type: Gear pump
- Maximum Lifting Capacity of Mounted Mechanism: 320 kg
- Minimum Ground Clearance: 290 mm
- Wheelbase: 1574 mm
- Wheel Track: Front 952 mm; Rear 1020, 1120, 1220, 1320 mm
- Tire Size: Front 6.50-14; Rear 9.50-20
- Fuel Tank Capacity: 17.0 L
- Overall Dimensions (L x W x H): 3220x1350x1500 mm
- Curb Weight: 1250 kg
Below is the full tabular specification for quick reference:
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, direct injection, non-turbocharged. |
| Number and arrangement of cylinders | 3, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt transmission |
| Engine displacement, cm3 | 1652 |
| Rated engine crankshaft speed, rpm | 2300 |
| Gearbox (КП) | (3+1)x2 |
| Clutch | dry, single-disc, constantly closed type |
| Final drive | direct |
| Steering | mechanical |
| Brakes | on rear wheels, drum brakes |
| Power Take-Off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump |
| Power Take-Off (PTO) shaft speed, rpm | 540 |
| Maximum lifting capacity of mounted mechanism, kg | 320 |
| Minimum ground clearance, mm | 290 |
| Wheelbase, mm | 1574 |
| Wheel track, mm | front 952, rear 1020, 1120, 1220, 1320 |
| Tire size | front 6.50-14 rear 9.50-20 |
| Fuel tank capacity, L | 17.0 |
| Overall dimensions (L x W x H), mm | 3220x1350x1500 |
| Curb weight, kg | 1250 |
The GS 244HSL is an optimal choice for those seeking a reliable mini tractor with sufficient power for agricultural and municipal work. Thanks to the combination of a robust chassis, simple transmission design, and an economical diesel engine, this tractor effectively uses attachments, is suitable for plowing, cultivation, cargo transportation, and work on uneven terrain. Mechanical steering and a proven braking system ensure ease of maintenance and operational reliability, while compact dimensions of 3220x1350x1500 mm and a curb weight of 1250 kg make the GS 244HSL convenient for use on plots of various scales.
