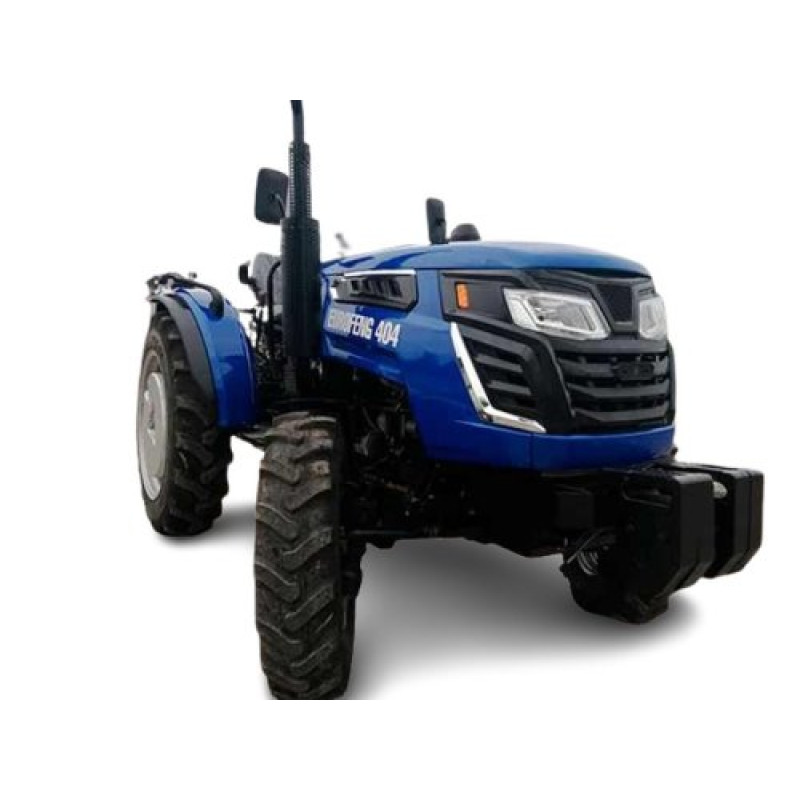

EURO FENG 404 Mini Tractor Overview
EURO FENG 404 is a powerful and reliable mini tractor from the manufacturer EURO FENG, designed for intensive work in agriculture, horticulture, and municipal services. This model combines a robust construction, an economical diesel engine, and ergonomic solutions for comfortable operation. Category: Tractors > Mini Tractors. The model is ideal for cultivating small fields, working with towed and mounted equipment, and for transport operations on farms and industrial sites.
Key Advantages
- Efficient 4-cylinder JDM390T3 diesel engine with direct injection;
- 4x4 all-wheel drive for confident movement on various terrains;
- Power steering with a separate pump and oil reservoir for easy control;
- Rear differential lock for enhanced off-road capability and safety;
- Universal PTO speeds of 540/1000 rpm and the ability to connect a wide range of mounted equipment;
- Reliable (4+1)x2 transmission and dry single-disc clutch.
Technical parameters and operational characteristics:
| Tractor power, hp (kW) | 40 (29.3) |
| Wheel formula | 4x4 |
| Engine brand | JDM390T3 |
| Engine type | vertical, 4-cylinder 4-stroke diesel with liquid forced cooling and direct injection |
| Engine displacement, cm3 | 2543 |
| Cylinder diameter / piston stroke | 90x100 |
| Nominal engine fuel consumption, g/kW*h | ≤238 |
| Fuel pump type | plunger, in-line |
| Nominal engine crankshaft speed, rpm | 2350 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Transmission (gearbox) | (4+1)x2 |
| Transmission oil type (gearbox, rear axle) | transmission oil |
| Front axle oil type | transmission oil |
| Rear differential lock | yes |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt drive |
| Braking mechanism | drum type |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of mounted mechanism, kg | 550 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1830 |
| Tire size | rear 11.20-24, front 7.50-16 |
| Minimum turning radius, m | with one-sided brake 2.6; without brake 3.0 |
| Theoretical travel speed, km/h | forward 0.39 - 31.97; reverse 0.51 - 12.76 |
| Fuel tank capacity, L | 30.0 |
| Engine crankcase volume, L | 4.5 |
| Gearbox, rear axle, and lift crankcase volume, L | 18.0 |
| Front axle crankcase volume, L | 8.0 |
| Engine cooling system volume, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3340x1570x1600 |
| Curb weight, kg | 1400 |
The EURO FENG 404 mini tractor is equipped with a transmission that provides various travel speeds and convenience for field work. The presence of a differential lock and 4x4 all-wheel drive ensures reliable traction even in difficult conditions. Recommended engine oil is mineral or semi-synthetic for diesel engines; transmission oil is used for the gearbox, front, and rear axles. Thanks to the 540/1000 rpm PTO and a lifting capacity of 550 kg, this tractor is compatible with a wide range of tillage, planting, and transport equipment.
Manufacturer: EURO FENG. Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
The EURO FENG 404 is an excellent choice for farmers and municipal services looking for a versatile, economical, and durable mini tractor for daily operation.
