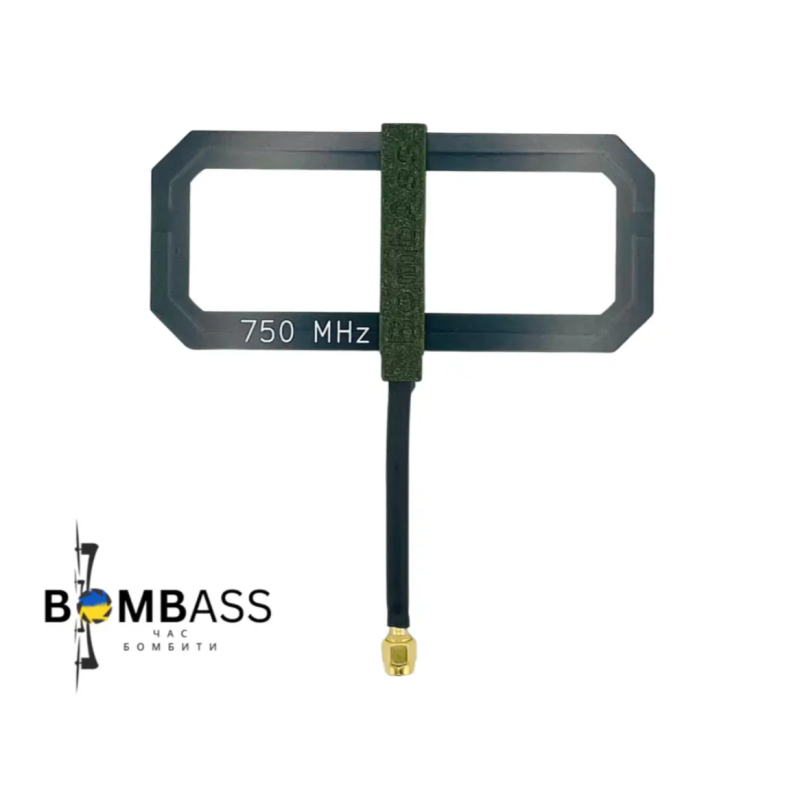

Moxon TX 750 MHz — Powerful Directional Antenna for FPV and Radio Communication

The Moxon TX 750 MHz antenna from BombAss combines compactness, reliability, and high efficiency for FPV, drone, and semi-professional communication systems. This model is made of fiberglass laminate, ensuring a lightweight design and sufficient mechanical strength for mobile installations and field conditions.

Specifications:
Antenna Type - Moxon, fiberglass laminate
Frequency - 750 MHz
Bandwidth - 40 MHz (VSWR up to 1.5)
Connector Type - SMA (RG402)
Beamwidth - 90/120 degrees
Gain - 5.2 dBi
Water Resistance - IP65

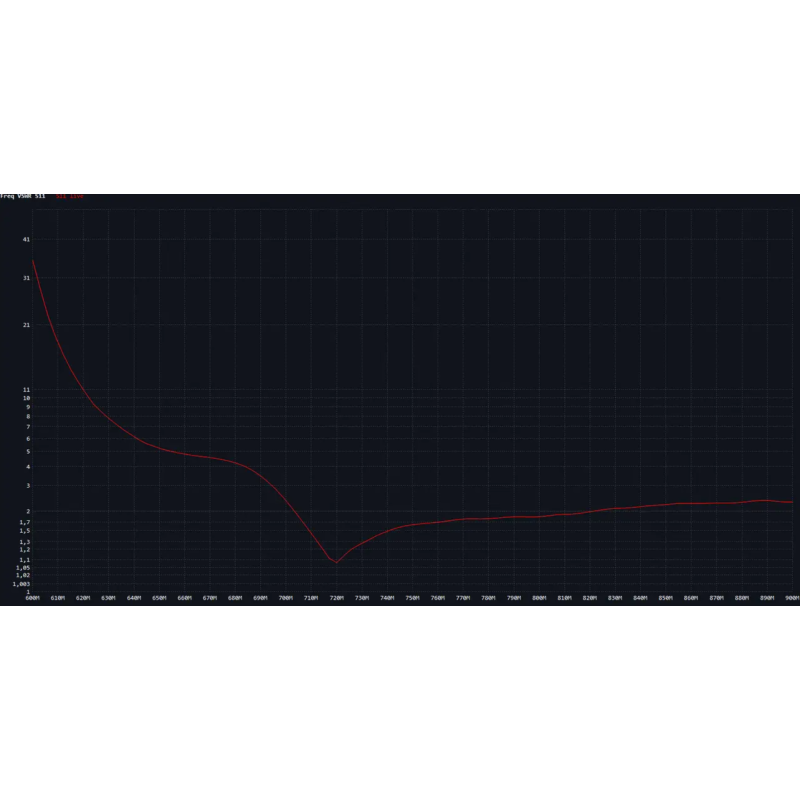

The directional radiation pattern allows concentrating energy in the desired direction, reducing the impact of side interference and thereby increasing the stability of the communication channel. The 5.2 dBi gain ensures reliable reception and transmission over medium distances, and the wide 40 MHz bandwidth with VSWR up to 1.5 guarantees efficient operation within 750 MHz without significant signal reflections.

The fiberglass laminate body combines lightness and strength, which is critical for unmanned platforms. The standard SMA (RG402) connector ensures compatibility with common transmitters and antenna-cable solutions, simplifying antenna installation and replacement. IP65 water resistance makes the device suitable for outdoor use in conditions of high humidity and dust.

Usage Recommendations:

• Use for FPV transmitters, drones, and two-way radios in the 750 MHz range, after checking connector compatibility and permissible transmitter power.
• Use beamwidths of 90 or 120 degrees depending on the desired directivity: 90° — narrower directivity and greater range margin, 120° — wider coverage with less focus.
• Mounting on mobile platforms must ensure rigid fastening and protection of the connector from contamination to maintain IP65 ratings.

Additional information: the original marking includes the TG tag - BombAssFPV, which may indicate a Telegram channel or a manufacturer/community catalog related to the product. Manufacturer: BombAss. Product category: Antennas > Moxon Antenna.

The Moxon TX 750 MHz antenna is a practical solution for amateur and semi-professional tasks: from FPV flights to stable communication in field conditions. It combines directivity, moisture protection, a standard SMA (RG402) connector, and ease of installation, making it convenient for replacement and integration into existing systems.
