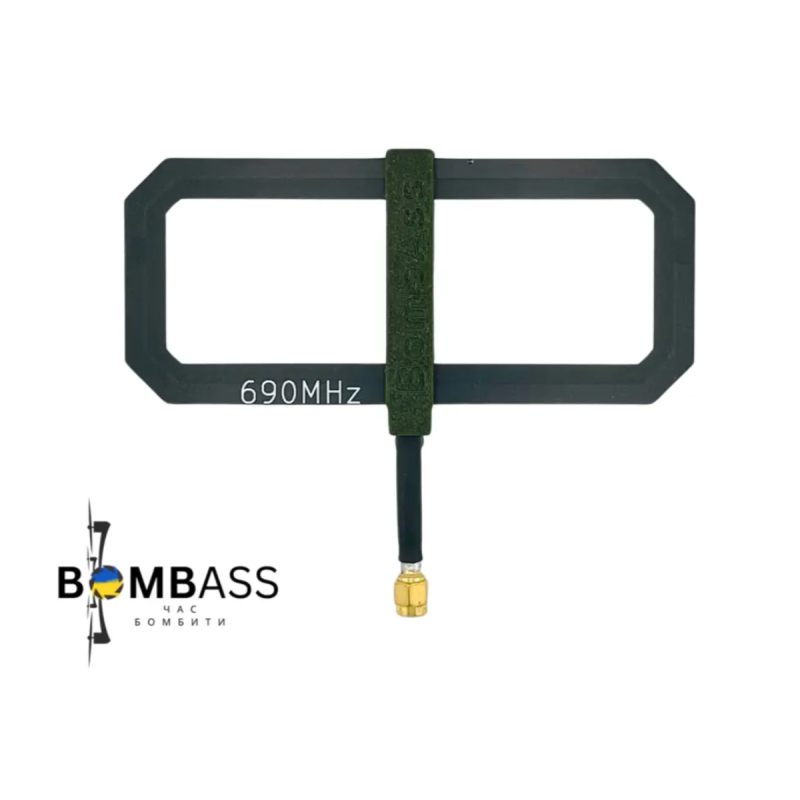

Moxon TX 690 MHz Antenna by BombAss — Compact and Reliable Solution for FPV and Radio Communication

Brand: BombAss
Model: Moxon TX 690 MHz
Antenna Type: Moxon PCB
Category: Antennas > Moxon Antenna

The Moxon TX 690 MHz antenna is designed for enthusiasts and professionals who require a stable link in the 690 MHz band. It combines a compact PCB design with good directivity, making it ideal for mounting on quadcopter frames, portable antenna systems, and FPV kits. Its lightweight and durable construction ensures easy installation and longevity during flights in field conditions.

Technical Specifications

• Frequency: 690 MHz

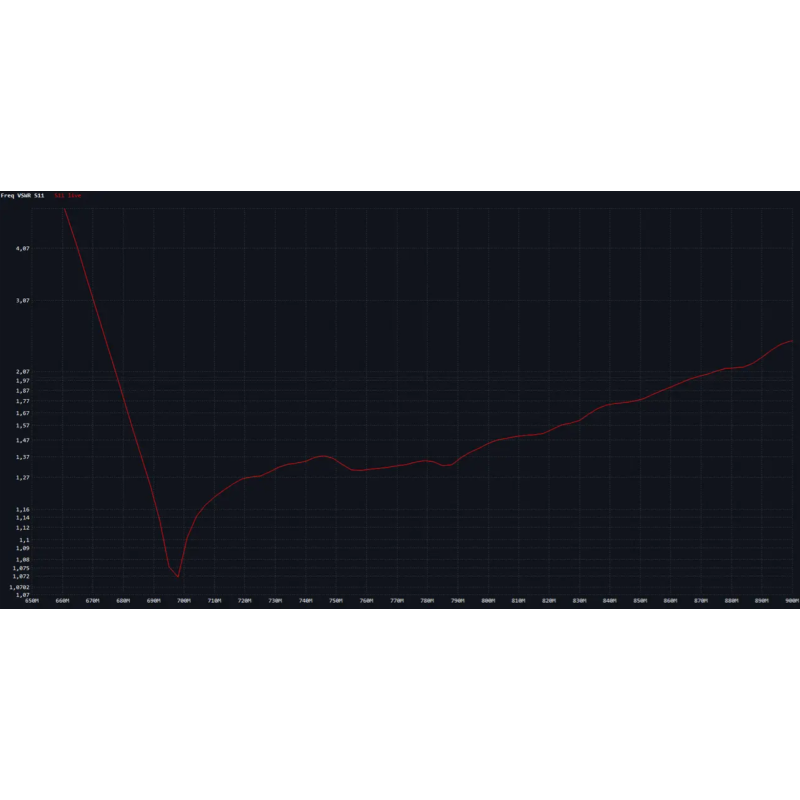

• Bandwidth: 40 MHz (VSWR up to 1.5)
• Connector Type: SMA (RG402)
• Beamwidth: 90/120 degrees
• Gain: 5.2 dBi
• Water Resistance: IP65
• Material: PCB (Moxon)
• TG: BombAssFPV

The 5.2 dBi gain provides a balanced radiation pattern: sufficient gain for medium distances combined with a wider coverage area, which is beneficial during dynamic FPV flights. The 90/120° beamwidth options allow the antenna to be adapted to various mounting and orientation schemes, maintaining quality signal reception during maneuvers.

A 40 MHz bandwidth with VSWR up to 1.5 ensures efficient transmission of high-definition video and telemetry without significant distortion within the 690 MHz operating range. The SMA connector, combined with RG402 coaxial cable, provides a reliable electrical and mechanical connection to most transmitters and receivers, simplifying antenna integration into existing systems.

The PCB (Moxon) material makes the antenna both lightweight and durable, which is important for use on quadcopters and portable setups. The IP65 protection level ensures operation in high humidity and dusty conditions: the antenna withstands rain and dust loads, making it suitable for field and outdoor use.

Advantages and Applications

• Optimal for FPV flights and video signal transmission in the 690 MHz band
• Compact Moxon PCB design for simple and reliable mounting
• Compatibility with standard SMA(RG402) connectors for quick connection
• IP65 protection for outdoor operation
• Balance between gain and beamwidth for stable communication at medium distances

The Moxon TX 690 MHz antenna by BombAss is an excellent choice for users seeking a reliable solution for video and telemetry transmission at 690 MHz. Consider the technical parameters when choosing: 690 MHz frequency, 40 MHz bandwidth (VSWR up to 1.5), SMA (RG402) connector, 90/120° beamwidth, 5.2 dBi gain, PCB material, and IP65 water resistance for compatibility with your equipment and operating conditions. For urgent questions and compatibility clarifications, contact us on TG: BombAssFPV
