Moxon TX 720 MHz — an effective antenna for FPV and telecommunications

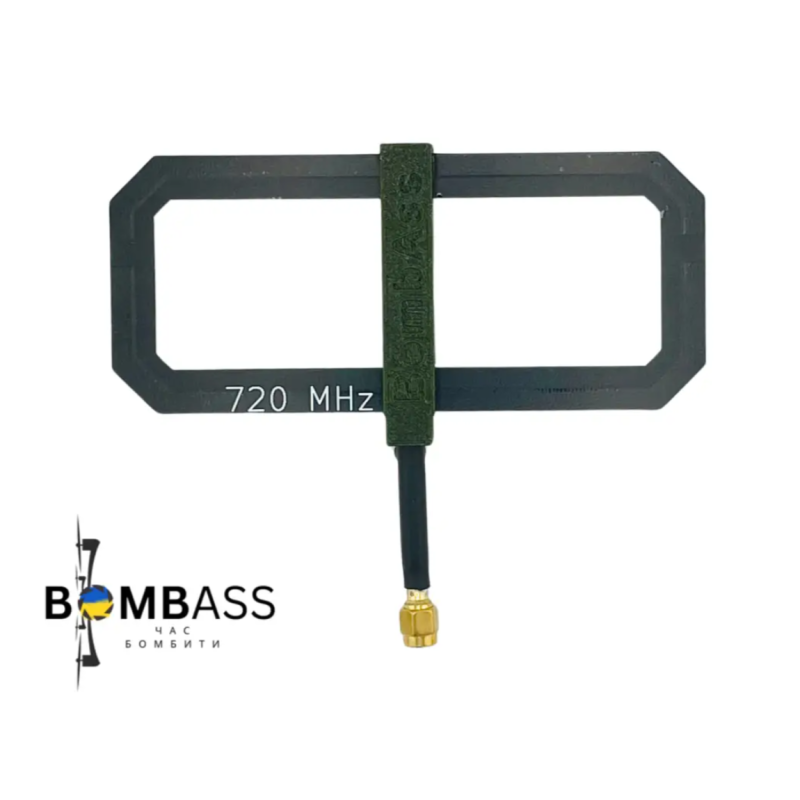

The Moxon TX 720 MHz antenna from the BombAss brand is a reliable and lightweight solution for 720 MHz transmission, designed specifically for FPV systems, drones, and local telecommunication tasks. The antenna type is Moxon PCB, which ensures low weight and sufficient mechanical rigidity for mounting on models and small platforms. The product belongs to the category: Antennas > Moxon Antenna.

Technical specifications

The antenna exhibits pronounced directivity with a beamwidth of 90/120 degrees, allowing signal energy to be concentrated in the desired direction while maintaining sufficient beam width for maneuvering without losing connection. A gain of 5.2 dBi provides improved link stability at medium distances compared to standard omnidirectional antennas.

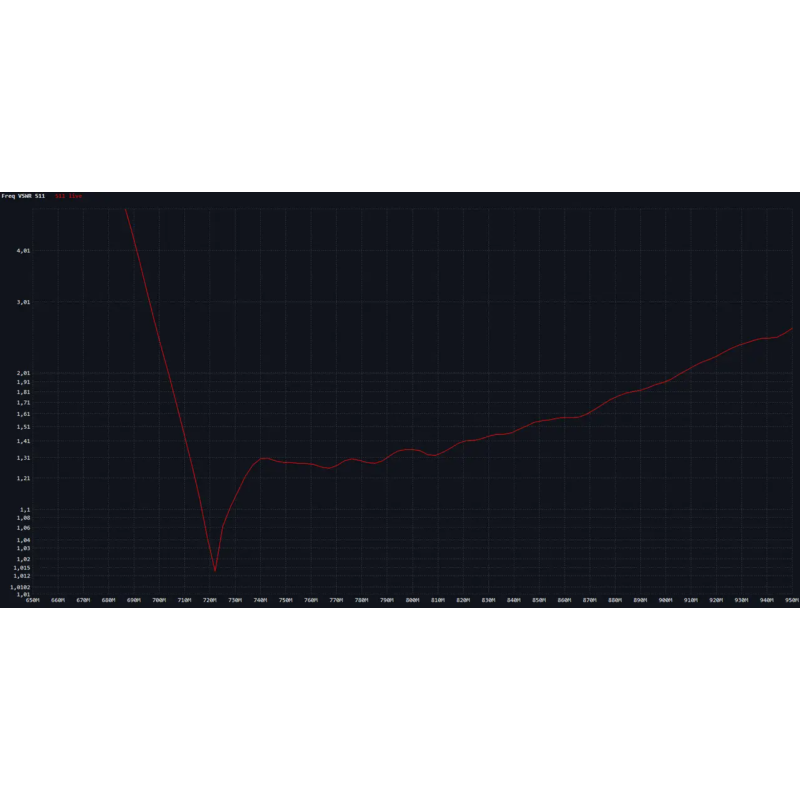

A 40 MHz bandwidth with VSWR up to 1.5 ensures that the antenna covers the required operating range with acceptable matching parameters. The SMA connector, combined with the use of RG402 cable, provides reliable connection and low losses at high frequencies; RG402 cable is known for its mechanical stability in airborne installations.

Advantages and applications

• Lightweight PCB construction — ideal for drones and aircraft model platforms with limited payload capacity.
• IP65 protection — withstands dust and water jets, suitable for outdoor operation in various weather conditions.
• Optimal combination of beamwidth and gain — excellent for FPV video and telemetry transmissions and local radio networks.
• Compatibility with SMA-connector equipment and easy integration into existing systems due to the standard connector.

The Moxon TX 720 MHz antenna from BombAss is recommended for users who need a balance between directivity, gain, and resistance to external conditions. It is suitable for both amateur flights and professional filming where stable video and telemetry transmission is required. The PCB base in the design ensures ease of manufacturing, low weight, and repeatability of parameters in production.

Before mounting, pay attention to connector compatibility and cable requirements: for optimal operation, it is recommended to use a high-quality RG402 cable or an appropriate adapter. To ensure maximum durability, avoid excessive mechanical loads and strong vibrations by properly adjusting the antenna mounting on the platform.

If you are looking for a reliable, lightweight, and durable antenna for 720 MHz operation, the Moxon TX from BombAss is an excellent choice for your tasks.
