Product Code: 57337-999
In Stock
75 000 грн.
Buy this product in 1 click:
Main specifications
Antenna type:
external antennas 915 MHz and 5.8 GHz (system-configured)
Connector type:
Ethernet RJ-45 (10/100/1000 Base-T)
Device type:
digital FPV ground control station
DVR availability:
yes (digital video recording)
Materials:
protected housing (IP54), shock-resistant field design
All specifications
We will deliver this product:
Payment
Description

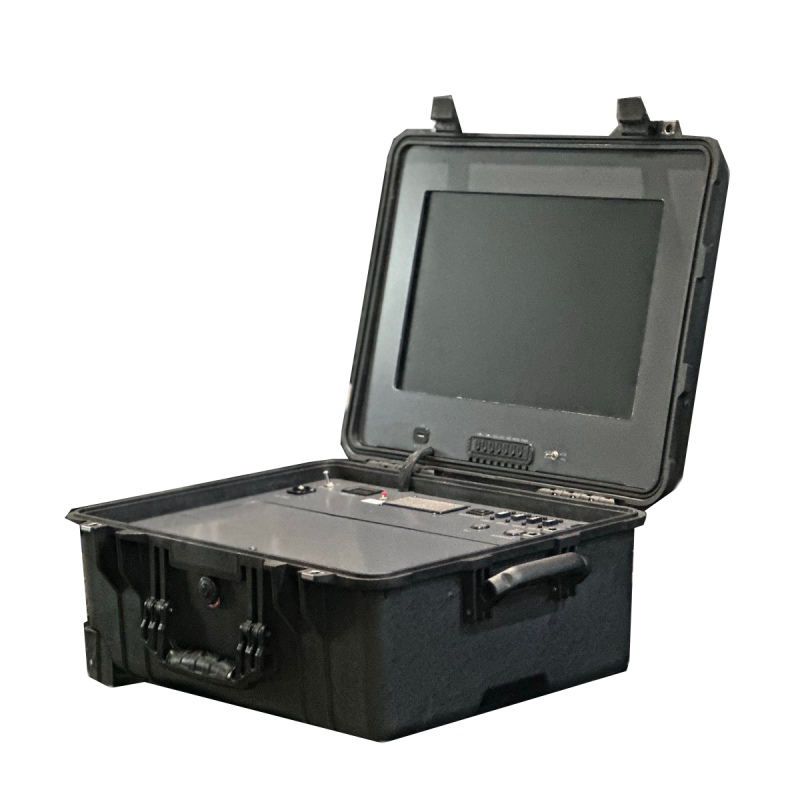

Professional station for ultra-long-range piloting. The key advantage — a fully digital architecture that guarantees crystal-clear HD video transmission without “noise” and instant response to control commands.
Interference protection: The system is designed to operate in areas with critical levels of radio frequency contamination. Thanks to the integration of three independent transmitters, the operator gets a stable communication channel where analog systems lose signal. This also allows controlling different types of UAVs from a single console by simply switching the active channel.
SPECIFICATIONS
* exact cost to be confirmed
Interference protection: The system is designed to operate in areas with critical levels of radio frequency contamination. Thanks to the integration of three independent transmitters, the operator gets a stable communication channel where analog systems lose signal. This also allows controlling different types of UAVs from a single console by simply switching the active channel.
SPECIFICATIONS
| Frequency bands | TX/RX 915 MHz (control) 5.8 GHz (video) |
| Transmit power (ERP) | up to 2 W for 915 MHz |
| Video | 5.8 GHz, min. 480p / 15 fps |
| Latency | <100 ms (control), <200 ms (video) |
| Power supply | 18–24 V DC, consumption <20 W. 220V AC power option available |
| Batteries | 2× 6S |
| Ethernet RJ-45 connection (10/100/1000 Base-T) | digital communication systems based on LAN Ethernet communication |
| Secure, encrypted communication channel | + |
| Operates under network restrictions (DPI) | + |
| HORIZON mode support | + |
| Protection | IP54 (dust and splash), overvoltage and short circuit |
* exact cost to be confirmed
Specifications
Antenna type
external antennas 915 MHz and 5.8 GHz (system-configured)
Connector type
Ethernet RJ-45 (10/100/1000 Base-T)
Device type
digital FPV ground control station
DVR availability
yes (digital video recording)
Materials
protected housing (IP54), shock-resistant field design
Module type
digital TX/RX modules with multi-channel architecture
Monitor availability
yes (via digital station/control interface)
Operating frequency
915 MHz (control) / 5.8 GHz (video)
Power source
18–24 V DC or 220 V AC (optional)
