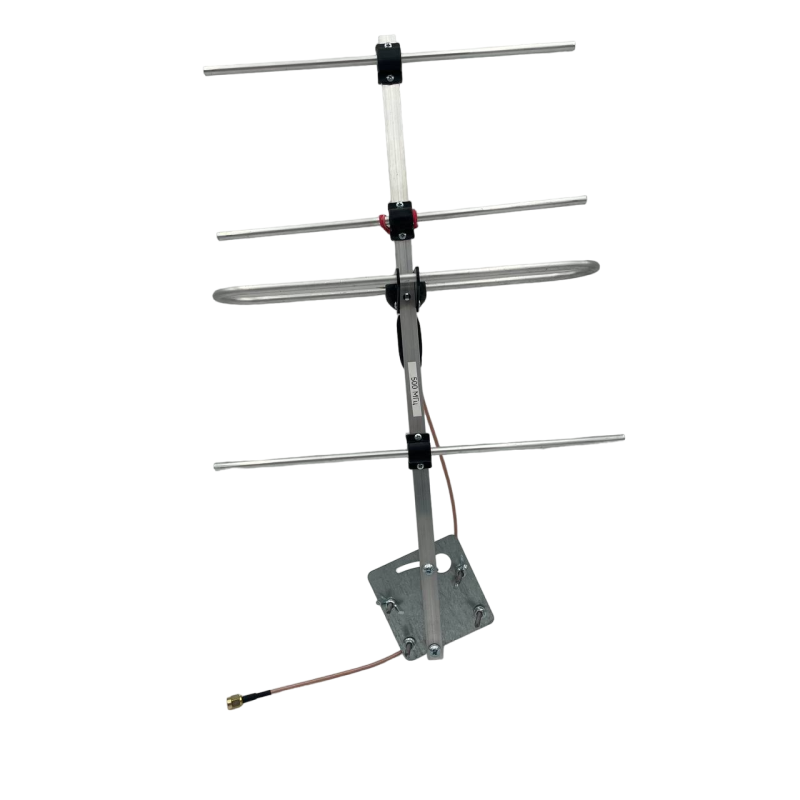

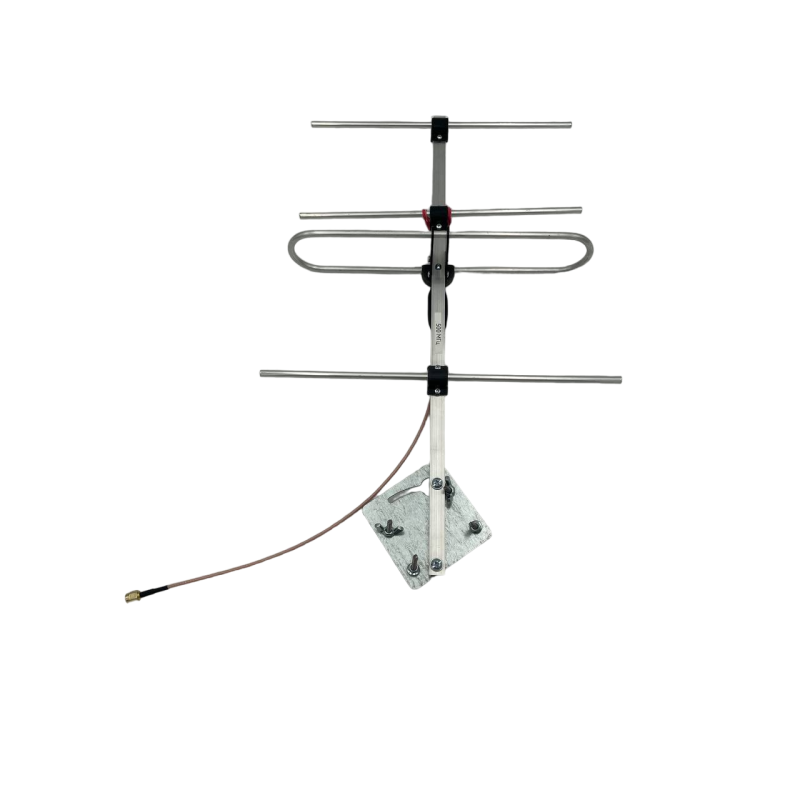

SkyReach mini Yagi 900 MHz Directional Antenna

The compact mini Yagi directional antenna is designed for stable reception and transmission in the 900 MHz band. This model from SkyReach features enhanced gain of 8.6 dBi and a narrow beam angle of 40°, allowing the signal to be focused in the desired direction and reducing interference from the sides. The aluminum construction ensures lightness, strength, and corrosion resistance, making the antenna suitable for outdoor use.

This antenna is a mini Yagi type with 4 sections and features linear polarization, simplifying compatibility with most transceivers. A low standing wave ratio SWR of 1.1 guarantees minimal signal loss at the input, and an input impedance of 50 Ω matches standard antenna-cable circuits.

Technical Specifications

• Frequency: 900 MHz
• Gain: 8.6 dBi
• Beam Angle: 40°
• SWR: 1.1
• Polarization: Linear
• Input Impedance: 50 Ω
• Number of Directors: 2
• Connection Cable Length: 410 mm
• Connector: SMA
• Material: Aluminum
• Dimensions: 370 x 198 x 60 mm
• Weight: 172 g

The antenna is optimal for applications requiring directionality and space saving: connection to GSM/LPWAN equipment, signal amplifiers, IoT solutions in rural areas or at industrial sites. The SMA connector ensures simple and reliable connection to modems and routers with the appropriate interface. The 410 mm connection length allows the antenna to be placed at a short distance from the equipment, ensuring convenient installation.

Thanks to its compact dimensions of 370 x 198 x 60 mm and weight of 172 g, the antenna is easy to install on masts, brackets, or external enclosures without significant load on the mounts. The aluminum body combines strength and low weight, and the 4-section design provides a stable radiation pattern. The SWR and gain parameters make this model suitable for tasks where efficiency and communication reliability are important.

Product Category: Antennas > Yagi Antennas. Manufacturer: SkyReach. The model is suitable for a wide range of 900 MHz network applications requiring a high-quality directional antenna with simple SMA connector hookup.
