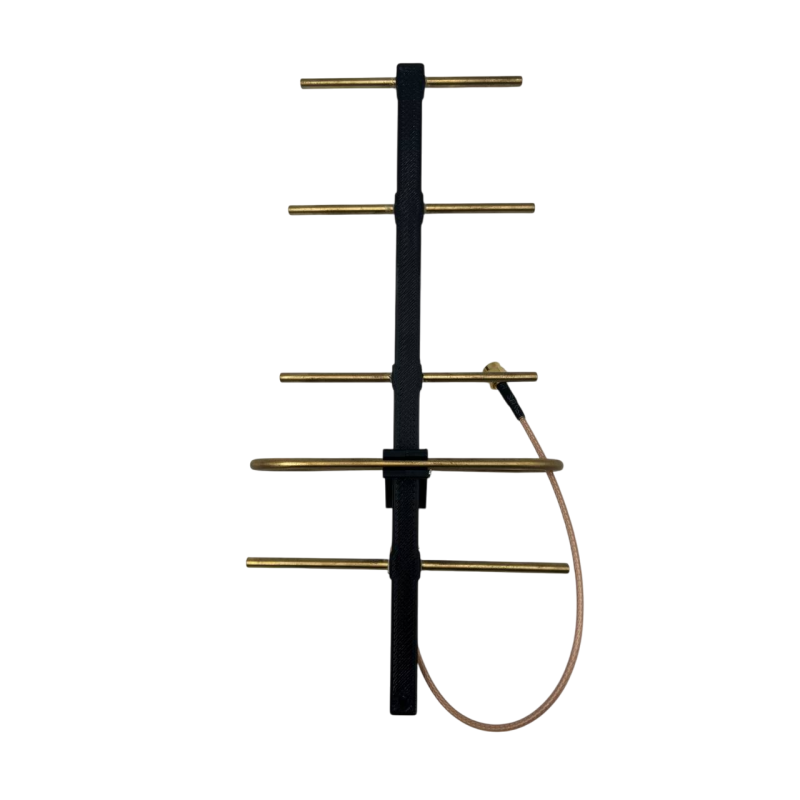

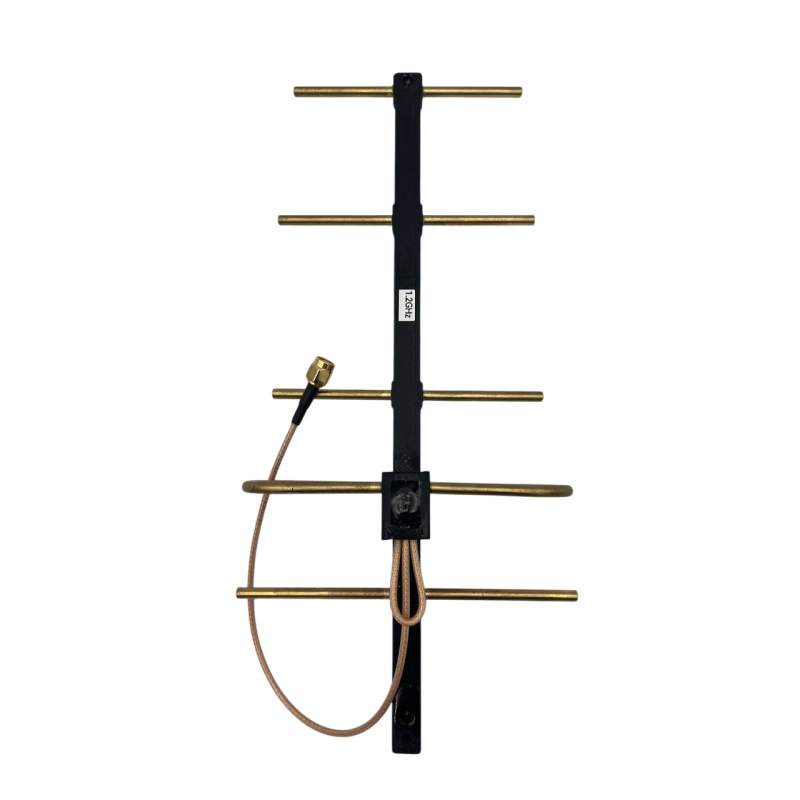

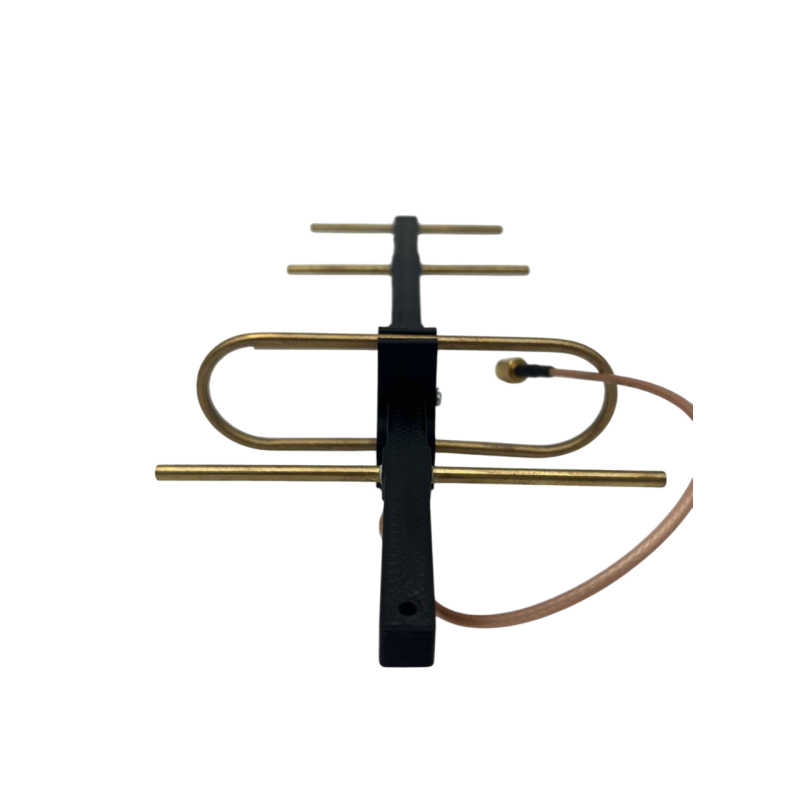

SkyReach Mini Yagi 1.2 GHz Directional Antenna — Compact, Lightweight, and Powerful

The Mini Yagi 1.2 GHz antenna from SkyReach is an ideal solution for long-range telemetry, FPV flights, droning, amateur radio, and scientific research. The name specifies "5 sections SMA," highlighting its compact modular design with an SMA connector, while technically the antenna has 6 elements, ensuring an optimal balance between directivity and weight. The Mini Yagi combines precise aiming, minimal losses, and high efficiency for long-distance applications.

⚙️ Specifications:

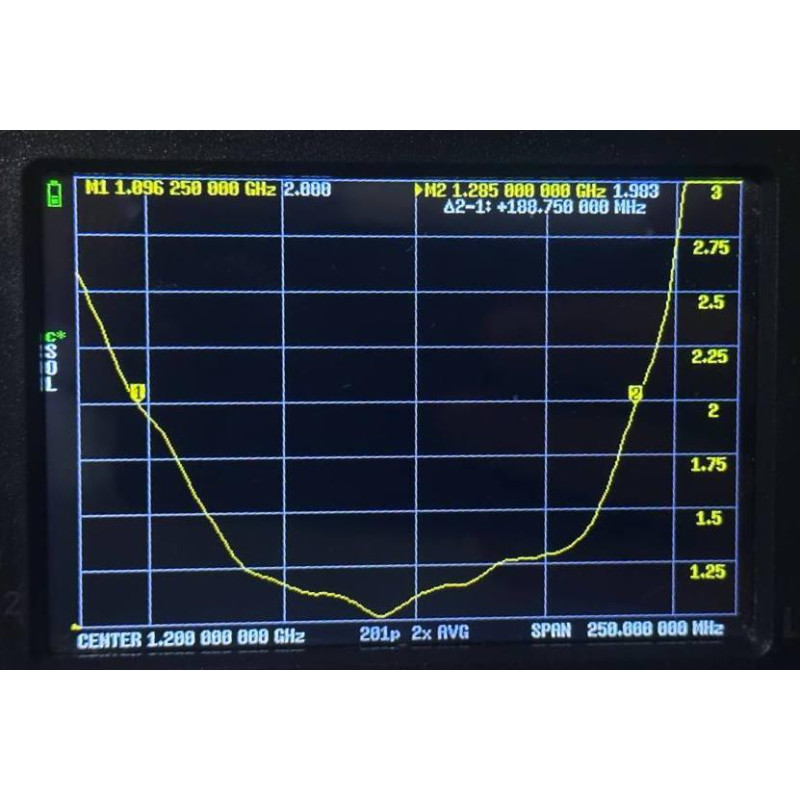

• Frequency Range: 1.2 GHz (center 1.200 GHz, measured 1.096–1.285 GHz)

• Polarization: Linear

• Type: Directional Yagi antenna

• Number of Elements: 6

• Sections: 5 sections (design with SMA interface)

• Gain: 8.6 dBi

• Beamwidth (HPBW): approximately 40°

• Input Impedance: 50 Ohm

• Connector: SMA (standard type)

• Dimensions: 255 × 125 × 40 mm

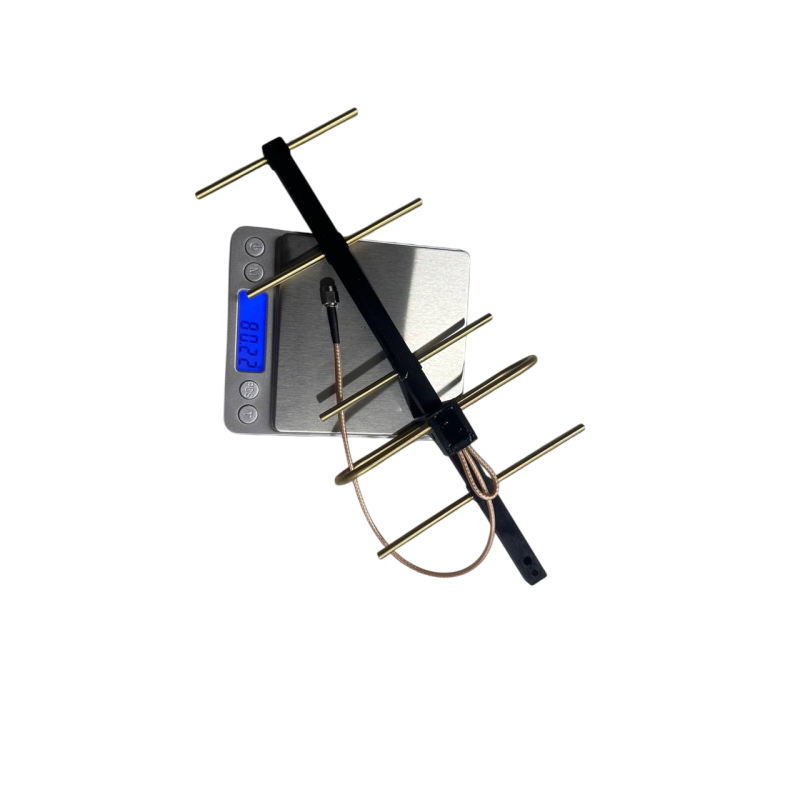

• Weight: approximately 80 g

• Materials: brass elements and PLA or PETG frame

The antenna is designed for operation in conditions where precise directivity and low weight are important — for example, on unmanned platforms or in mobile telemetry stations. The design with brass elements guarantees stable electrical characteristics, while the PLA or PETG frame provides strength and lightness. The SMA connector facilitates connection to standard transmitters and receivers.

This product is well-suited for users who need a compact directional antenna with high gain for tasks in the ~1.2 GHz range: from amateur projects and FPV to research telemetry and industrial applications.

Manufacturer: SkyReach
Product Type: Antennas > Yagi Antennas
