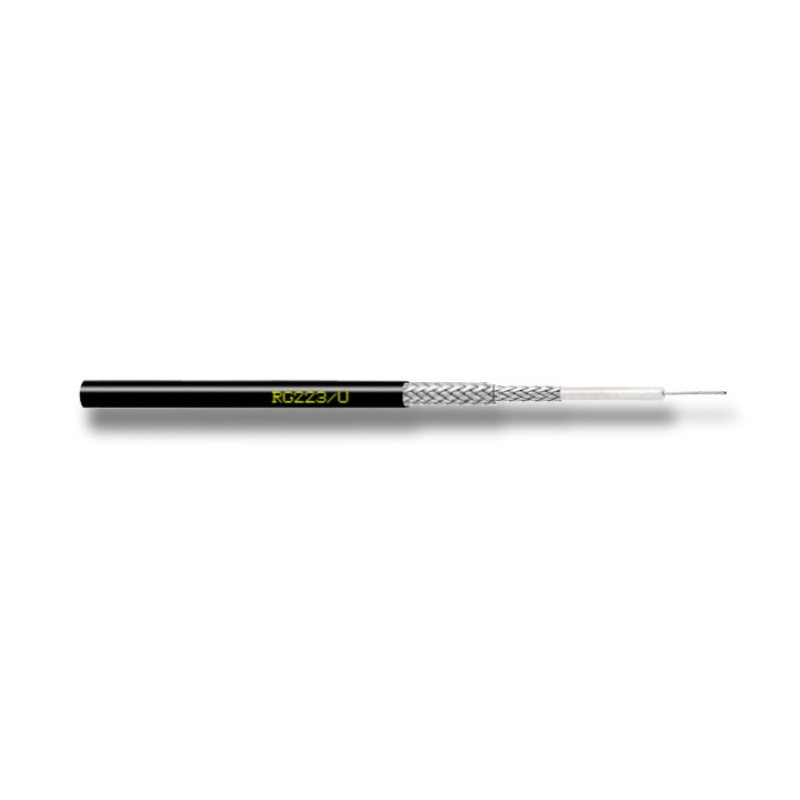

The CAVEL RG223/U cable is a premium high-frequency coaxial cable from the legendary Italian manufacturer Italiana Conduttori. Thanks to double shielding and the use of silver-plated copper for the central conductor and both braids, this cable ensures minimal signal loss and maximum interference protection even at ultra-high frequencies up to 6 GHz. It is an ideal solution for professional radio communication systems where reliability and parameter stability are critically important.
Purpose
-
Construction of professional radio communication and telecommunication networks.
-
Connection of antenna-feeder devices in the frequency range up to 6000 MHz.
-
Use in measuring apparatus and laboratory equipment.
-
Indoor Installation according to MIL-C-17 standard.
Specifications
| Characteristic | Value |
| Characteristic Impedance | 50 Ohm |
| Center Conductor Material | Silver-plated copper (CuAg) |
| Center Conductor Diameter | 0.90 mm |
| Dielectric Material | Solid Polyethylene (PE) |
| Dielectric Diameter | 2.95 mm |
| Shielding | Double Braid (CuAg + CuAg) |
| Braid Coverage | 95% and 96% |
| Outer Jacket | Black PVC (RAL 9011) |
| Outer Cable Diameter | 5.40 mm |
| Operating Temperature | from -20 °C to +70 °C |
| Velocity of Propagation | 66% |
| Total Weight | 55.60 kg/km |
| Minimum Bending Radius (single bend) | 30 mm |
| Minimum Bending Radius (repeated bend) | 60 mm |
Attenuation (at 20°C)
| Frequency (MHz) | Attenuation (dB/100m) | Max. Power (W) |
| 50 | 10.10 | 600 |
| 200 | 19.50 | 280 |
| 470 | 31.00 | 185 |
| 1000 | 47.10 | 120 |
| 3000 | 91.10 | 70 |
| 6000 | 128.70 | 50 |

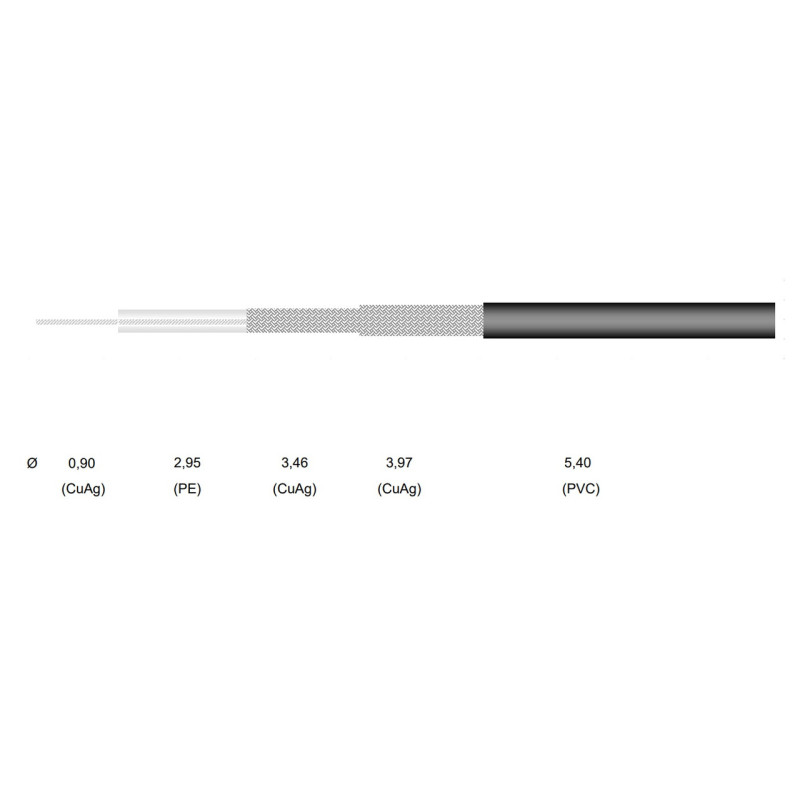

Materials and Construction
-
The center conductor is made of high-purity silver-plated copper for better conductivity.
-
The double-layer braided shield of silver-plated copper provides a shielding effectiveness of over 90 dB.
-
The solid polyethylene dielectric ensures stability of geometric dimensions and impedance.
-
The outer jacket is made of high-quality polyvinyl chloride (PVC), resistant to mechanical stress.
Features and Capabilities
The cable supports high-power signal transmission (up to 850 W at 20 MHz and 50 W at 6 GHz). Thanks to the double silver plating (5 ‰), the cable has ultra-low conductor resistance and excellent return loss (SRL) performance. Class A+ shielding guarantees protection against electromagnetic interference in dense urban environments.
Compatibility
-
Compatible with standard N, BNC, TNC, SMA series connectors for RG-58/RG-223 group cables.
-
Fully compliant with military standard MIL-C-17.
-
Suitable for use with 50-ohm radio stations, repeaters, and antennas.
Advantages
-
100% original product, manufactured in Italy.
-
Double silver plating of conductors to minimize oxidation and losses.
-
Exceptional parameter stability throughout the service life.
-
High interference immunity (Class A+ shielding).
-
Yellow meter marking for easy installation.
Package Contents
-
CAVEL RG223/U Coaxial Cable (length according to order) (1 pc.).
Packaging
-

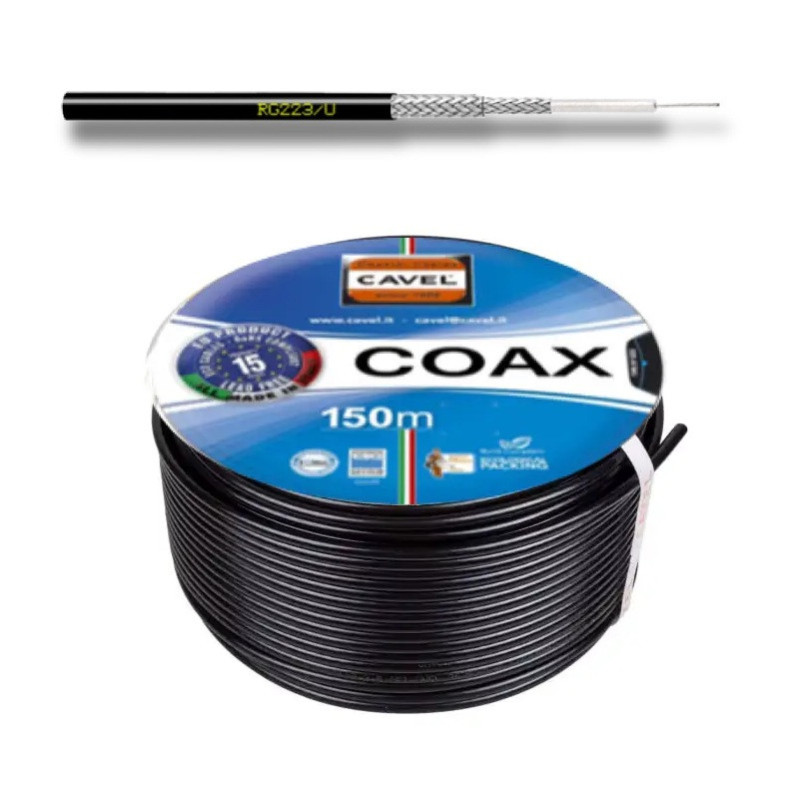

Supplied in original manufacturer's coils.
-
Each coil has protective factory packaging.
-
The jacket is marked with the batch number and length.
Warranty and Service
The cable comes with an official manufacturer's warranty. The product is accompanied by certificates of conformity to MIL-C-17 standards and international technical regulations.
