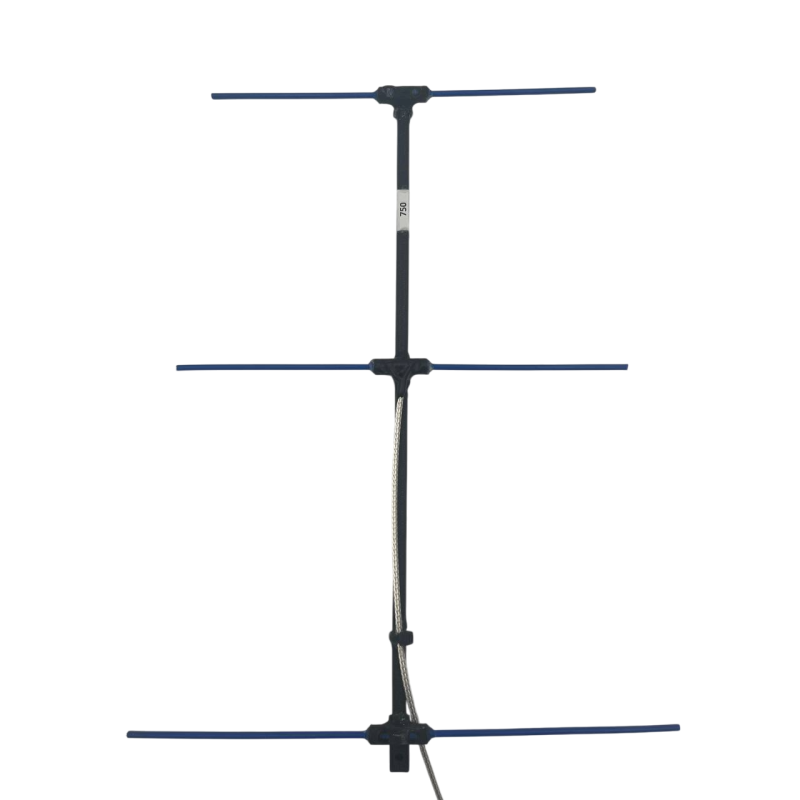

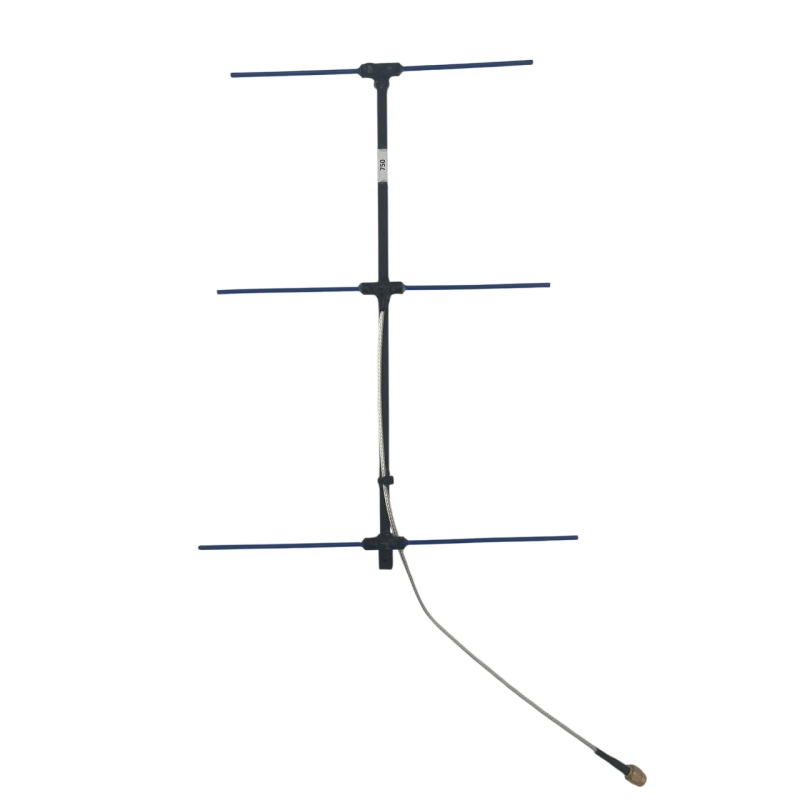

Yagi Antenna 750MHz for Flying Repeaters — SkyReach

The professional Yagi antenna from SkyReach is designed for use with flying repeaters for FPV drones and other radio transmitting devices. The model is optimized for a 750 MHz operating frequency and provides 7.7 dBi gain with an SMA connector, making it a compact and reliable solution for increasing communication range in field conditions.

The antenna is custom-made in the frequency range from 700 to 1100 MHz with a standard bandwidth of 50 MHz, allowing for the selection of the optimal option for specific tasks and regional frequency requirements. Available frequency versions: 700 MHz, 750 MHz, 780 MHz, 800 MHz, 850 MHz, 900 MHz, 950 MHz, 1000 MHz, 1050 MHz.

The lightweight design of the antenna — weight 22 g — minimizes additional load on the aircraft while maintaining high transmission efficiency. The Yagi design provides an elongated radiation pattern and a low standing wave ratio — VSWR no higher than 1.1, which guarantees minimal output power losses and a stable increase in communication range.

Practical characteristics and advantages of this antenna:

• Operating frequency range: 700–1100 MHz (custom-made).
• Bandwidth: 50 MHz.
• Gain: 7.7 dBi.
• Connector: SMA.
• VSWR: no higher than 1.1.
• Weight: 22 g — suitable for lightweight repeaters and drones.
• Increases flight and communication range up to 15 km depending on conditions.

The antenna is perfectly suited for mounting on flying repeaters, external communication modules, or as a replacement/improvement for standard antennas on portable transmitters. Thanks to its narrow directivity, it allows focusing energy in the desired direction, reducing interference and improving signal reception and transmission quality.

Package contents:

• 1. Antenna for your frequency and gain

Product category: Antennas > Yagi Antennas. Manufacturer: SkyReach. The model has proven itself well for use in professional and amateur FPV systems where weight, reliability, and range are important.

If you need an antenna with different frequency parameters or special requirements — individual customization to the frequency within the specified range is possible.
