Product Code: 65423-999
In Stock
19 800 грн.
Buy this product in 1 click:
Main specifications
Compatibility:
FPV Systems, Analog (ATV) and Digital Video, Ground Control Stations
Connection type:
Wired Video Connection (RCA / HDMI)
Connector type:
RCA (analog video), HDMI (digital video), DC 5.5×2.5 (4–6S power)
Equipment Type:
Monitor in a rugged case (FPV / GCS station)
Housing material:
Plastic shockproof waterproof case + 3mm protective plexiglass
All specifications
We will deliver this product:
Payment
Description
***7-10 days lead time for this product

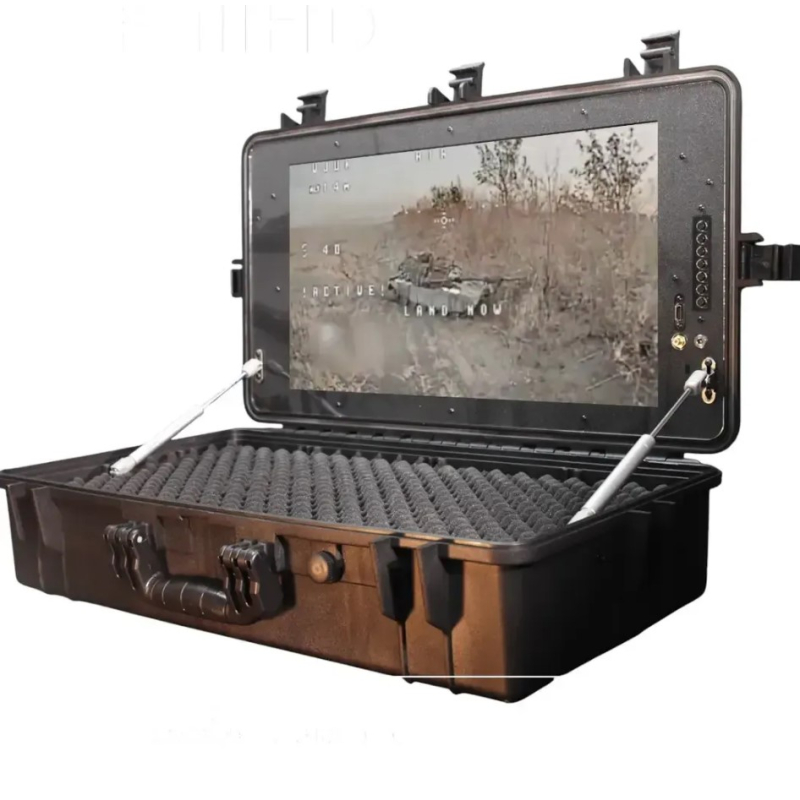

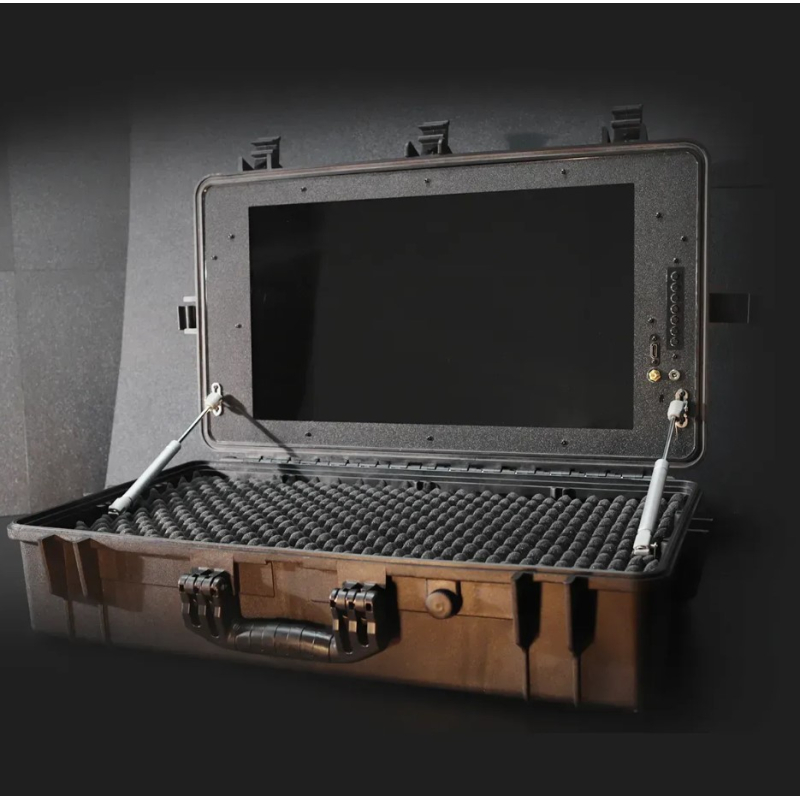

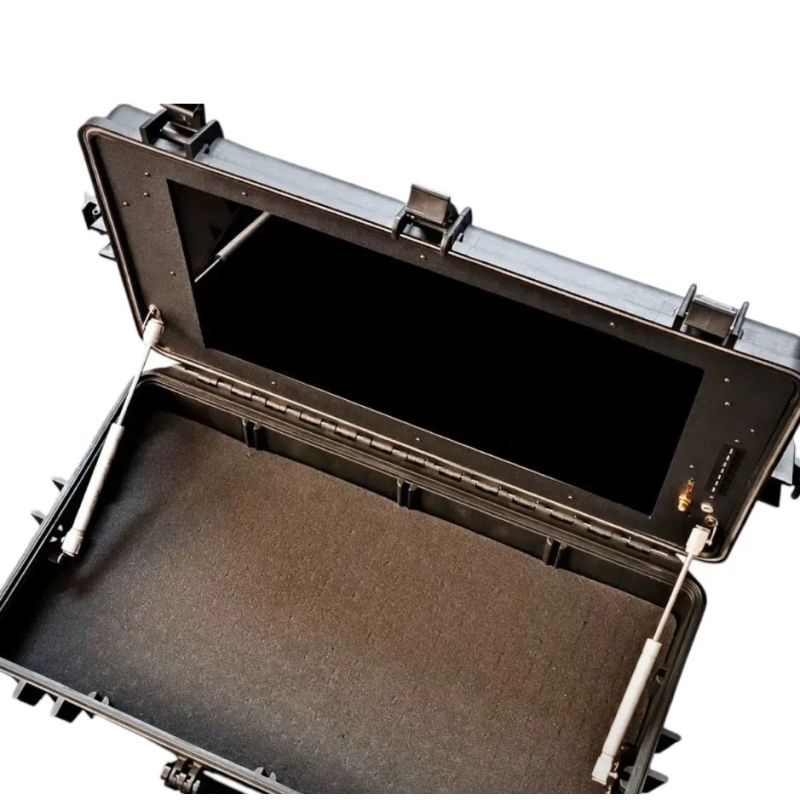

24" FullHD MONITOR analog+digital, suitable for air defense functions
The monitor is designed for manufacturing digital and analog FPV ground control stations. It operates in ATV (analog television) mode and does not have the "blue screen" problem or premature monitor shutdown with a weak signal. The monitor's sensitivity level has been significantly improved hardware-wise. Protected by 3 mm thick plexiglass.
Screen technical specifications
- Screen resolution: 1920x1080
- Screen diagonal: 23
- Backlight: DLED
- Contrast ratio: 1000:1
- Brightness: 200 cd/m²
- Viewing angle: 170x170
- Refresh rate: 60 Hz
- Matrix type: VA
- Matrix manufacturer: LG/Philips/Innolux
Case:
- Plastic, sealed, shockproof

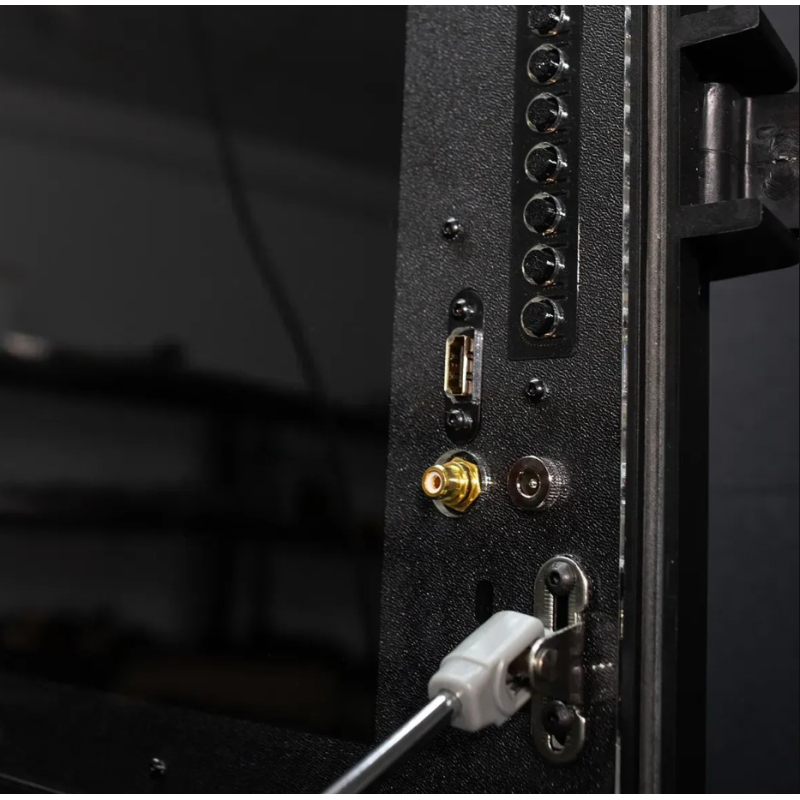

- Connectors:
- RCA - analog video input
- HDMI - digital video input
- DC 5.5*2.5 - 4-6s power
Package contents:
- Monitor in case
- Remote control
- XT60 - 5.5 power cable
Dimensions:
- W - 730
- H - 180
- L - 450
Usable area
- W - 645
- H - 125
- L - 350
Specifications
| Purpose | FPV, Ground stations |
|---|---|
| Encryption present | No |
| Rotary mechanism for ground antenna | No |
| Overall dimensions (L x W x H), mm | 730*450*180 |
| Power supply | Battery powered |
| Monitor | 24" |
| Weight, kg | 10.0 |
| Remote launch control capability | No |
| Product codified | No |
Specifications
Compatibility
FPV Systems, Analog (ATV) and Digital Video, Ground Control Stations
Connection type
Wired Video Connection (RCA / HDMI)
Connector type
RCA (analog video), HDMI (digital video), DC 5.5×2.5 (4–6S power)
Equipment Type
Monitor in a rugged case (FPV / GCS station)
Housing material
Plastic shockproof waterproof case + 3mm protective plexiglass
Kit Contents
Monitor in case, remote control, XT60 – DC 5.5 power cable
Mount type
Integrated Monitor in Case (Ready Mobile Station)
Power Supply
From battery (4–6S)
Purpose
Analog and digital video output for FPV ground control stations and air defense-oriented surveillance systems
Screen size
24" (actual diagonal ≈ 23")
