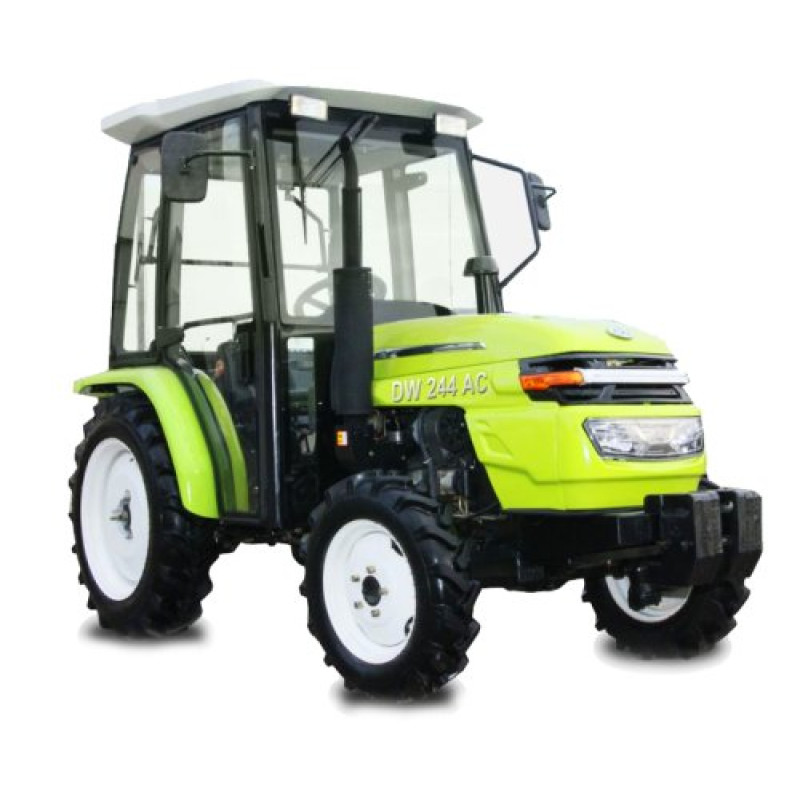

Mini Tractor DW 244 AC — Compact All-Wheel Drive Tractor with Cabin
The DW 244 AC mini tractor from the DW brand is a versatile solution for private households, utility work, and small farms. The model features an insulated enclosed cabin with heating, a soft seat, thoughtful ergonomics, and sensors for monitoring machine status, as well as an audio system for comfortable operator work throughout the day.
Key Advantages and Purpose
Enclosed cabin with heating — ensures comfortable work in cold weather and protection from dust in summer.
Reliable KM385BT diesel engine: three-cylinder, water-cooled, and naturally aspirated direct injection, which increases service life and operational reliability.
24 hp (17.6 kW) power allows for a wide range of tasks — soil cultivation, work with attachments, towing, and transport operations.
All-wheel drive, power steering, and the presence/mention of differential lock in the description (see note below) ensure maneuverability and stability on challenging terrains.
Economical fuel consumption — ≤275 g/kWh, making operation cost-effective.
Engine and Transmission
Engine: diesel, 4-stroke, naturally aspirated, direct injection, KM385BT marking, three vertically arranged cylinders. Engine displacement — 1531.33 cc; cylinder bore/piston stroke — 85 / 95 mm. Nominal crankshaft speed — 2350 rpm. Starting system: electric starter. Cooling system — water-cooled, fan drive — V-belt transmission.
Engine power: 17.6 kW/24 hp. Nominal traction force — 5.8 kN. Nominal engine oil consumption — 2.31 g/kWh. Fuel consumption — ≤ 275 g/kWh.
Gearbox: (3 + 1) x 2. Recommended transmission oil types: Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90. Clutch: dry, single-disc, constantly closed type. Final drive — direct.
Power Take-Off, Steering, and Brake Control
Power Take-Off (PTO): rear, splined. The description states that the PTO rotates in two modes — 540 and 1000 rpm; the technical table lists PTO speed as 540 rpm. Steering — hydraulic (power steering is available). Brakes — drum type. The description mentions a differential lock, while the table field "Differential lock" states "No" — this should be considered when selecting configuration and consulting with a manager.
Hydraulics, Electrics, and Additional Systems
The hydraulic system is equipped with a gear pump, number of hydraulic outlets — 1. There is a trailer connector (socket). It is recommended to adhere to service intervals and use recommended transmission oils to extend the service life of the units.
Dimensions, Tires, Running Characteristics
Wheelbase: 1600 mm. The description states adjustable front/rear wheel track: front — 1050–1250 mm, rear — 1080–1380 mm; the table shows "Front / rear wheel track: 980 mm". Front tire size: 6.00-16; rear tire size: 9.50-24. Minimum turning radius without brakes — 3 m; with brakes — 2.3 m.
Forward speed: 2.11-32.19 km/h. Reverse speed: 1.68-7.75 km/h. Maximum lifting capacity of the hitch mechanism: 420 kg.
Overall dimensions: 29701240x2300 mm. Tractor weight: 1540 kg.
Repair, Maintenance, Operational Volumes
Fuel tank capacity — 17 L. Engine crankcase capacity — 6.6 L; gearbox and rear axle crankcase capacity — 11 L; front axle crankcase capacity — 4 L; engine cooling system capacity — 6 L. For the longevity of the equipment, it is recommended to use recommended oils and adhere to the maintenance schedule.
Where to Buy and What Additional Services Are Available
Flash Army online store offers the DW 244 AC mini tractor with a cabin, manager consultation, and assistance in selecting attachments. Delivery across Ukraine is free of charge by the company. Every buyer receives tractor oil as a gift. Installment payment through a verified partner bank is possible upon request. If you have any questions, please contact a manager by phone listed on the Flash Army website.
Technical Specifications
| Engine Model: | KM385BT |
| Engine Power: | 17.6 kW/24 hp |
| Engine Displacement: | 1531.33 cc |
| Starting System: | Electric Starter |
| Cooling System: | Water-cooled |
| Cylinder Bore / Piston Stroke: | 85 / 95 mm |
| Fuel Consumption: | ≤ 275 g/kWh |
| Engine Type: | 4-stroke, direct injection without turbocharger |
| Fuel: | Diesel |
| Number and Arrangement of Cylinders: | 3, vertical |
| Cooling System Fan Drive: | V-belt transmission |
| Nominal Traction Force: | 5.8 kN |
| Nominal Engine Crankshaft Speed: | 2350 rpm |
| Nominal Engine Oil Consumption: | 2.31 g/kWh |
| Gearbox: | (3 + 1) x 2 |
| Oil Type in Gearbox and Rear Axle: | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission) |
| Differential Lock: | No |
| Brakes: | Drum type |
| Steering: | Hydraulic |
| Final Drive: | Direct |
| Clutch: | Dry, 1-disc, constantly closed type |
| Power Take-Off (PTO): | Rear, splined |
| PTO Speed: | 540 rpm |
| Hydraulic System Pump Type: | Gear pump |
| Fuel Tank Capacity: | 17 L |
| Engine Crankcase Capacity: | 6.6 L |
| Gearbox and Rear Axle Crankcase Capacity: | 11 L |
| Front Axle Crankcase Capacity: | 4 L |
| Engine Cooling System Capacity: | 6 L |
| Number of Hydraulic Outlets: | 1 |
| Trailer Connector (Socket): | Yes |
| Power Steering: | Yes |
| Wheelbase: | 1600 mm |
| Front / Rear Wheel Track: | 980 mm |
| Front Tire Size: | 6.00-16 |
| Rear Tire Size: | 9.50-24 |
| Minimum Turning Radius without Brakes: | 3 m |
| Minimum Turning Radius with Brakes: | 2.3 m |
| Forward Speed: | 2.11-32.19 km/h |
| Reverse Speed: | 1.68-7.75 km/h |
| Maximum Lifting Capacity of Hitch Mechanism: | 420 kg |
| Overall Dimensions: | 29701240x2300 mm |
| Weight: | 1540 kg |
