DW 244 AN Mini Tractor from DW — Versatile 24 HP for the Farm
The DW 244 AN mini tractor from the DW brand is a reliable and multifunctional machine in the Tractors > Mini Tractors category, designed for soil preparation, cultivation, and plowing on small plots, as well as for municipal and construction work. Its compact dimensions are combined with powerful technical features, making this model convenient for both experienced farmers and beginners.

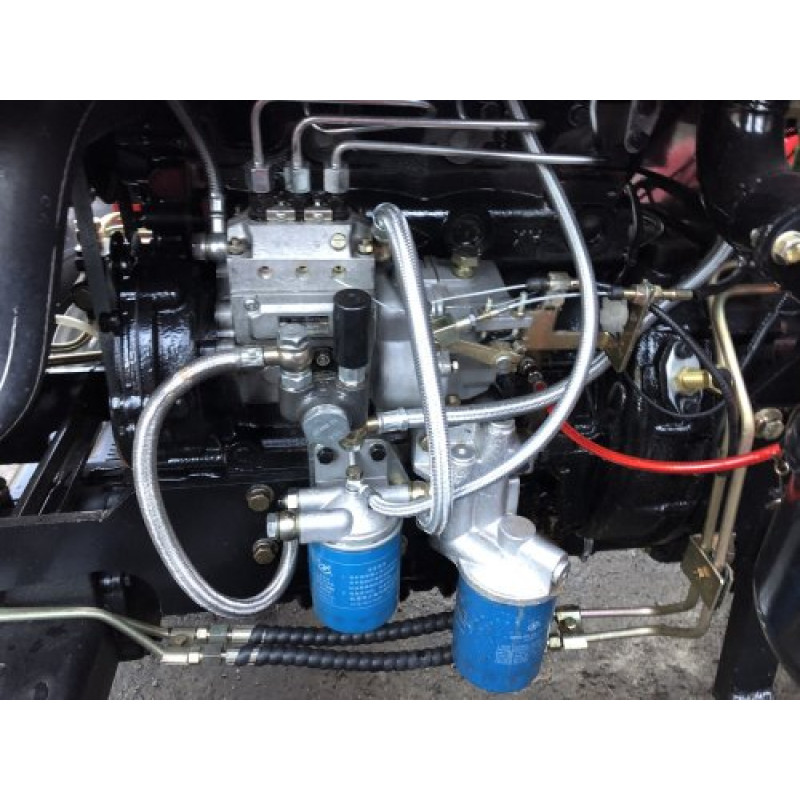

Engine and Start: Four-stroke diesel engine with direct injection, three vertically arranged cylinders. Power is 24 HP (17.65 kW), displacement is 1530 cm3, nominal crankshaft speed is 2350 rpm. Starting is via electric starter, with manual start available as a backup option.
Cooling and Comfort: A closed liquid cooling system with forced circulation ensures stable operation in hot weather and extends the unit's service life. Operator comfort is enhanced by a spring-loaded seat, side-mounted gear lever, high-quality rearview mirrors, and a powerful lighting system for working in the dark.
Key Advantages of DW 244 AN
- All-wheel drive: 4x4 wheel formula for confident traction on difficult terrain.
- Efficient transmission: (4+1)x2 gearbox with rear differential lock for improved off-road capability.
- Reliable clutch: dry 1-disc constantly closed type, ensuring durability and ease of maintenance.

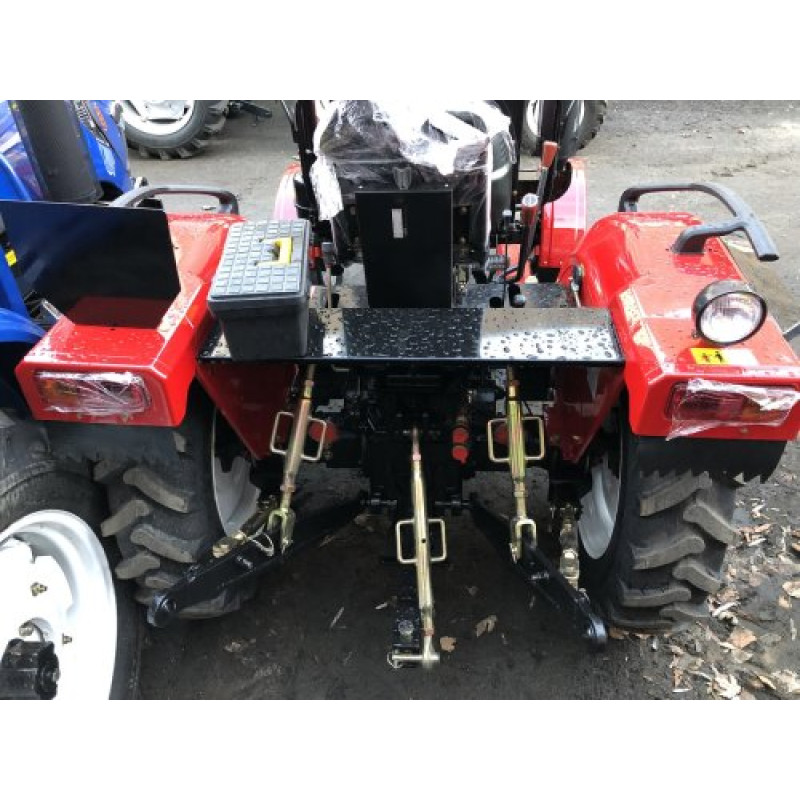

- Rear splined power take-off (PTO) shaft with speeds of 540 / 720 rpm for connecting a wide range of attachments.
- Power steering and gear pump (NSh) for attachment drive and power steering operation enhance maneuverability and ease of use.
- Minimum ground clearance — 330 mm, wheelbase — 1760 mm — convenient for working on uneven terrain.
The model is distinguished by its versatility: it is suitable for soil cultivation, sowing on small plots, transporting soil and cargo, as well as for municipal work. Thanks to the ability to connect various mounted and trailed equipment, the DW 244 AN becomes a multifunctional tool for a farmer or enterprise.
Buy DW 244 AN in Ukraine: Our online store is an official representative of DW equipment in Ukraine, therefore guaranteeing attractive prices, official warranty, and post-warranty service. We organize direct delivery by our own courier service without additional payment: a specialist will deliver the equipment, provide consultation, and if necessary, demonstrate the mini tractor in operation. To buy DW 244 AN, place an order on the website or contact a manager by phone.
Specifications:
| Engine power, HP (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, with direct injection |
| Number and arrangement of cylinders | 3, vertical |
| Engine starting system | electric starter (manual start available) |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Engine displacement, cm3 | 1530 |
| Nominal engine crankshaft speed, rpm | 2350 |
| Nominal traction force, kN | 7.2 |
| Gearbox (КП) | (4+1)x2 |
| Rear differential lock | Yes |
| Clutch | dry 1-disc constantly closed type |
| Main drive | direct |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump (NSh) for attachment drive / NSh for power steering operation |
| Power take-off (PTO) shaft speed, rpm | 540 / 720 |
| Minimum ground clearance, mm | 330 |
| Wheelbase, mm | 1760 |
| Tire size | front 6.50-16, rear 9.50-24 |
| Fuel tank capacity, L | 21 |
| Engine crankcase volume, L | 3 |
| Gearbox and rear axle crankcase volume, L | 11 |
| Front axle crankcase volume, L | 3 |
| Trailer connector (socket) | + |
| Power steering | + |
| Number of hydraulic outlets | 1 |
| Spring-loaded seat | + |
| Side-mounted gear lever | + |
| Rear weights | + |
| Curb weight, kg | 1328 |
The combination of a powerful diesel engine, all-wheel drive, and compact dimensions makes the DW 244 AN an optimal choice for those who need a versatile, easy-to-operate, and reliable machine for a household, farm, or municipal enterprise.
