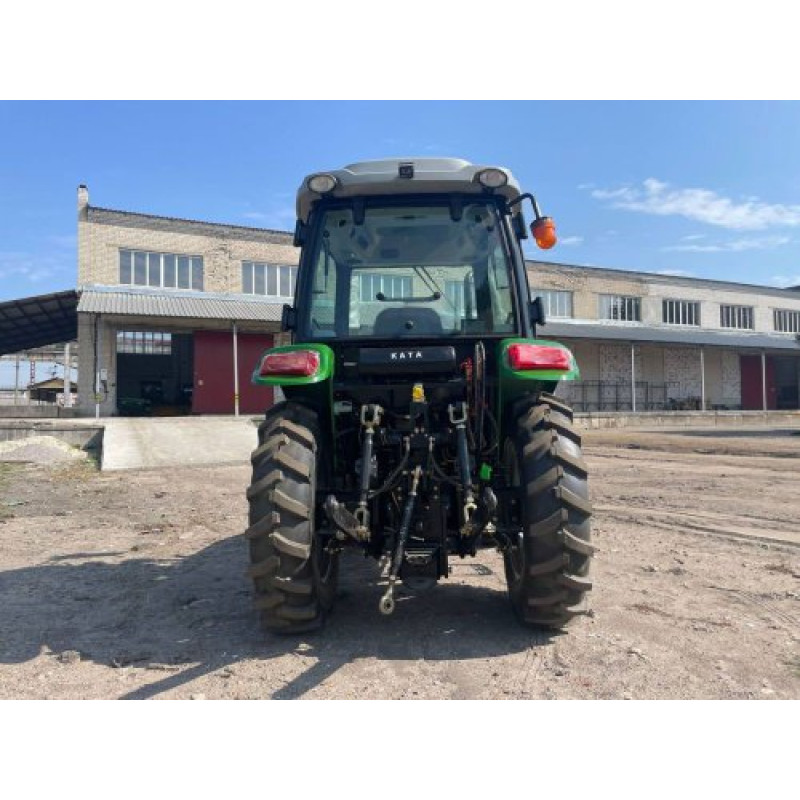

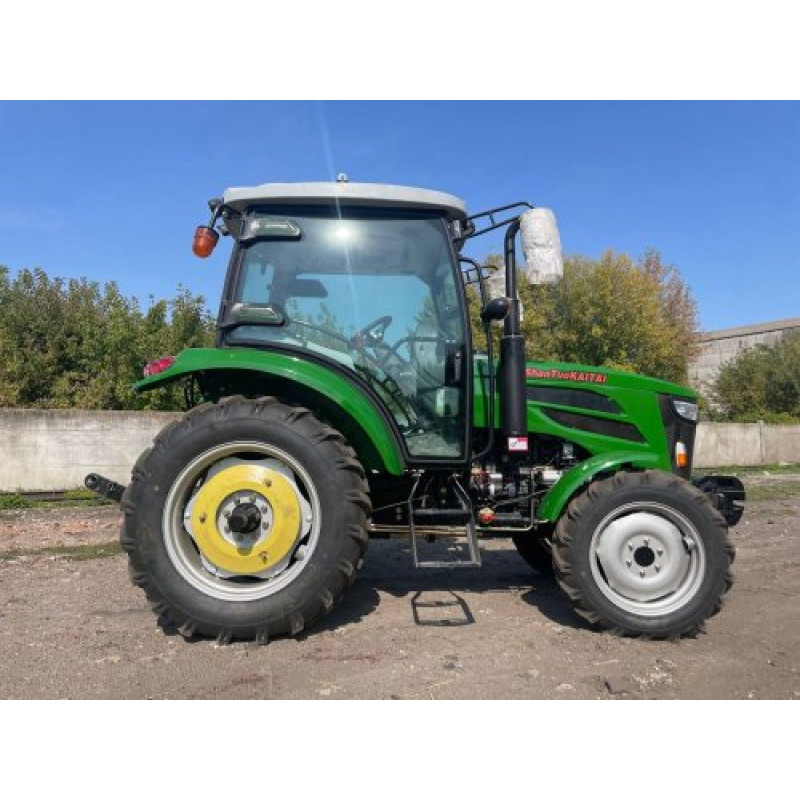

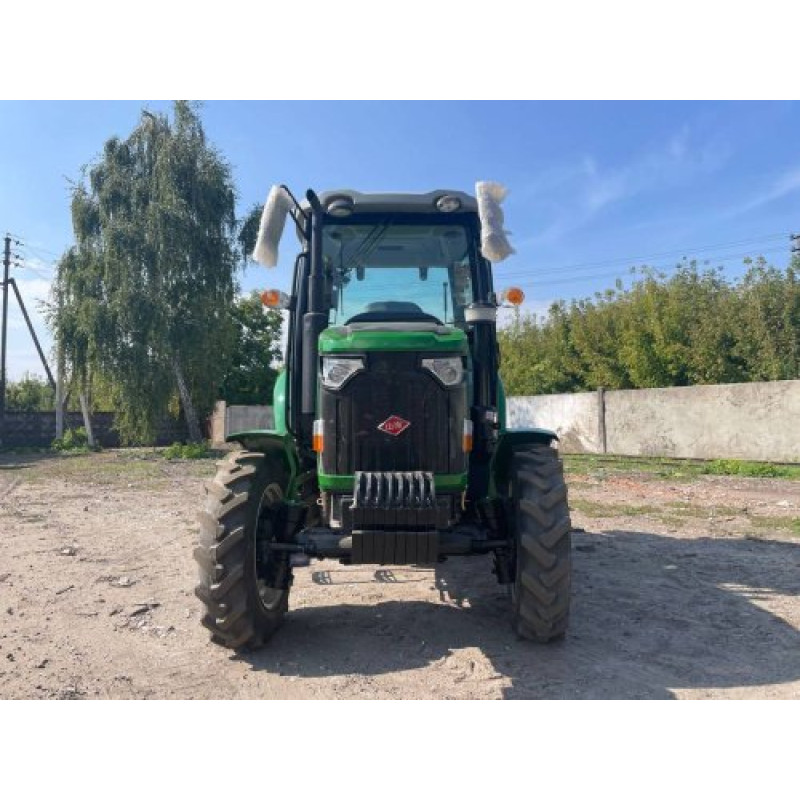

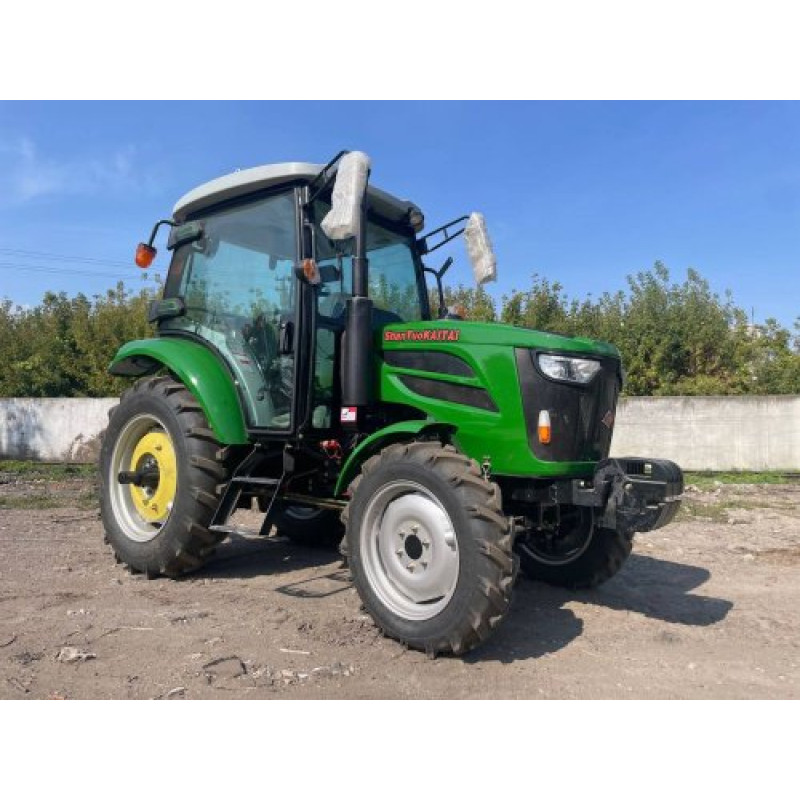

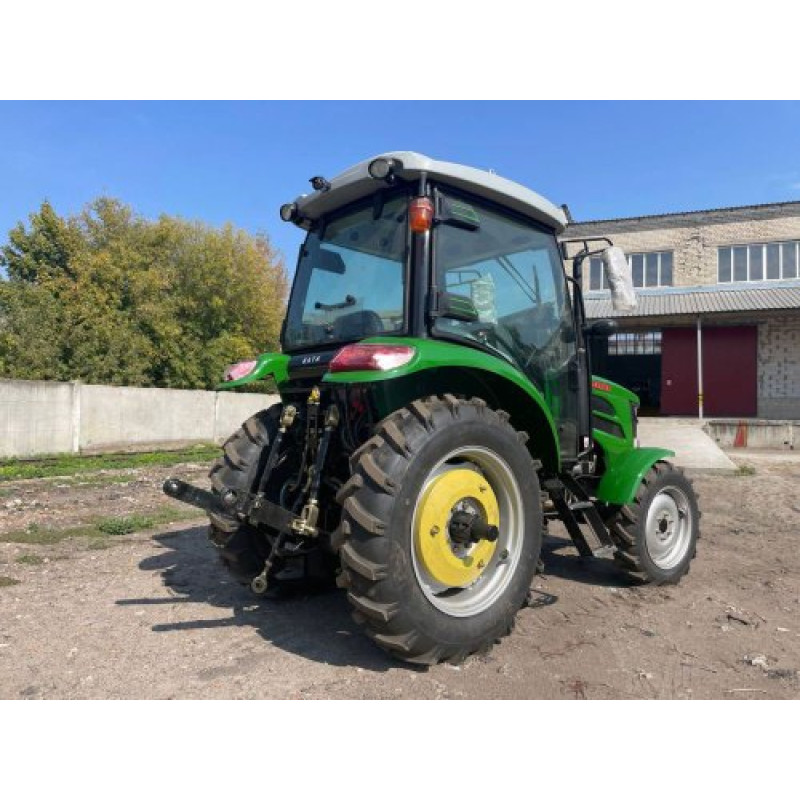

The KATA KB 504 mini tractor from the manufacturer KATA is a powerful and reliable 50 hp (33.1 kW) machine designed for a wide range of agricultural, municipal, and construction tasks. The model features 4x4 all-wheel drive and is equipped with a A498BT-6A four-stroke diesel engine with four vertically arranged cylinders, an electric starter for easy starting in any weather conditions, and a closed liquid cooling system with forced coolant circulation. The fan drive is implemented via a V-belt transmission, ensuring stable operation under load.
The KATA KB 504 has an engine displacement of 3170 cm3, a nominal fuel consumption of no more than ≤245 g/kWh, and a nominal traction force of 13.5 kN. A reliable transmission with a 12+12 gearbox and rear differential lock enhances off-road capability and maneuverability on challenging terrains. The clutch is a dry, 2-disc, constantly closed type; the main drive is direct. The steering is hydraulic, and the brakes are located on the secondary shaft of the gearbox and are drum-type.
Specifications:
| Engine power, hp (kW) | 50 (33.1) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, A498BT-6A |
| Number and arrangement of cylinders | 4, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Cooling system fan drive | V-belt transmission |
| Engine displacement, cm3 | 3170 |
| Nominal engine fuel consumption, g/kWh | ≤245 |
| Nominal traction force, kN | 13.5 |
| Gearbox (GP) | 12+12 |
| Rear differential lock | + |
| Clutch | dry, 2-disc, constantly closed type |
| Main drive | direct |
| Steering | hydraulic |
| Brakes | on the secondary shaft of the gearbox, drum brakes |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump (NSH) for hitch drive / NSH for power steering operation |
| Hitch lifting capacity | 2500 kg |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Wheel track | front 1300, rear 1270-1480 |
| Tire size | front 8.30-20, rear 13.2-24.8 |
| Ground clearance, mm | 305 |
| Number of hydraulic outlets | 2 |
| Trailer connector (socket) | + |
| Compressor | + |
| Dimensions LхWхH mm | 3500х1670х2450 |
| Curb weight, kg | 2880 |
Additional advantages of the model: a rear splined PTO shaft with 540/1000 rpm modes allows connecting a wide range of mounted and trailed equipment; powerful hydraulics with a lifting capacity of 2500 kg ensure efficient operation with heavy equipment; the presence of a trailer socket and an integrated compressor increase the versatility of the machinery. The unit's design provides convenient operation and maintenance, and its dimensions of 3500x1670x2450 mm make the tractor compact for storage and maneuvering.
The KATA KB 504 mini tractor is ideal for farms, municipal infrastructure maintenance, work on homestead plots, and in industries where reliable traction, a wide range of gears, and high lifting capacity are required. By choosing the KATA KB 504, you get a balanced machine with a powerful diesel engine, 4x4 all-wheel drive, and a well-designed hydraulic system.
Other important data: brand — KATA; category — Tractors > Mini Tractors; model — KATA KB 504 Mini Tractor.
