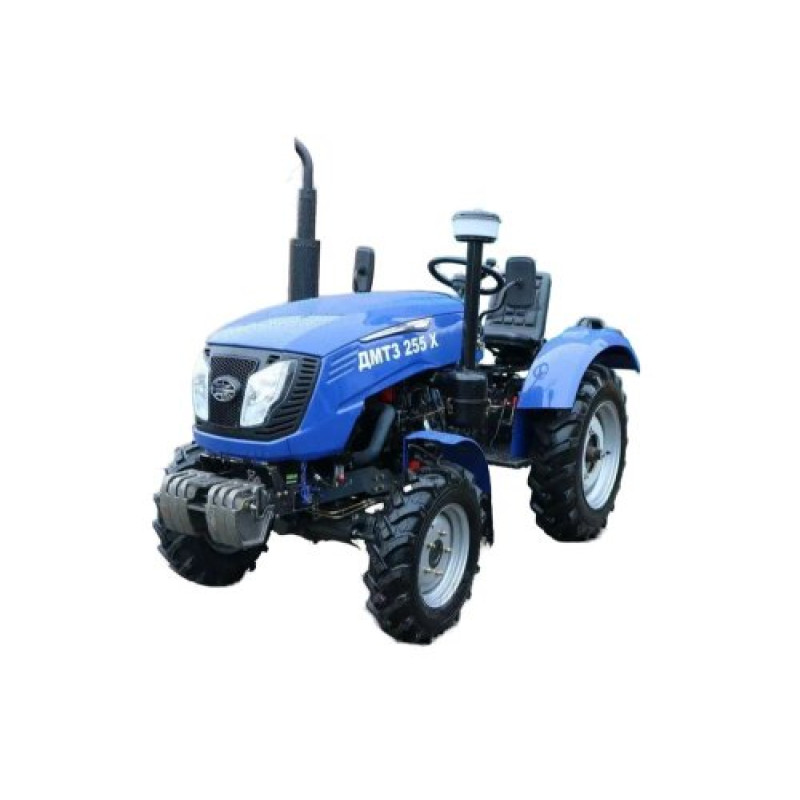

Mini Tractor DMTZ 255X
Brand: DMTZ. Category: Tractors > Mini Tractors.
The DMTZ 255X mini tractor is a compact and durable unit designed for small and medium-sized farms, municipal work, and private use. This versatile solution combines a reliable diesel engine, all-wheel drive, and convenient dimensions for working in confined areas.
Engine and Technical Solutions: The tractor is equipped with a three-cylinder, four-stroke diesel engine with direct fuel injection, no turbocharging, and liquid cooling. The engine displacement is 1532 cm3, and its power is 24 hp (17.6 kW). The engine's structural weight is 234 kg, cylinder diameter is 85 mm, and piston stroke is 90 mm. This ensures durability, stable operation under load, and economical fuel consumption.
Running Characteristics and Transmission: The mini tractor features 4x4 all-wheel drive and a mechanical, non-synchronized gearbox with a (3+1)x2 gear configuration, allowing for precise speed and traction force selection. The clutch is a single-disc dry type. The power take-off (PTO) shaft operates at 540 rpm, making the unit compatible with a wide range of mounted and trailed equipment.
Dimensions and Wheelbase: The wheelbase is 1580 mm, overall machine dimensions are 3200x1360x1800 mm, and ground clearance is 340 mm. This geometry ensures good stability and maneuverability even on uneven terrain.
Wheels and Operating Volumes: Wheel sizes: front — 6.00x14, rear — 9.50x20. Engine oil capacity — 5 L, engine cooling system capacity — 10 L, fuel tank capacity — 20 L. These indicators simplify maintenance and work planning in the field.
Areas of Application: The DMTZ 255X is ideal for soil preparation and sowing in small areas, cultivating gardens and vineyards, mowing grass, mobile and municipal work, as well as for working with mounted implements: sprayers, mowers, plows, and other equipment. The combination of compactness, all-wheel drive, and reliable diesel power makes this mini tractor a versatile choice for farm owners who value productivity without excessive dimensions.
Technical Specifications
| Engine Type | Three-cylinder diesel, four-stroke, with direct fuel injection, non-turbocharged, liquid-cooled |
| Engine Displacement, cm3 | 1532 cm3 |
| Engine Power, hp and kW | 24 hp or 17.6 kW |
| Number of Engine Cylinders | 3 |
| Cylinder Diameter | 85 mm |
| Piston Stroke | 90 mm |
| Engine Structural Weight, kg | 234 kg |
| Wheelbase, mm | 1580 mm |
| Overall Dimensions, mm | 3200x1360x1800 mm |
| Ground Clearance, mm | 340 mm |
| Drive Type | 4x4 |
| Transmission Type | Mechanical, non-synchronized |
| Number of Gears (forward/reverse) | (3+1)x2 |
| Clutch | Single-disc dry |
| Power Take-Off (PTO) Shaft, rpm | 540 |
| Front Wheel Size | 6.00x14 |
| Rear Wheel Size | 9.50x20 |
| Engine Oil Capacity, L | 5 |
| Engine Cooling System Capacity, L | 10 |
| Fuel Tank Capacity, L | 20 |
The DMTZ 255X mini tractor offers a balance between power and compactness, ease of maintenance, and wide application possibilities, making it an excellent choice for farm owners and municipal services.
