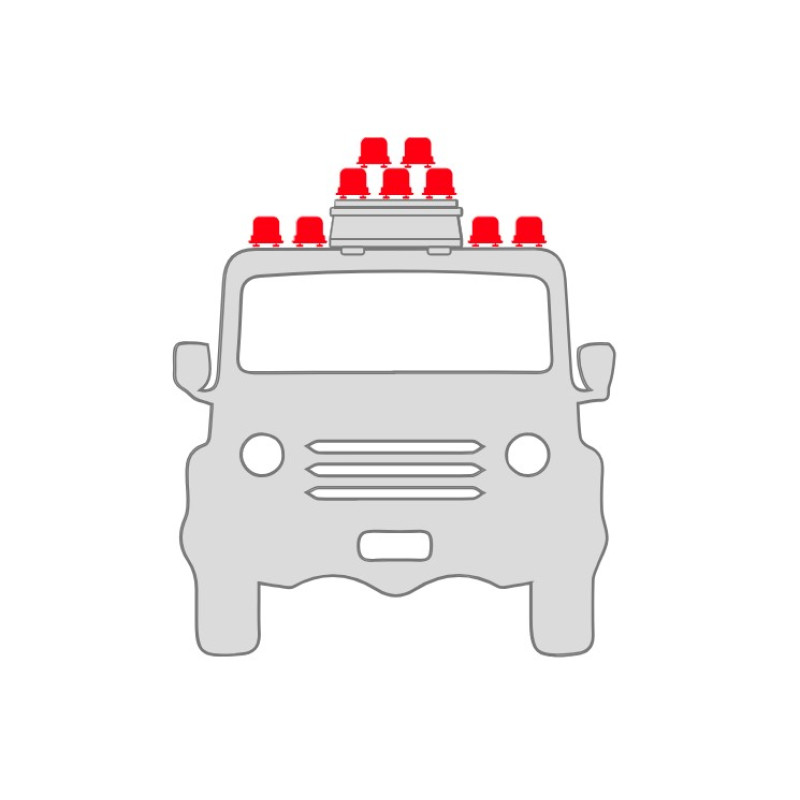

Lokki anti-drone EW system for vehicles is a dome-shaped vehicle-mounted short-range EW complex designed to counter FPV drones. The complex is housed in a protected box that can be mounted on the roof of a car or other vehicle.
This EW jammer for the Armed Forces of Ukraine blocks frequencies in the 200–5850 MHz range at a distance of up to 500 meters, effectively jamming reconnaissance drones or FPV kamikaze drones. It includes a control panel for quick power on/off and mode switching.
This EW dome is an ideal solution for mobile protection of equipment and vehicles. It is already used for frontline defense, object protection, and convoy escort.

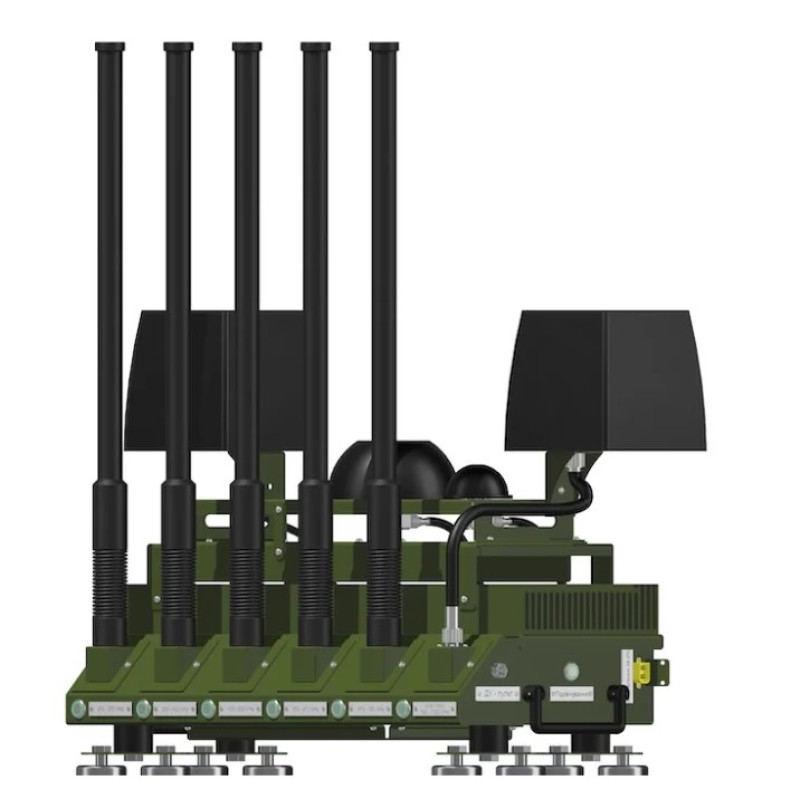

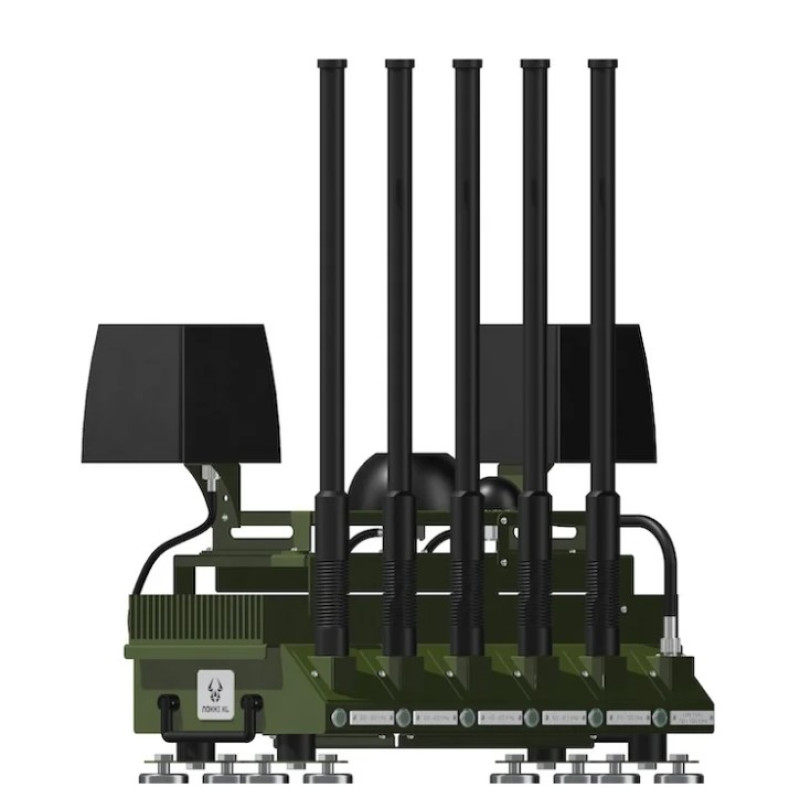

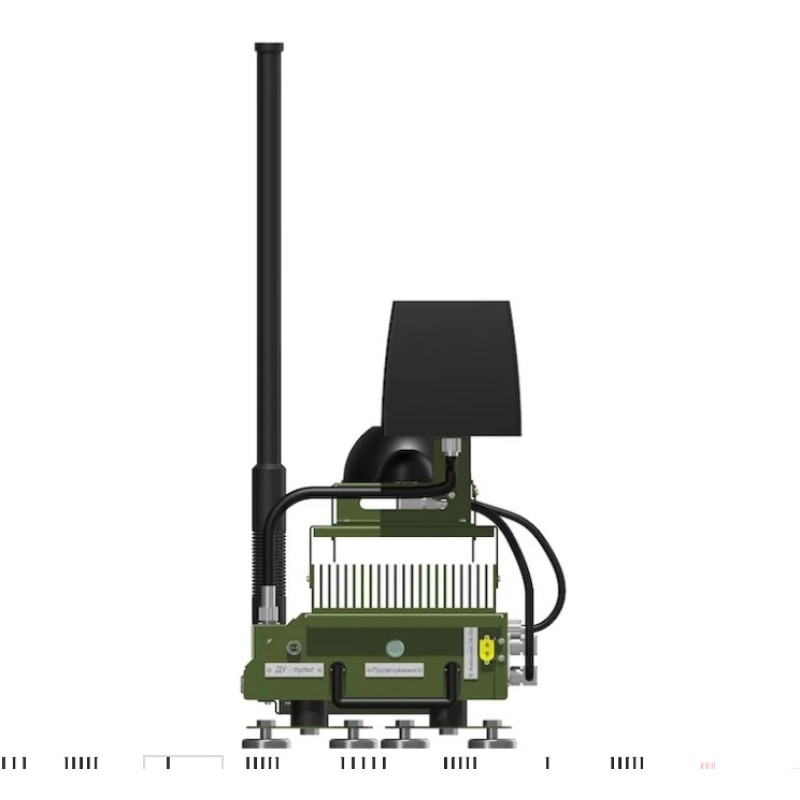

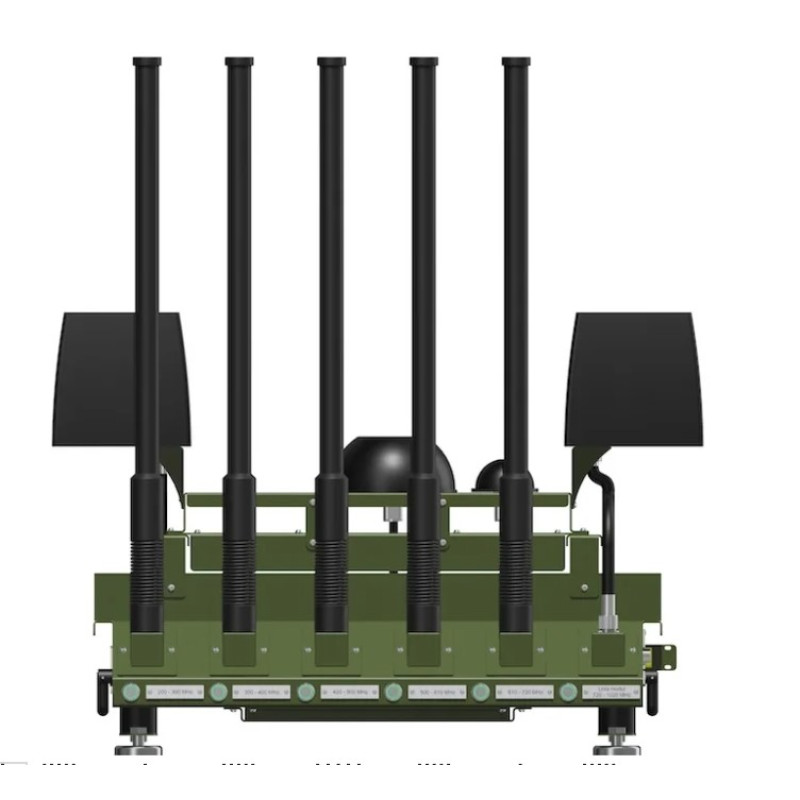

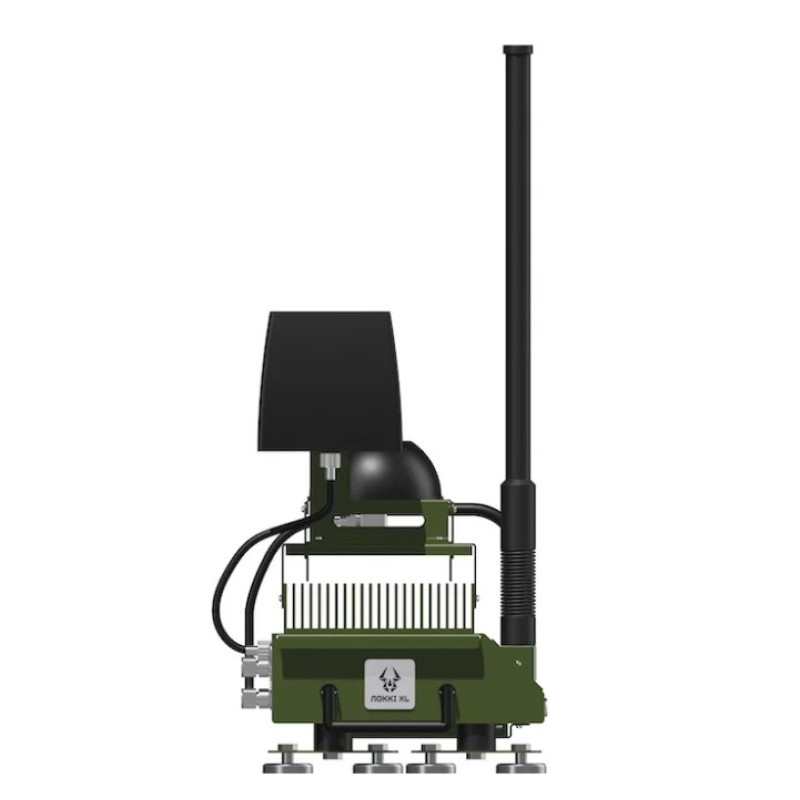

Lokki XL EW complex with 9 antennas – mobile dome anti-drone system for the Armed Forces of Ukraine
The Lokki XL EW complex with 9 antennas is a modern mobile dome-type electronic warfare system designed for military use. Thanks to six omnidirectional antennas, the system provides 360-degree coverage and effective UAV suppression on all main frequencies up to 5.85 GHz.
- Mounts on any vehicle
- Remote control operation
- Can operate autonomously
- Integrates into a general protection system
- Effective against reconnaissance and attack drones
The complex is ideal for the Armed Forces of Ukraine, mobile groups, headquarters, and trenches. It is a reliable solution for suppressing enemy drones, helping to protect military positions and critical infrastructure.
Technical advantages:
9 powerful antennas
Dome placement for maximum coverage
Frequency range: up to 5850 MHz
Compatibility with various types of transport
Supports autonomous operation
Purpose:
EW for the Armed Forces of Ukraine
Trench EW
Vehicle-mounted dome EW
Short-range anti-drone jammer
Technical specifications of the Lokki 9 anti-drone EW complex
- From 100 to 5850 MHz
Any available bands can be selected: 200-300 MHz, 300-400 MHz, 400-500 MHz, 500-610 MHz, 610-720 MHz, 720-840 MHz, 840-950 MHz, 950–1050 MHz, 1050–1200 MHz, 1200–1350 MHz, 1350–1500 MHz, 2400-2500 MHz, 5150-5350 MHz, 5725-5850 MHz - 50 W per antenna
Total output power. For each antenna (if 3 antennas, then 50W * 3 = 150W). 3 to 5 antennas can be installed. - 500 m
Effective operating distance. - up to 500 W
Power - AC 110-240V or DC 12V-24V
Power supply - -25 - +65 C
Operating temperature - 47dBm
Average output power - 9.5 kg
Kit weight (housing + antennas) - GaN technology
New GaN semiconductor technology. Better efficiency, less heat generation, and smaller size. - Dual active
Cooling - Reverse polarity
Reverse polarity protection - Ukraine
Manufacture

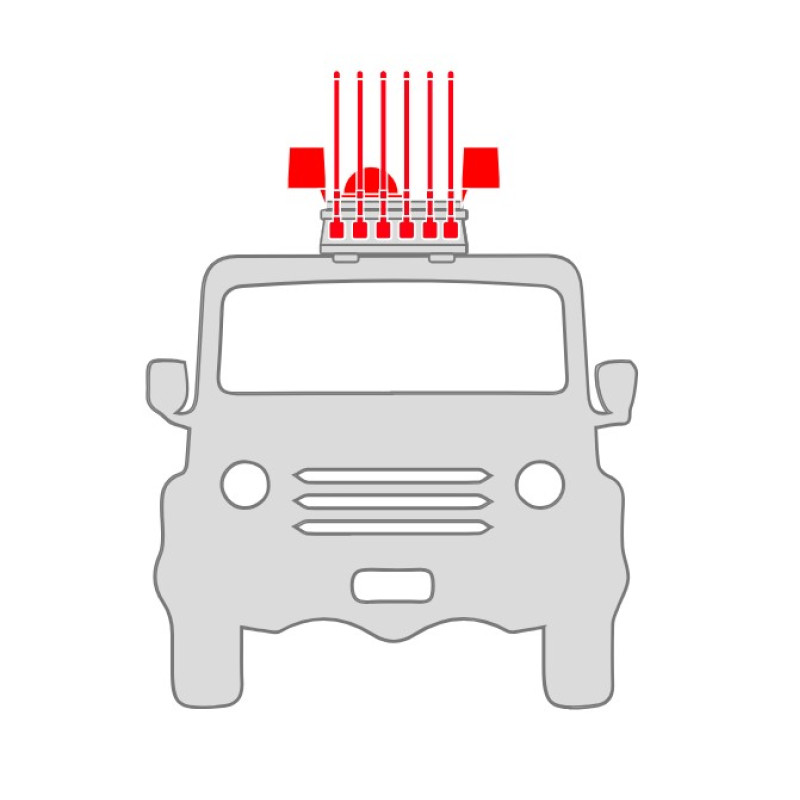

Lokki XL dome EW kit with 9 antennas — EW jammer for vehicles
- 9 antennas
The number of antennas can be selected depending on needs. Any of the possible bands can be selected for each antenna. - Control panel
Power control panel, which can be installed in the vehicle cabin — 1 pc. - Power cable
Cable for connection to the onboard network — 1 pc. - Lokki complex
Assembled complex — 1 pc. - Documentation
Passport and user manual — 1 pc.
