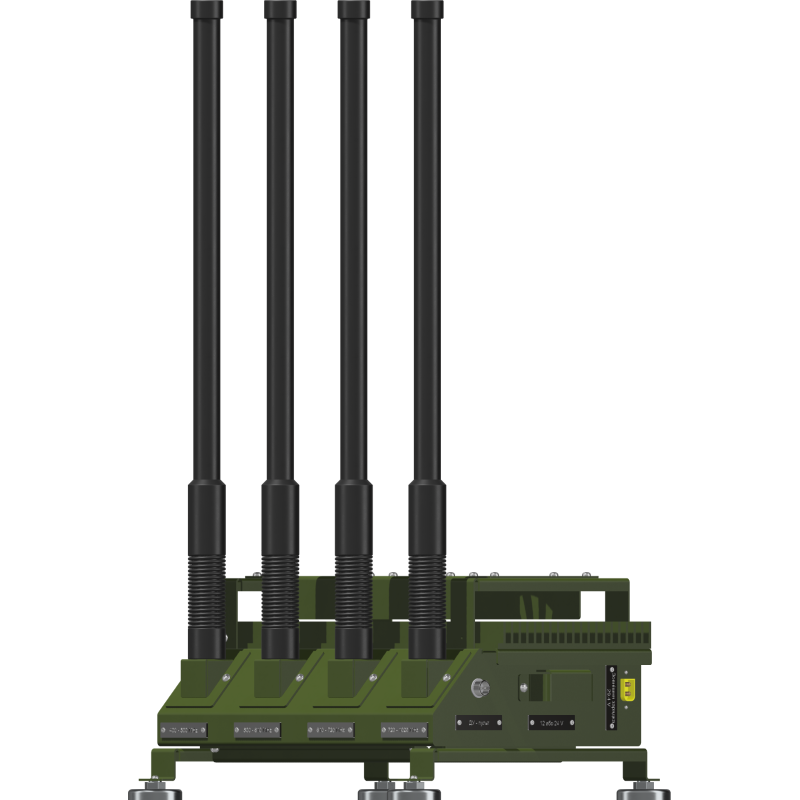

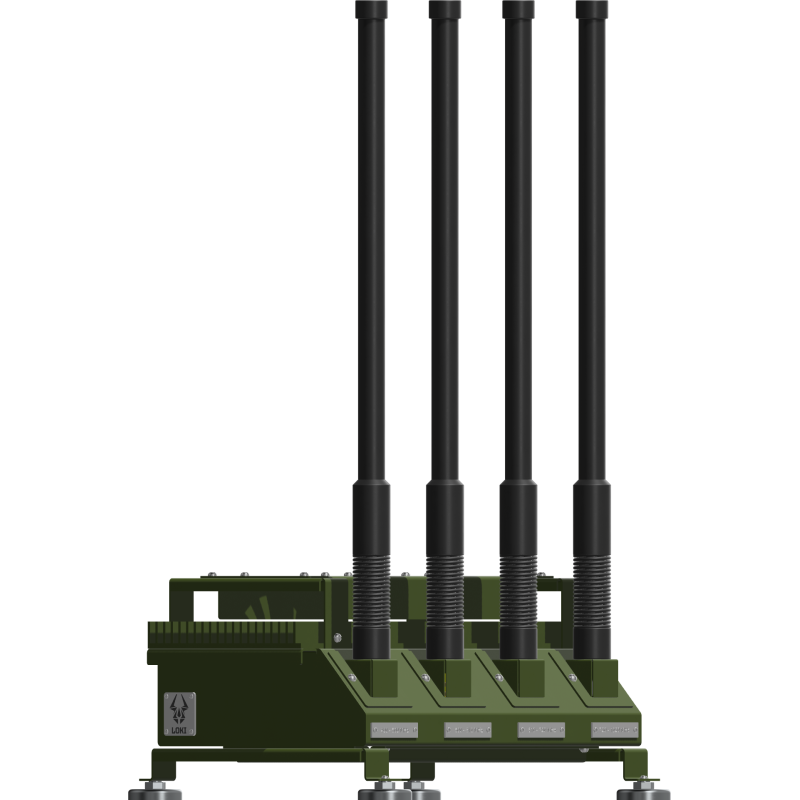

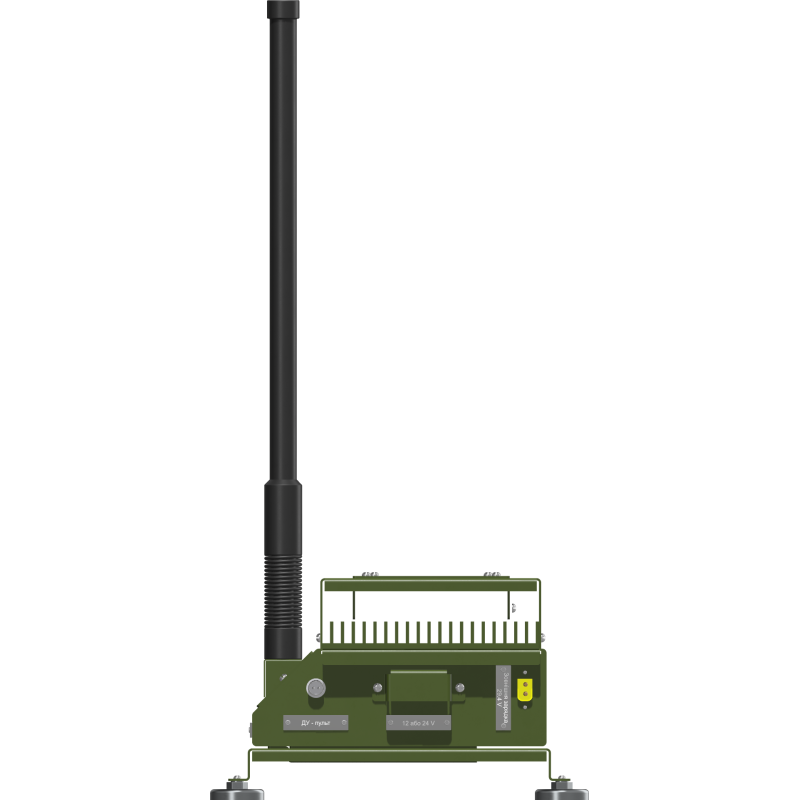

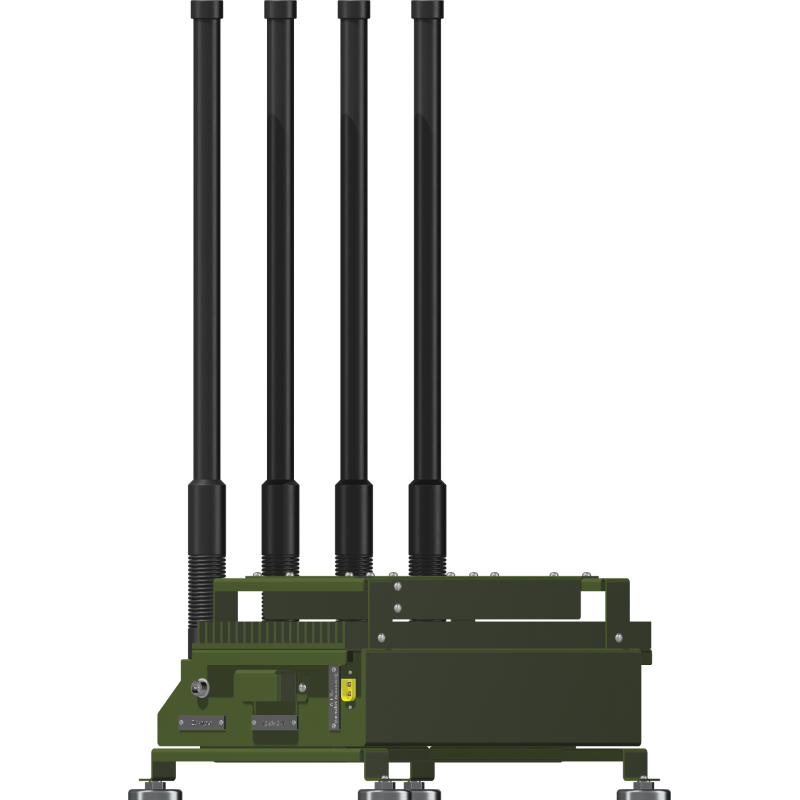

Loki-5 - Vehicle EW Jammer with Five Antennas
The Loki-5 model is a mobile electronic warfare system for vehicle installation, designed to suppress radio signals across a wide frequency range. Brand: Loki; manufacturer: Asgard Defence Technologies; type: EW jammers (category: EW jammers > Vehicle EW jammers). The system is supplied pre-assembled and ensures quick installation and configuration for specific operator tasks.
Key Features
- Operating range: 200 to 5850 MHz. Selectable bands: 200-300 MHz, 300-400 MHz, 400-500 MHz, 500-610 MHz, 610-720 MHz, 720-840 MHz, 840-950 MHz, 950–1050 MHz, 1050–1200 MHz, 1200–1350 MHz, 1350–1500 MHz, 2400-2500 MHz, 5150-5350 MHZ, 5725-5850 MHZ.
- Power per antenna: 50 W per antenna. Installation of 3 to 5 antennas is possible for optimal configuration; example: with 5 antennas, the total power is 50 W × 5 = 250 W (note that the maximum declared power in the specifications is up to 200 W; actual total output power depends on the configuration and operating mode).
- Effective range: 350 m.
- Maximum power: up to 200 W (nominal power per antenna – 50 W; total output depends on configuration).
- Power supply: DC 12/24V – compatible with vehicle electrical systems.
- Operating temperature: -25 to +65 °C.
- Average output power: 47 dBm.
- Kit weight (housing + antennas): 5 kg.
- Technology: GaN – modern GaN semiconductor solutions provide higher efficiency, less heat generation, and more compact dimensions.
- Cooling: dual active cooling for stable operation under high loads.
- Protection: reverse polarity protection.
- Made in Ukraine.
Configuration and Package Contents
The standard package includes the assembled Loki system, antennas, control panel, power cable, and documentation. Customization of the kit is possible to meet customer requirements (selection of antenna quantity from 3 to 5 and selection of frequency bands for each antenna).

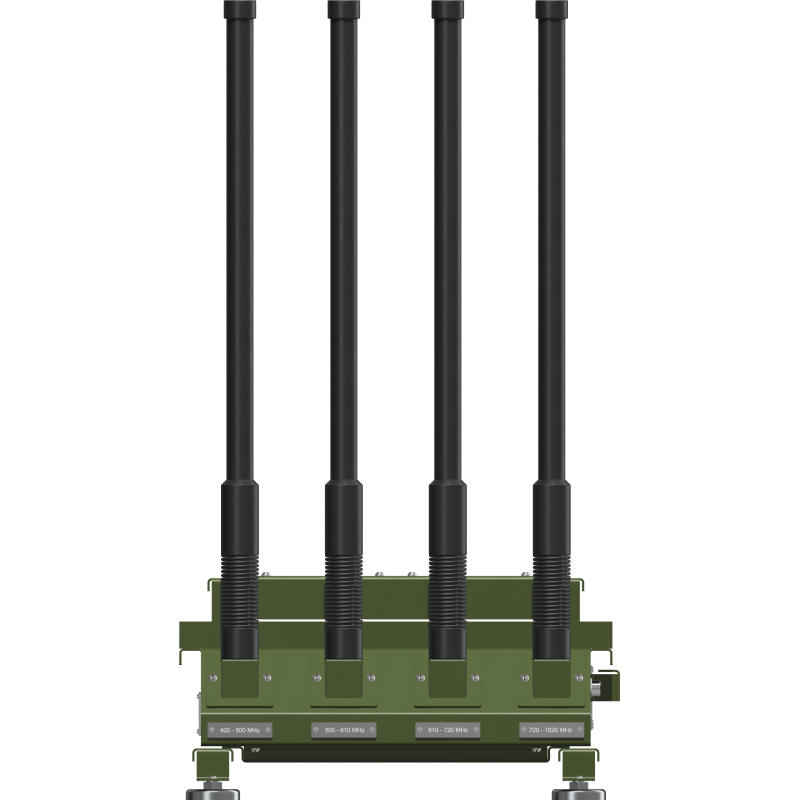

- Antennas: 5 antennas in standard delivery (option to choose antenna quantity: 3–5). Any of the available bands can be selected for each antenna.
- Control panel: power control panel, installed in the vehicle cabin – 1 pc.
- Power cable: connection cable to the vehicle's electrical system – 1 pc.
- Loki system, assembled – 1 pc.
- Documentation: passport and user manual – 1 pc.
Installation and Connection

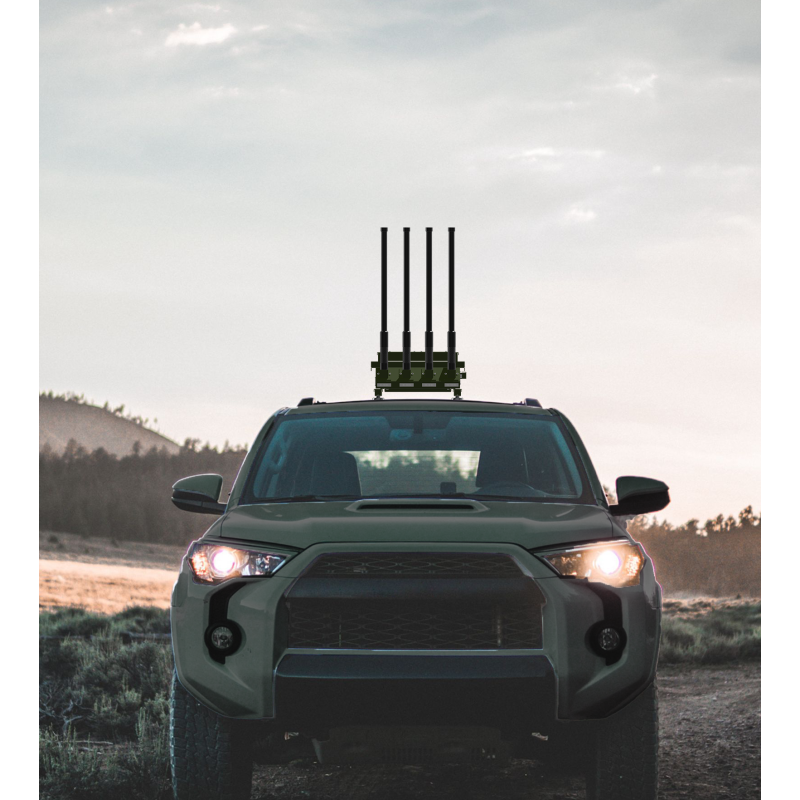

Installation is quick: 4-magnet mounting for attachment to the vehicle body. The control panel allows convenient switching on and changing operating modes from the cabin. Connection to the onboard battery is via the included power cable (DC 12/24V). For increased autonomy, optional accessories are available: an additional battery and a fast charger (optional, not included in the standard package).
Connection Diagrams
Connection diagram 1: connecting the control panel to the battery and powering the system; magnetic mounts for quick installation/removal. Connection diagram 2: alternative diagram with connection to an additional battery for increased operating autonomy.
Advantages and Features
- Flexible configurations: the ability to select frequency bands for each antenna allows adapting the device to operator tasks.
- High energy efficiency and reduced heat generation thanks to GaN technologies.
- Dual active cooling ensures stable operation during intensive use.
- Lightweight and compact: total kit weight – 5 kg, simplifying transport and installation.
- Protection against incorrect connection: reverse polarity protection ensures equipment safety in case of connection errors.
The kit may also include photographs of the system and examples of antenna array installation, control panel, and power cable. For clarification on package options, band selection, and additional features, please contact the supplier or review the detailed technical documentation and certificates.
Additional Information
The system has a certificate of conformity; for copies of certificates and technical documents, please contact the manufacturer's or seller's representatives. Other technical parameters: power type DC 12/24V, operating temperature range -25 - +65 °C, average output power 47 dBm, made in Ukraine. Product ID: 4745.
