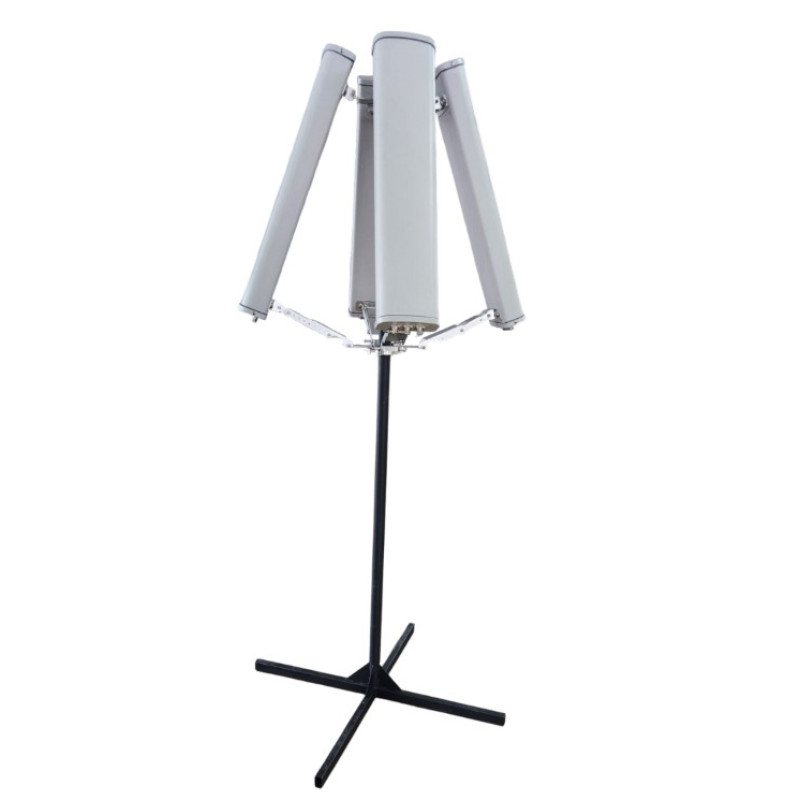

KVERTUS AD VEPR M100 GPS 420-5900 MHz Stationary EW System
Brand: Kvertus. The KVERTUS AD VEPR M100 GPS stationary electronic warfare jammer is specialized in reliably blocking drone navigation channels to protect critical infrastructure, facilities, and areas from unwanted UAVs. The device is designed for stable operation in the field and at permanent positions, ensuring restricted reception of navigation signals and, as a result, preventing drone guidance.
System Features: The system includes a self-contained IP-1 field indicator, which allows for quick determination of the presence and intensity of generated radio interference under any conditions. The system is focused on blocking drone navigation channels exclusively, operates in a wide frequency range of 420-5900 MHz, and has directional antennas that, once installed, form 360° coverage using four blocks.
Device Electromagnetic Interference Spectra
| No. | Channel | Electromagnetic Noise Spectrum, MHzPower | |
|---|---|---|---|
| 1 | GPS Navigation L2, L5 | 1150–1250 | 4 modules of 100 W each |
| 2 | GPS Navigation L3 | 1375–1390 | 4 modules of 100 W each |
| 3 | GPS Navigation L1 + GLONASS | 1570–1620 | 4 modules of 100 W each |
Technical Specifications
- Effective range: up to 3000 m (depending on application conditions).
- Power consumption: up to 3.5 kW.
- Power supply: 220 V AC, 50 Hz with current strength of at least 16 A.
- Weight: no more than 100 kg.
- Antennas: directional, spatial angle 90° (4 blocks, which emit in a 360° direction after installation).
- Continuous operation time: 24 hours.
- Readiness time: no more than 30 seconds.
The KVERTUS AD VEPR M100 GPS system is designed for use at stationary positions where guaranteed denial of navigation channels in the protected area is crucial. The combination of high output power modules, directional antennas, and the IP-1 indicator allows for quick system deployment and control of its operation without additional complex monitoring tools. The solution is optimized for protecting critical infrastructure, military facilities, logistics hubs, and other sites where reliable suppression of GPS/GLONASS signals and protection against UAV guidance are necessary.
Considering its technical characteristics and design features, the system provides a high level of protection with relatively simple power supply requirements and operational procedures. Installation and commissioning take minimal time due to the quick readiness time (up to 30 seconds) and the possibility of continuous operation for up to 24 hours.
