EW JAMMER KVERTUS AD KRAKEN-A 700-5900 MHz

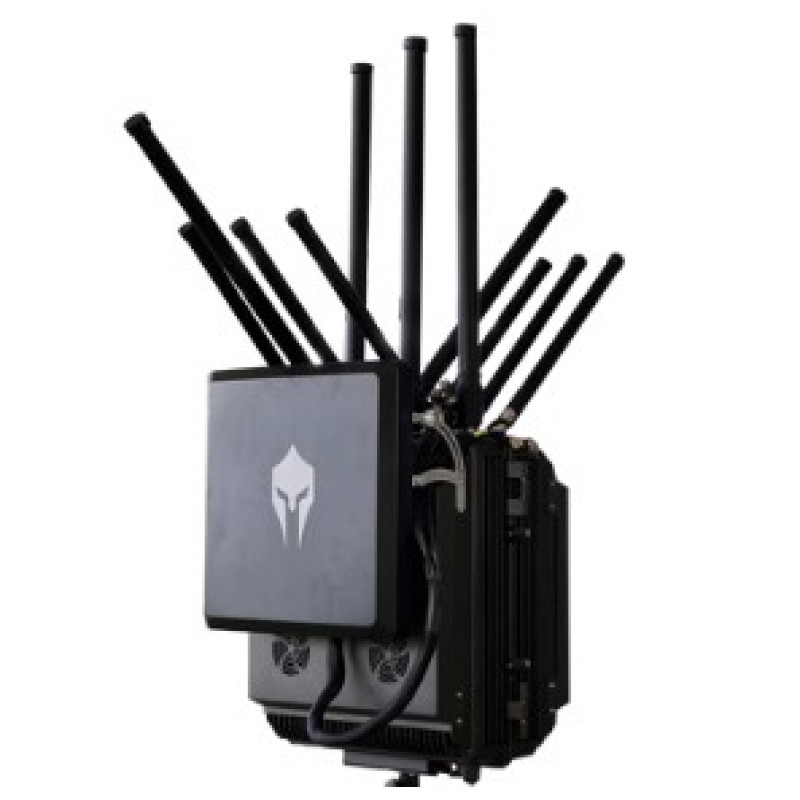

Kvertus presents the multi-band electronic warfare jammer KVERTUS AD KRAKEN-A — a powerful mobile system designed to suppress control and video channels of unmanned aerial vehicles. The device effectively operates against FPV drones in the 700–1050 MHz frequency band, as well as in additional ranges of 1420–1460 MHz and 2390–2500 MHz (1.4 GHz and 2.4 GHz respectively). To counter UAVs that drop ammunition, suppression at 2.4 GHz and 5.8 GHz is applied; a separate range of 5150–5250 MHz (5.2 GHz) blocks video channels at this frequency.

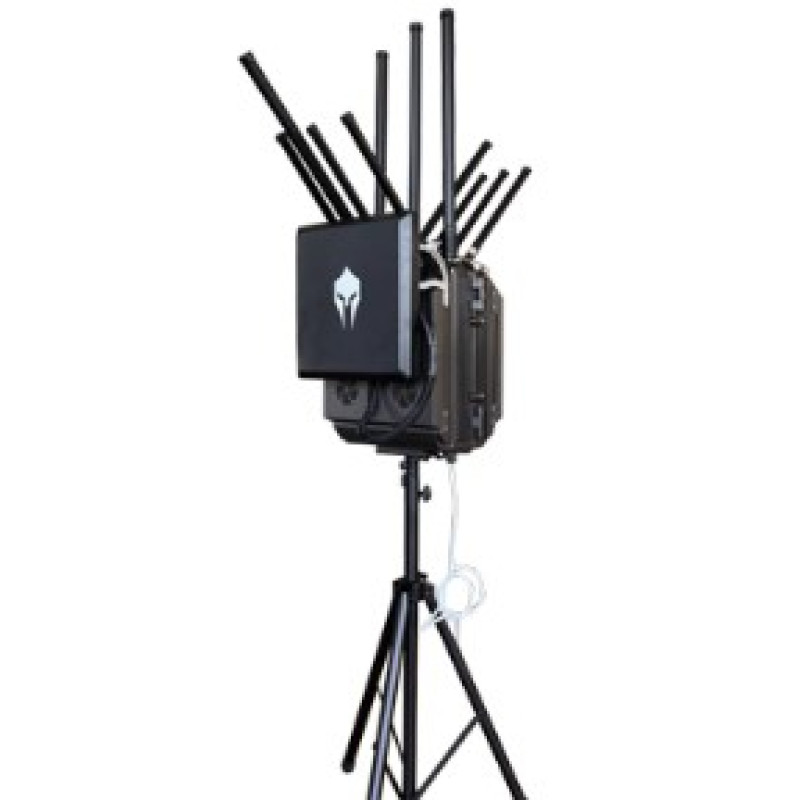

The design includes a directional antenna unit and a remote control with a 20 m cable, allowing the system to be operated from a safe distance. The device can work with both omnidirectional and directional antennas, providing flexibility in choosing the application mode depending on the tactical task.
Electromagnetic Interference Spectra of the Device
| No. | Channel | Electromagnetic Noise Spectrum, MHz | Power, W |
|---|---|---|---|
| 1 | Remote Radio Control | 700–850 | 50 |
| 2 | Remote Radio Control | 700–850 | 50 |
| 3 | Remote Radio Control | 850–940 | 50 |
| 4 | Remote Radio Control | 850–940 | 50 |
| 5 | Remote Radio Control | 940–1050 | 50 |
| 6 | Remote Radio Control | 940–1050 | 50 |
| 7 | Remote Radio Control | 1420–1460 | 50 |
| 8 | Remote Radio Control | 2390–2500 | 50 |
| 9 | Remote Radio Control | 2390–2500 | 50 |
| 10 | Remote Radio Control | 5150–5250 | 50 |
| 11 | Remote Radio Control | 5700–5900 | 50 |
Technical Specifications
- Effective Range: with omnidirectional antennas — up to 800 m; with directional antenna unit — up to 2000 m (depending on application conditions).
- Power Supply: 220 V, 50 Hz mains, also supports power from gasoline or diesel generator.
- Weight in Deployed State: no more than 40 kg, allowing for rapid deployment and transport.
- Cooling: active, ensures prolonged operation under load.
- Antennas: kit includes omnidirectional collinear and directional antennas for task adaptation.
- Power Consumption: no more than 3000 W.
- Continuous Operation Time: up to 12 hours with a recommended one-hour break for cooling and maintenance.
- Readiness Time: no more than 30 seconds from power-on.
Package Contents
- KVERTUS AD KRAKEN-A — 1 pc.
- Whip Antenna — 11 pcs.
- Directional Antenna Unit — 1 pc.
- Remote Control — 1 pc. (20 m cable).
- Tripod — 1 pc.
- Transport Case — 1 pc.
- Passport and Manual — 1 set.
- Field Indicator IP-1 — 1 pc.
The KVERTUS AD KRAKEN-A EW jammer is designed to combat modern unmanned threats: it combines high radiation power in key UAV frequency bands with deployment mobility. Thanks to the directional antenna unit and the ability to operate from a standard power grid or generator, the system is suitable for field operations, perimeter protection, and preventing the use of drones for dropping ammunition or gathering intelligence. The technical specifications and package contents allow for quick preparation of the device for operation and its support in field conditions.
Other data: product category — EW Jammers > Trench EW Jammers; manufacturer — Kvertus.
