KVERTUS AD VEPR M50 Stationary EW System 420-5900 MHz

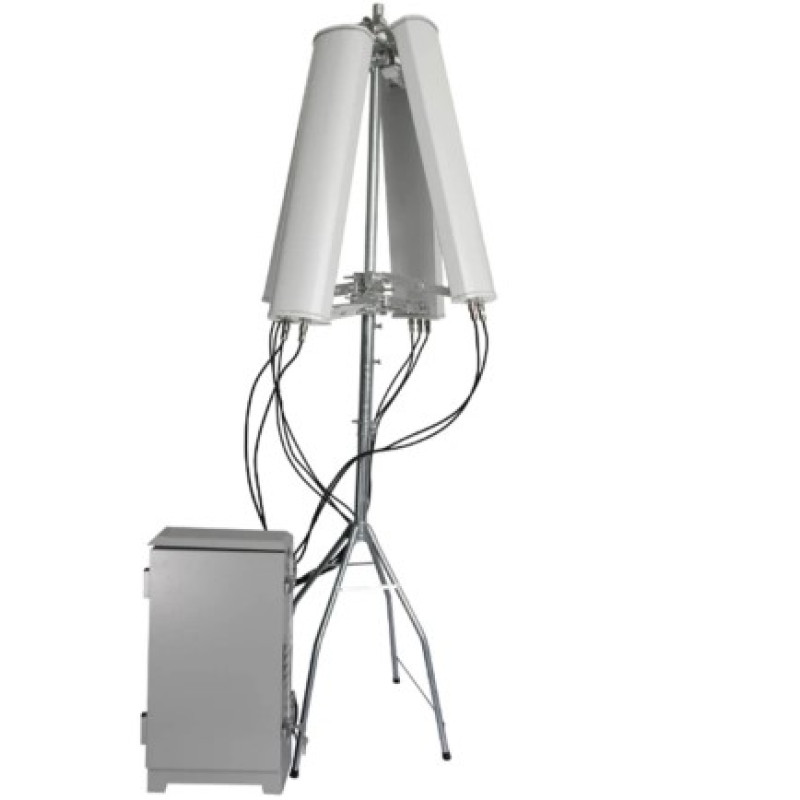

Manufacturer: Kvertus. The KVERTUS AD VEPR M50 stationary EW system is a powerful protective module for continuous dome coverage of critical military and civilian objects. The system consists of a separate generator unit connected to mast-mounted antennas and is designed to counter various types of UAVs, including FPV drones with standard control frequencies, Mavic-type models, and budget Autel models.

Device Electromagnetic Jamming Spectra

Technical Specifications

• Effective range: up to 2000 m (depending on application conditions).
• Power consumption: up to 3.5 kW.
• Power supply: 220 V, 50 Hz AC source with current strength of at least 20 A.
• Weight: no more than 125 kg.
• Antennas: directional, spatial angle 90° (4 radiation zones-360°); omnidirectional collinear - hemisphere 360° (2 pcs.).
• Continuous operation time: 24 hours.
• Readiness time: no more than 30 seconds.

Package Contents:

• Antennas and antenna units included in the kit:

• 1) 420-440 MHz whip antenna - 2 pcs.
• 2) 2-in-1 antenna unit (850-940 MHz, 1150-1250 MHz) - 4 pcs.
• 3) 3-in-1 antenna unit (1570-1620 MHz, 2400-2500 MHz, 5700-5900 MHz) - 4 pcs.

• Antenna connection cable - 22 pcs.
• Power cable - 1 pc.
• Tripod mast - 1 pc.
• Generator unit - 1 pc.
• Field indicator IP-1 - 1 pc.

The KVERTUS AD VEPR M50 EW system provides reliable protection against a wide range of UAV control and navigation channels due to the combined use of modular power amplifiers and various antenna types. The modular design allows flexible configuration of 420-5900 MHz frequency coverage according to the object's protection tasks. Simple integration of the generator unit with the mast-mounted antenna system makes the complex suitable for permanent stationary deployment in positions requiring continuous coverage and quick readiness for operation.

The system is suitable for protecting military facilities, airfields, warehouses, critical civilian infrastructure, and industrial sites where continuous countering of uncontrolled and controlled drones is necessary. Thanks to 24-hour operability and short readiness time (up to 30 seconds), the system guarantees prompt response to threats.

If you need consultation regarding installation, optimal antenna placement, or additional system scaling options — please contact Kvertus representatives or official distributors.
