Product Code: 35325-999
In Stock
335 065 грн.
Buy this product in 1 click:
Main specifications
Device type:
Trench EW Jammer
Number of jamming channels:
9
Total system power:
up to 1200 W
Power per channel:
25W / 30W
Suppression Frequencies:
868 MHz; 915 MHz; 1.2 GHz; 2.4 GHz; 5.8 GHz
All specifications
We will deliver this product:
Payment
Description

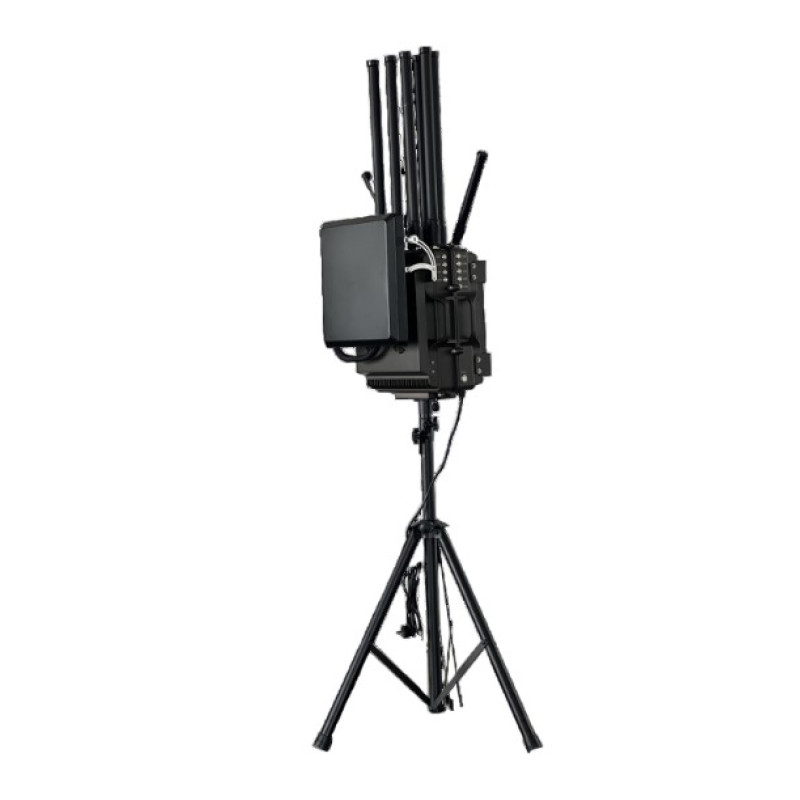

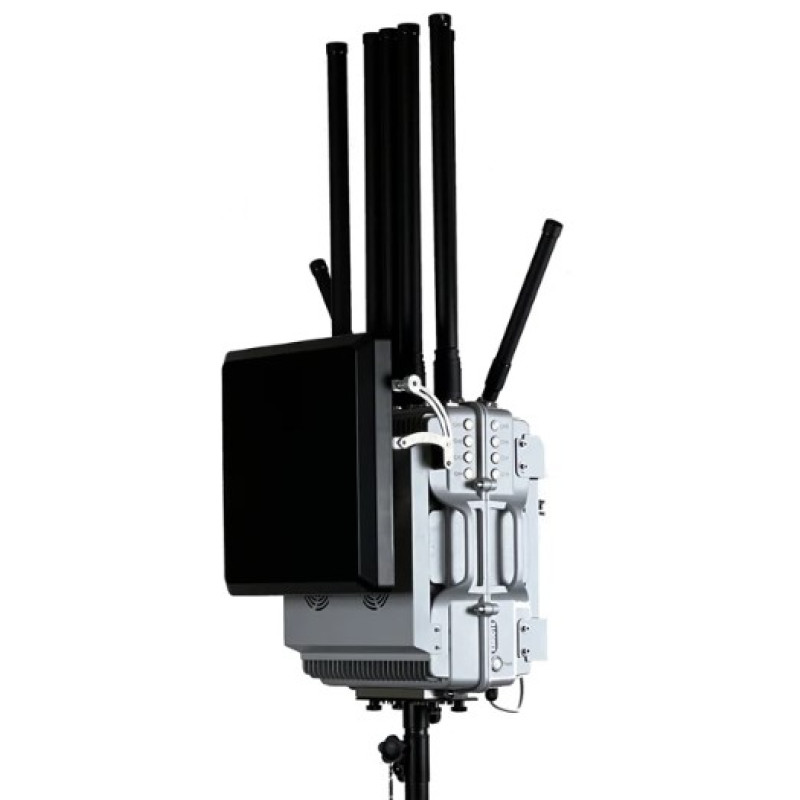

KVERTUS AD KRAKEN-M — a multi-band EW jammer effective against drones that drop ammunition (Mavic, budget Autel models), as well as against FPV drones with standard control frequencies. It features a directional antenna unit and a remote control with a 20 m cable.
DEVICE ELECTROMAGNETIC JAMMING SPECTRA
| No. | Channel | Electromagnetic noise | Power, W |
| 1 | Remote radio control | 420–440 | 25 |
| 2 | Remote radio control | 850–940 | 30 |
| 3 | Remote radio control | 850–940 | 30 |
| 4 | GPS navigation L2, L5 | 1150–1250 | 25 |
| 5 | GPS navigation L1 + GLONASS | 1570–1620 | 25 |
| 6 | Remote radio control | 2400–2500 | 25 |
| 7 | Remote radio control | 2400–2500 | 25 |
| 8 | Remote radio control | 5150–5350 | 30 |
| 9 | Remote radio control | 5700–5900 | 25 |
TECHNICAL SPECIFICATIONS
- Effective range: up to 1500 m (depending on application conditions).
- Power supply: 220 V, 50 Hz mains (including from a gasoline or diesel generator).
- Weight in deployed state: no more than 40 kg.
- Cooling: active.
- Antennas: omnidirectional collinear and directional.
- Power consumption: no more than 1200 W.
- Continuous operation time: up to 12 hours with a one-hour break.
- Readiness time: no more than 30 s.
PACKAGE CONTENTS
- KVERTUS AD KRAKEN-M – 1 pc
- Antenna unit with 9 directional antennas – 1 pc
- Remote control – 1 pc
- Tripod – 1 pc
- Transport case – 1 pc
- Whip antenna – 9 pcs
- Field indicator IP-1 – 1 pc
Specifications
Frequency range
420–440 MHz; 850–940 MHz; 1150–1250 MHz; 1570–1620 MHz; 2400–2500 MHz; 5150–5350 MHz; 5700–5900 MHz
Trench EW Jammer
Device type
Trench EW Jammer
Number of jamming channels
9
Total system power
up to 1200 W
Power per channel
25W / 30W
Suppression Frequencies
868 MHz; 915 MHz; 1.2 GHz; 2.4 GHz; 5.8 GHz
Antenna type
omnidirectional collinear; directional
Effective jamming range
up to 1500 m
Power Supply
220 V
Power source
Network
Cooling type
Active
Mounting Type
On Tripod
