AWEDYNE Kulbaba 150 EW System (710-1010 MHz)

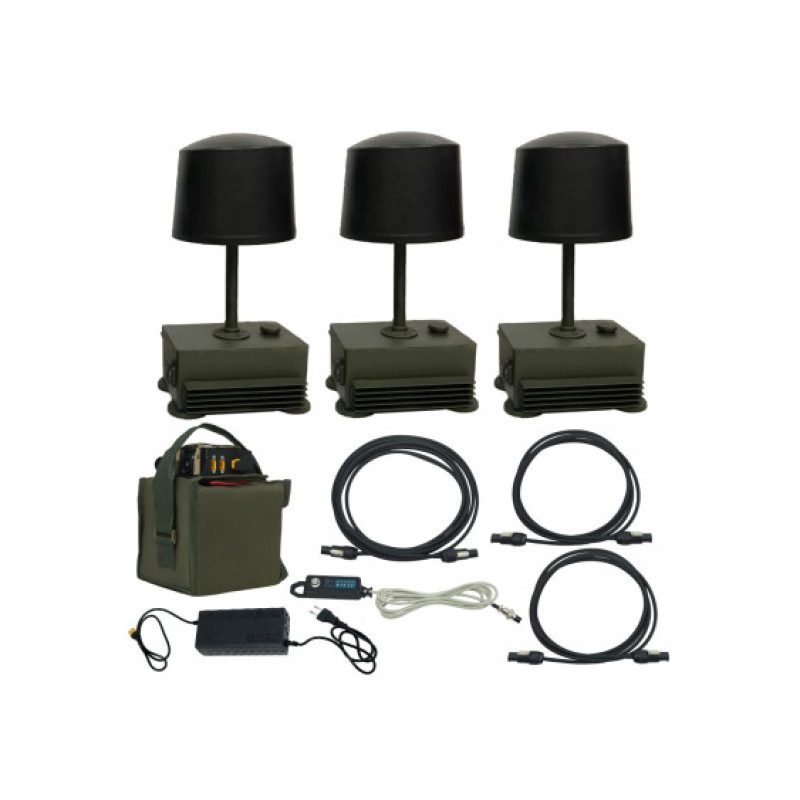

The Kulbaba 150 (710-1010 MHz) FPV control suppression system by AWEDYNE is a mobile portable electronic warfare system designed to protect vehicles and stationary objects from kamikaze UAV attacks and other external threats. The device features a modular design: each module has its own casing, a non-detachable antenna, and a separate power connector for connecting a portable 24V LiFePo4 battery.
Design, Antennas, and Power
Each unit is equipped with a non-detachable antenna, designed for the specified frequency range of 710-1010 MHz, which prevents operation without an antenna and protects amplifier elements from burnout. The antennas have a reinforced design to maintain geometry under the influence of weather conditions and vehicle vibrations. Power is supplied exclusively from the included portable 24V LiFePo4 battery (12 Ah per unit); in a typical kit, the total capacity is stated as 24 Ah. Connection to the vehicle's onboard network or other power sources is not provided.
Mounting and Cooling
Mounting the units is simple and quick: the fasteners are made of rubber-impregnated neodymium magnets, ensuring reliable fixation without additional mounts and without damaging the vehicle body. Only passive cooling is recommended: active cooling systems are vulnerable to rain, snow, dirt, and can fail, leading to device damage. To extend operating time, additional complete batteries should be purchased; modifying the power for the onboard network is prohibited.
Key Features
The system combines modularity (each unit has a separate casing and power connector), reinforced non-detachable antennas, quick magnetic mounting, and autonomous power from a 24V LiFePo4 battery. Proper antenna spacing ensures correct operation of the suppression system. Typical operating time from one battery is approximately 2.5 hours when two units are operating.
Warnings and Recommendations
- 1. There are devices on the market that outwardly resemble "Kulbaba". The original manufacturer is AWEDYNE; other products may not correspond to the original design and characteristics, please be careful when purchasing.
- 2. Devices with multiple bands in one casing and multiple antennas may not work correctly; antennas must be spaced apart for proper operation. Do not trust combined solutions that save space at the expense of protection reliability.
- 3. Collinear dipole antennas form a "doughnut-shaped" field with a vulnerable zone above the device; for dome protection, correct antenna types should be used.
- 4. Power only from the included battery. Do not modify for the vehicle's onboard network. If operating time is insufficient, purchase additional batteries.
- 5. Avoid devices with active cooling — they are more prone to failure due to dirt, moisture, or mechanical contamination. Choose passive cooling.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency range, MHz | 710-1010 |
| Codification | Yes |
| Module power, W | 50 |
| Supply voltage, V | 24 |
| Battery capacity, Ah | 24 (typical kit) |
| Number of modules, pcs. | 3 |
The AWEDYNE Kulbaba 150 EW system is a specialized solution for vehicle protection against UAVs, combining modularity, reinforced antennas, simple mounting, and autonomous power. Before use, strictly follow the manufacturer's recommendations regarding antenna placement, passive cooling, and operation from a portable battery.
