EW System Kulbaba X 950-1010 MHz «Kulbaba» — AWEDYNE

The FPV control suppression system Kulbaba X is designed for the systemic protection of mobile and stationary assets from kamikaze drone attacks in the 950-1010 MHz frequency range. The developer and sole rights holder of the original model is the manufacturer AWEDYNE. This is a modular, operational, and autonomous solution for protecting high-risk objects and groups when a system needs to be quickly deployed on a vehicle, armored equipment, or at the perimeter of a stationary object.

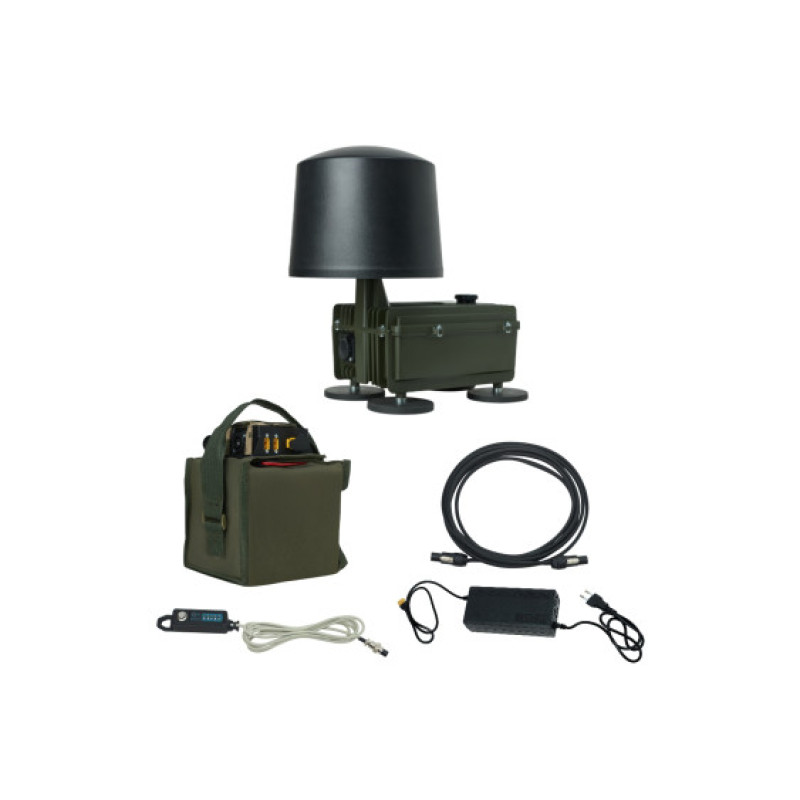

The system consists of independent blocks: each block has its own casing, a built-in non-removable antenna, a connector for power supply from the included portable battery, and magnetic mounts for quick installation on a vehicle body. Power is supplied exclusively from the included LiFePo4 24 V, 12 Ah battery; connection to the vehicle's onboard network or other power sources is not provided. In a two-block configuration, the approximate operating time from one battery is about 2.5 hours.

The antennas in each block are designed for a specific frequency and are non-removable — this eliminates the risk of operating the block without an antenna and prevents burnout of amplification elements in the electronic module. The antenna design is reinforced to maintain geometry under the influence of weather factors and vehicle movement vibrations, ensuring stable operation in field conditions. Each block is equipped with rubber-impregnated neodymium magnets, allowing for very quick installation and removal of modules without additional tools.

Key Features

• Type: FPV control suppression system (EW)
• Model: Kulbaba X
• Frequency Range: 950-1010 MHz
• Manufacturer: AWEDYNE
• Power Supply: LiFePo4 24 V, 12 Ah (battery included)
• Operating Time: approximately 2.5 hours from one battery for a two-block system
• Design: independent blocks with their own casings and antennas
• Antennas: non-removable, reinforced designs
• Mounting: rubber-impregnated neodymium magnets

Recommendations and Important Notes

• 1. Many devices visually resembling "Kulbaba" have appeared on the market. The original manufacturer of the "Kulbaba" system is only AWEDYNE. Other products are not related to this product — be cautious when choosing.
• 2. Devices with multiple bands in one casing and multiple antennas in one casing may not work correctly: antennas must be spaced apart for proper operation. Do not trust convenient single-casing solutions that violate the principle of antenna spacing.
• 3. Collinear dipole stick antennas form a "donut-shaped" field with a hole above the installation site — this is a vulnerable zone. Use only correct antennas for dome protection.
• 4. Power only from the included battery. Do not modify for the vehicle's onboard network. If the operating time is insufficient, purchase an additional battery and block kit.
• 5. Avoid solutions with active cooling: fans and moving cooling systems fail faster due to rain, snow, dirt, and jamming, which can lead to device loss. Choose devices with passive cooling.

The Kulbaba X system is a professional solution for protection against guided FPV aggressors in the 950-1010 MHz frequency range. Its modular design, protected non-removable antennas, autonomous power supply from the included LiFePo4 24 V/12 Ah battery, and simple magnetic mounting make this system convenient for operational use on mobile and stationary objects. Consider the recommendations provided when choosing and operating to ensure reliable performance and durability of the equipment. Product category: EW Jammers > Vehicle EW Jammers.
