TBS Fusion Goggles Video Receiver
Manufacturer: TBS. Category: Drones & Quadcopters > Drone Components > Drone Parts > Transmitters. The TBS Fusion Goggles Video Receiver is designed for integration into FPV goggles, providing stable video signal reception, flexible connectivity options, and convenient firmware updates via USB. This solution is ideal for pilots seeking high-quality reception, compatibility with popular TBS modules and tools.
Key Features and Benefits
- 1. Automatic Channel Switching: The module automatically selects the best available channel, reducing the risk of video stream loss during active flight.
- 2. Crossfire Interface Support: Compatibility with TBS Crossfire allows for integration of the video receiver into a unified control ecosystem, providing stable communication over significant distances.
- 3. RSSI and Signal Parameter Display: RSSI and other link quality information are displayed on the goggle screen, helping to quickly assess the situation and make decisions during flight.
- 4. RapidFire and La Forge Module Support: Compatibility with popular video signal processors improves image clarity and reduces the impact of radio interference.
- 5. USB Connection for Firmware Updates: The device supports firmware updates via USB, allowing for the download of current software versions and access to new features.
Technical Specifications
| Characteristic | Parameter |
|---|---|
| RF Sensitivity | -96dBm |
| Power Supply | 5V at 340mAh, 500mAh with optional connection |
| Compatibility | Fatshark Dominator V1, V2, V3, HD1, HD2, HD3, HDO |
| Fatshark Attitude Compatibility | requires modification of the goggle plastic housing |
| External Power Kit | included (needed for older goggles that cannot provide sufficient power) |
| Updates via | TBS Agent X V1.21 or higher |
Detailed Feature Description
The TBS Fusion Goggles combine modern channel scanning algorithms and link parameter display, making the module optimal for FPV enthusiasts and professionals. With Crossfire support, you get seamless operation of the video receiver with your TBS remote control. Compatibility with RapidFire and La Forge significantly improves image quality in environments with high levels of radio interference. Displaying RSSI directly in the goggles simplifies link monitoring during maneuvers and long-distance flights.

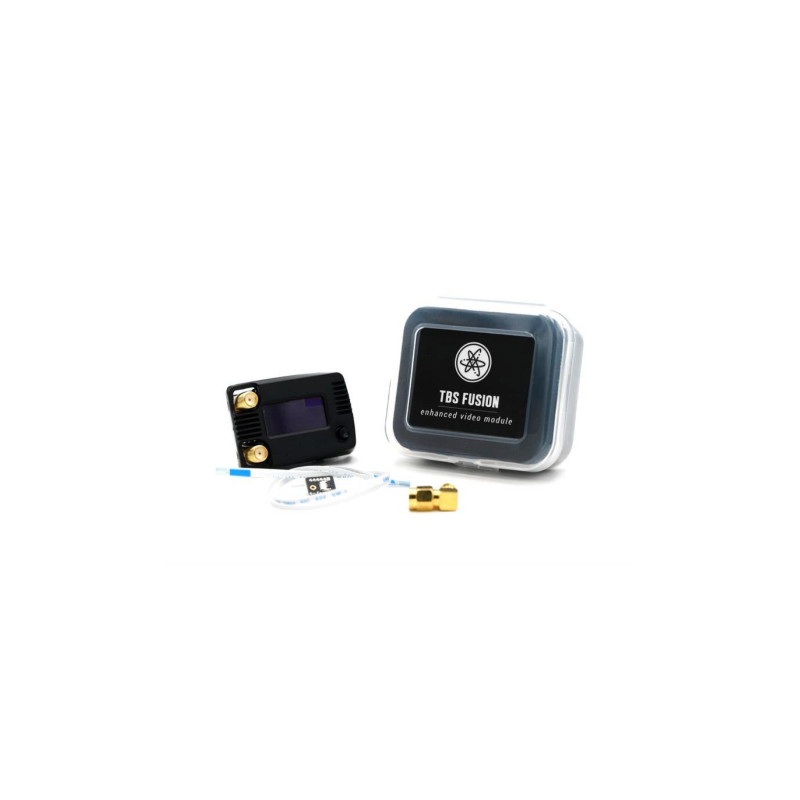

Package Contents
- TBS Fusion Video Receiver Module
- Cover
- Power Mod PCB
- Power Mod Flex Cable – 2 pcs
- Right-angle SMA Adapter
Please note: installation into some Fatshark Attitude models may require trimming or fitting of the goggle plastic housing. For older goggles, an external power supply is included — this allows bypassing the limitations of the standard power supply and ensures correct receiver operation under load. Firmware is updated via USB using TBS Agent X version V1.21 or higher, guaranteeing access to the latest improvements and fixes.
The TBS Fusion Goggles Video Receiver — a reliable and flexible solution for those who value high-quality video transmission, compatibility with leading FPV modular systems, and the ability to scale functions using RapidFire, La Forge, and Crossfire. The device is especially useful for pilots using Fatshark Dominator and HDO series goggles, as well as for those who want a modern video reception and processing system in a compact module.
