EW Jammer Kulbaba SX 710-840; 950-1010 MHz "Kulbaba" — manufacturer: AWEDYNE. Product type: EW jammers.
The FPV control suppression system is designed to significantly increase the chances of preserving rolling stock from kamikaze drone attacks, as well as to protect trenches and stationary objects. The system consists of independent blocks: each block has a separate casing, its own non-removable antenna, and a connector for power supply from a portable LiFePo4 24 V 12 Ah battery, which is included. Power is supplied exclusively from the portable battery — connection to the vehicle's onboard network or other power sources is not provided. The operating time from one battery when using two blocks is approximately 2.5 hours.
The antenna on each block is designed for a specific frequency and is non-removable, which eliminates the possibility of connecting the block without an antenna and reduces the risk of failure of the amplifying components of the electronic module. The antennas are made with a reinforced design for increased resistance to weather conditions and vehicle vibrations. Neodymium magnets impregnated with rubber are used for mounting the blocks — installation on vehicles is simple and fast. The module design provides passive cooling, which increases reliability in field conditions compared to active cooling solutions.
IMPORTANT!
- 1. Many devices visually resembling "Kulbaba" have appeared on the market, but the manufacturer of the original system is only AWEDYNE. Other devices have nothing in common with this product. Be careful when choosing.
- 2. Devices with multiple bands in one casing and with multiple antennas in one block may not work correctly: antennas must be spaced apart from each other. Do not trust "convenient" designs that save space at the cost of protection effectiveness.
- 3. Collinear dipole antennas form a field with a "donut-shaped" zone above the user — this is a vulnerable area. Use only correct antennas for dome protection.
- 4. Power only from the included battery. Do not modify the device for the vehicle's network. If the operating time is insufficient, it is recommended to purchase an additional battery pack.
- 5. Avoid devices with active cooling: fans and active cooling elements can fail under the influence of rain, snow, dirt; in case of cooling blockage, the device may fail. Choose solutions with passive cooling.

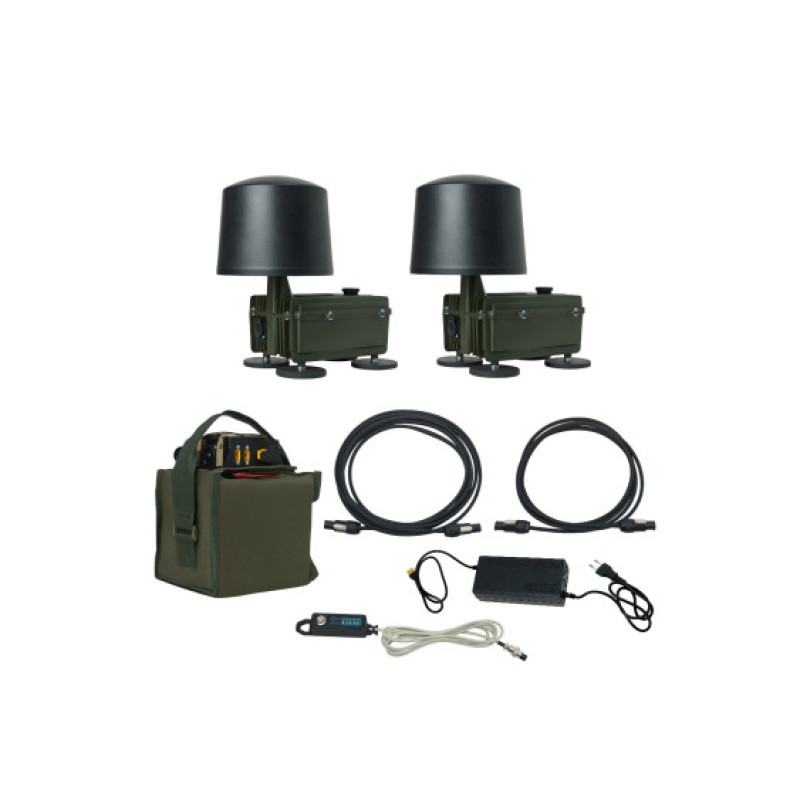

Detailed photo of the system: https://flasharmy.com.ua/image/catalog/reb/2499-/k5_mods_1-big.jpg
Key Features of EW Jammer Kulbaba SX (710-840; 950-1010)
Technical specifications:
| Parameter | Value |
|---|---|
| Frequency range, MHz | 710-840; 950-1010 |
| Codification | Yes |
| Module power, W | 50 |
| Supply voltage, V | 24 |
| Battery capacity, Ah | 24 |
| Number of modules, pcs. | 2 |
The description also states that the system is powered by a LiFePo4 24 V 12 Ah battery, which is included; please note that the list of technical parameters indicates a battery capacity of 24 Ah — please clarify the delivery set and actual battery characteristics with the seller when ordering. Operating time from one battery with two blocks: approximately 2.5 hours.
The Kulbaba SX system is designed for field operation: non-removable antennas, reinforced antenna construction, rubber-impregnated magnetic mounting, passive module cooling. Manufacturer: AWEDYNE. Product name: EW Jammer Kulbaba SX 710-840; 950-1010 MHz (Kulbaba).
