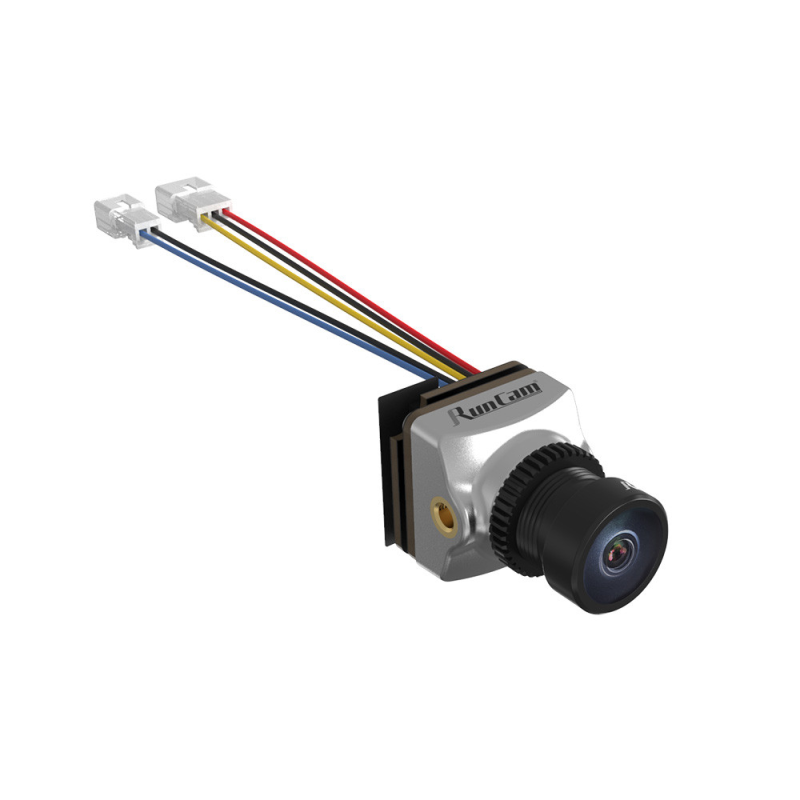

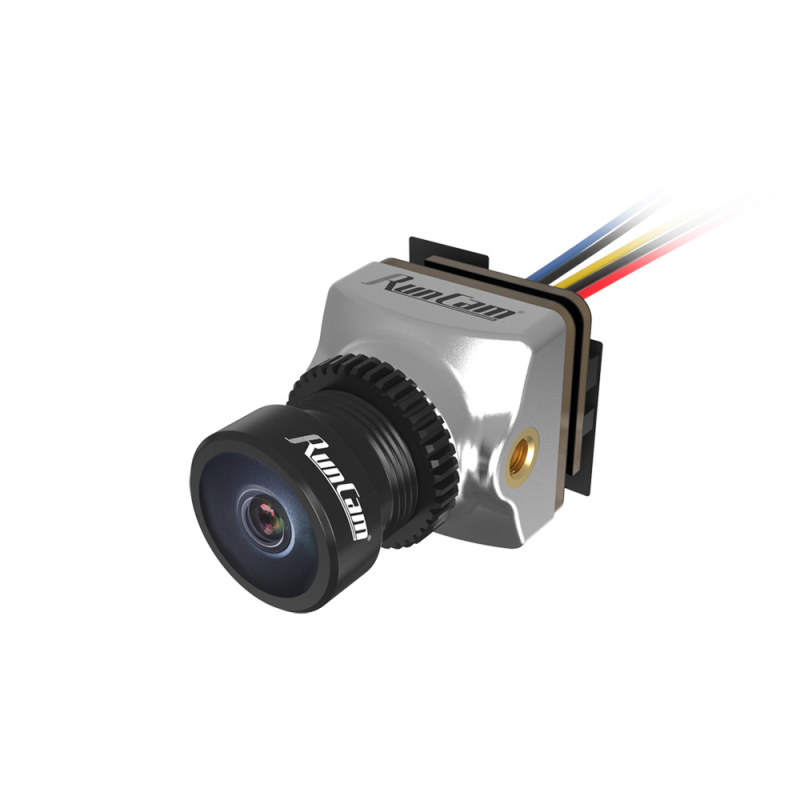

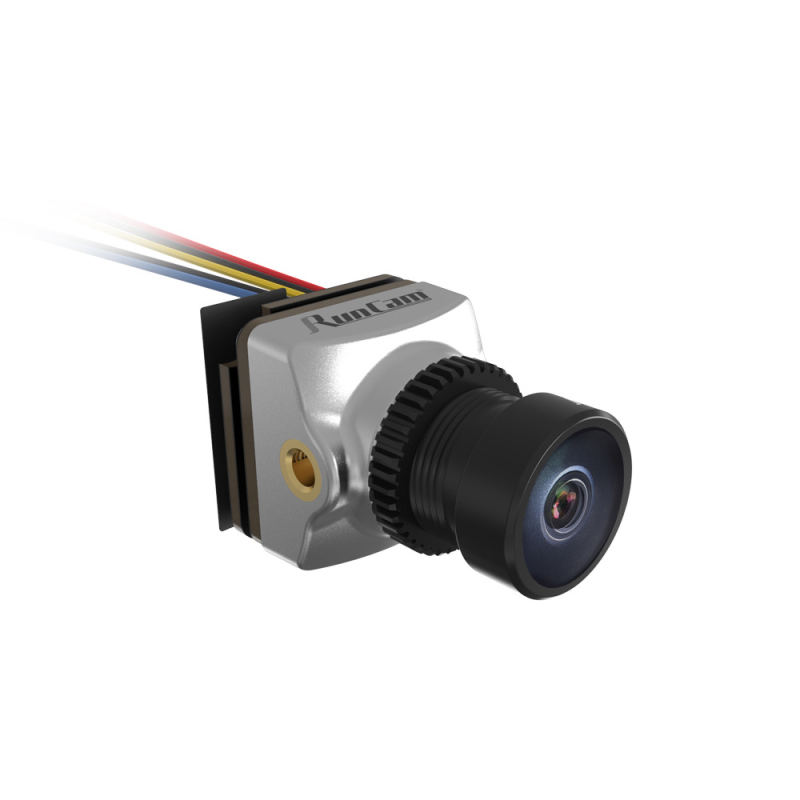

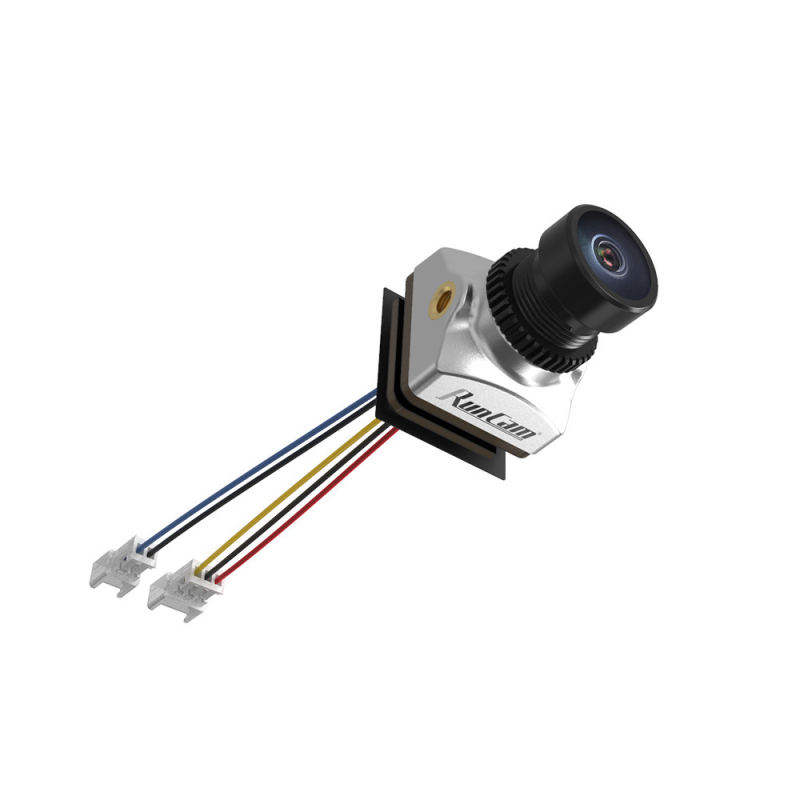

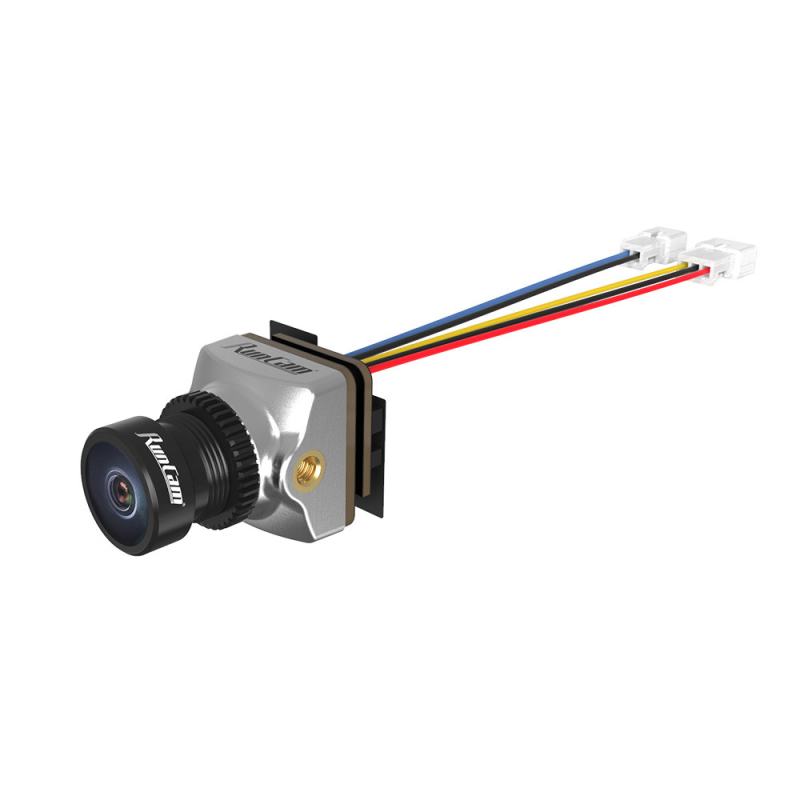

Camera for FPV RunCam Phoenix 2 Nano

RunCam Phoenix 2 Nano — a compact and lightweight FPV camera from RunCam, designed for racing enthusiasts and miniature drones. This model is ideal for installation on the smallest frames due to its weight of only 5 g and small dimensions of 14mm × 14mm × 22mm. The camera belongs to the category: Drones and Quadcopters > Cameras and is an excellent choice among drone components for those who value high-quality video signal in a compact ABS body.

Brief Overview

RunCam Phoenix 2 Nano combines high horizontal resolution of 1000 TVL with a wide field of view and low minimum illumination, ensuring a clear and detailed image during flight. The design provides for easy installation, the ability to change the image format and signal system, as well as convenient cable menu control.

Key Features

• Product Name: RunCam Phoenix 2 Nano
• Manufacturer: RunCam
• Image Sensor: 1/2″ CMOS Sensor
• Horizontal Resolution: 1000 TVL
• Weight: 5 g
• Dimensions: 14mm × 14mm × 22mm
• Housing: ABS

Optics and Image Parameters

• Lens: 2.1mm (M8) FOV 155° (4:3)
• Screen Format: 4:3 / 16:9 (switchable)
• Signal System: PAL / NTSC (switchable)
• Signal-to-Noise Ratio: >50 dB (AGC off)
• Electronic Shutter Speed: Auto
• Automatic Gain Control (AGC): Auto
• Minimum Illumination: 0.001 Lux @ 1.2F
• WDR: Global
• Day/Night Mode: Color / B&W / EXT / Auto

Power and Control

• Menu Control: Cable
• Power Supply: DC 5–36V
• Power Consumption: 190 mA @ 5V / 80 mA @ 12V

Additional Features

• Mirror/Flip Function: Available

Key advantages of RunCam Phoenix 2 Nano: compact dimensions of 14×14×22 mm and a weight of only 5 g allow the camera to be installed even on the smallest frames without significantly affecting maneuverability; the ABS housing ensures lightness and basic protection against damage; a wide 155° field of view combined with 1000 TVL resolution provides a clear picture for orientation during fast flights; low minimum illumination of 0.001 Lux and global WDR ensure better visibility in dark or high-contrast conditions; the ability to switch between 4:3 and 16:9 formats and PAL/NTSC makes the camera compatible with various equipment; a wide power supply range of DC 5–36V and moderate power consumption make the Phoenix 2 Nano a flexible solution for various boards and power systems. Cable menu control allows quick parameter adjustment without disassembly, and the mirror/flip function simplifies installation in any configuration.

RunCam Phoenix 2 Nano is suitable for FPV pilots looking for a lightweight, functional, and versatile camera for racing, freestyle, or mini-drones. It belongs to the category Drones and Quadcopters > Cameras and will be a reliable component of your FPV kit.
