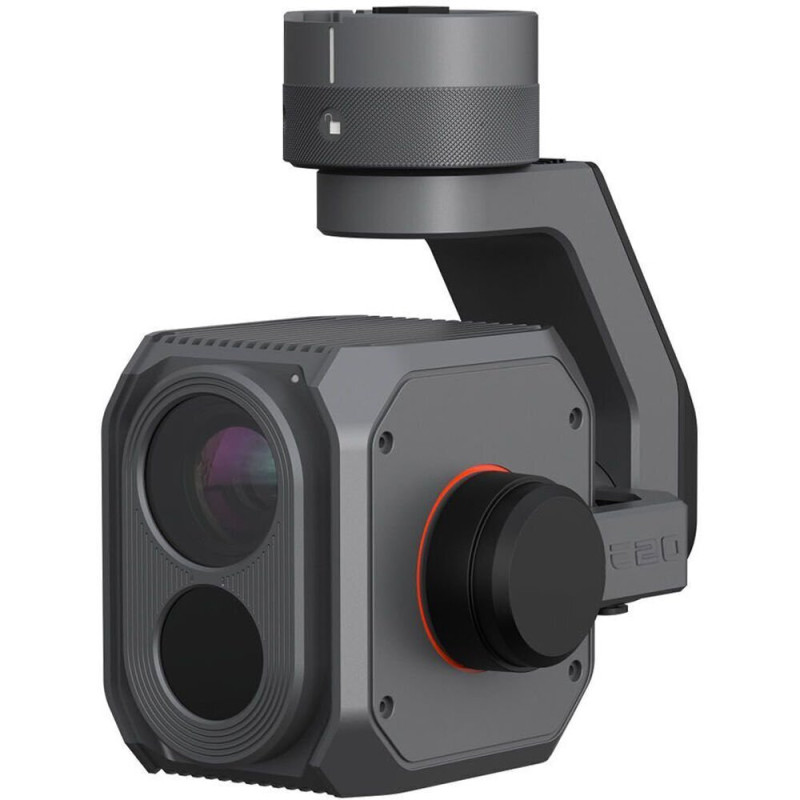

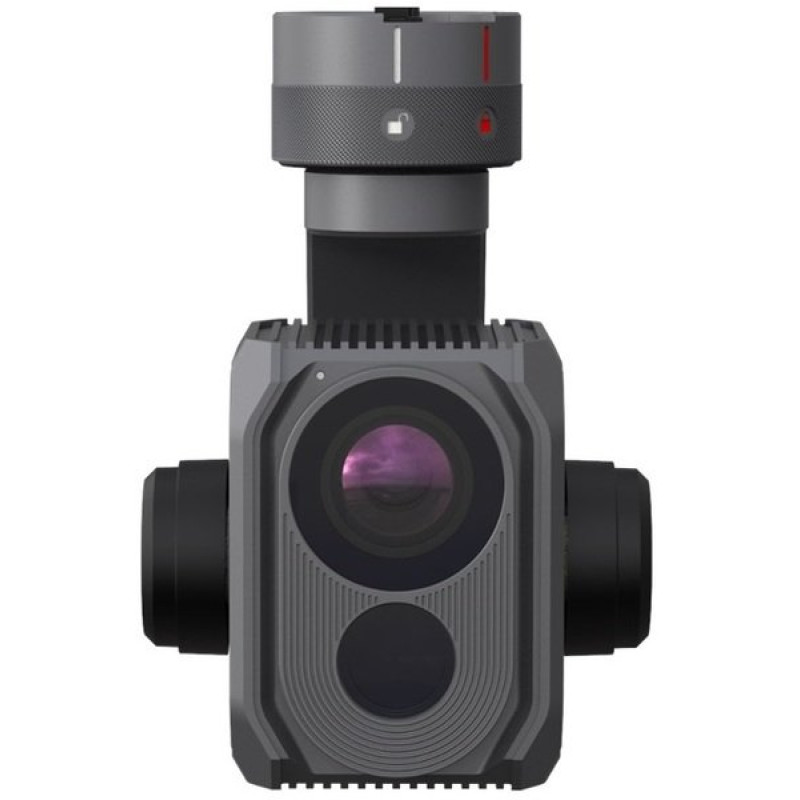

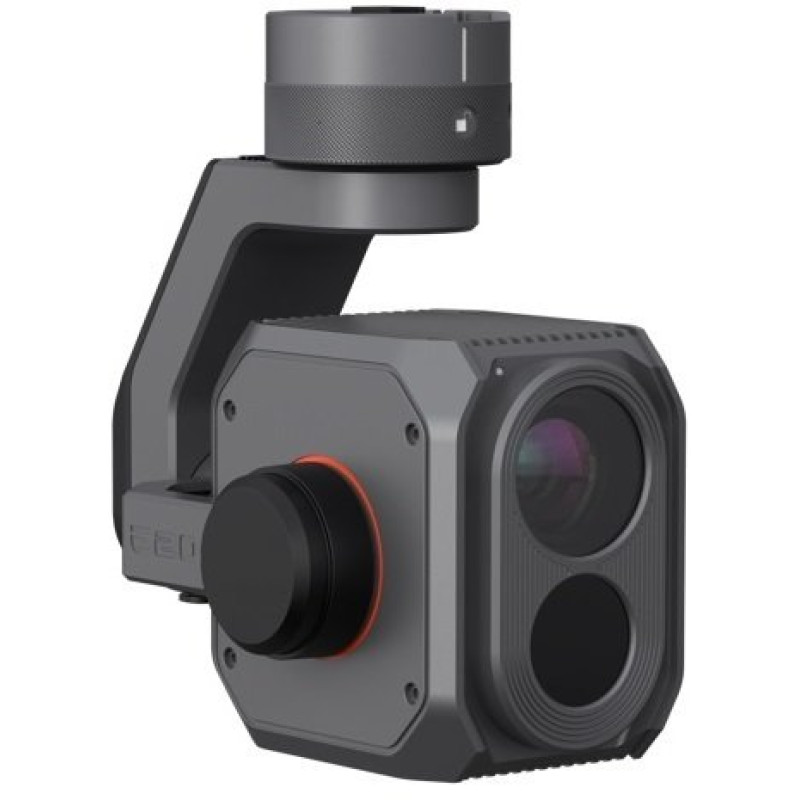

Yuneec E20Tvx Thermal Camera for H520E/H850 Drones

The Yuneec E20Tvx is a professional module from the Yuneec brand, designed for integration with H520E and H850 series multi-copters. The device combines an infrared thermal imager with high-quality 1080p RGB optics, allowing for simultaneous acquisition of thermal and optical images and their synchronized overlay for precise visual analysis of objects in the frame.

Overview and Purpose

The Yuneec E20Tvx camera is designed for a wide range of professional tasks: inspection of buildings and structures, power line checks, solar panel surveys, search and rescue operations, as well as for fire and law enforcement units. Thanks to its high sensitivity and hot-swappable capability, it can be quickly replaced in the field without powering down the platform, which reduces downtime and increases task efficiency.

Key Features

• Dual-camera system: thermal sensor + 1080p RGB for comprehensive scene capture
• Real-time overlay of IR and RGB data to simplify results interpretation
• Simultaneous streaming and recording from both cameras to the ground control station
• Support for multiple color palettes and adjustable temperature measurement scale
• Hot-swappable module for quick replacement without powering down the drone

Technical Specifications

• Thermal imager resolution: 640×512
• RGB camera: 1080p
• Sensitivity (NETD): Drone Components > Drone Spare Parts > Cameras and is offered by the renowned manufacturer Yuneec.
• Compatibility: H520E and H850 platforms
• Supports simultaneous streaming and recording from both sensors, IR and RGB layer overlay, multiple temperature display palettes

The Yuneec E20Tvx module is a flexible solution for professionals in infrastructure inspections, energy, security, and rescue operations. The combination of a thermal sensor with an optical camera allows for quick detection of thermal anomalies and their visual confirmation, increasing diagnostic accuracy and work safety. Thanks to its hot-swappable design and data streaming support, the E20Tvx is suitable for intensive professional use.

Manufacturer: Yuneec. Product type: Drones and Quadcopters > Cameras. Compatibility with H520E and H850 platforms makes the camera versatile for various inspection and monitoring tasks.
