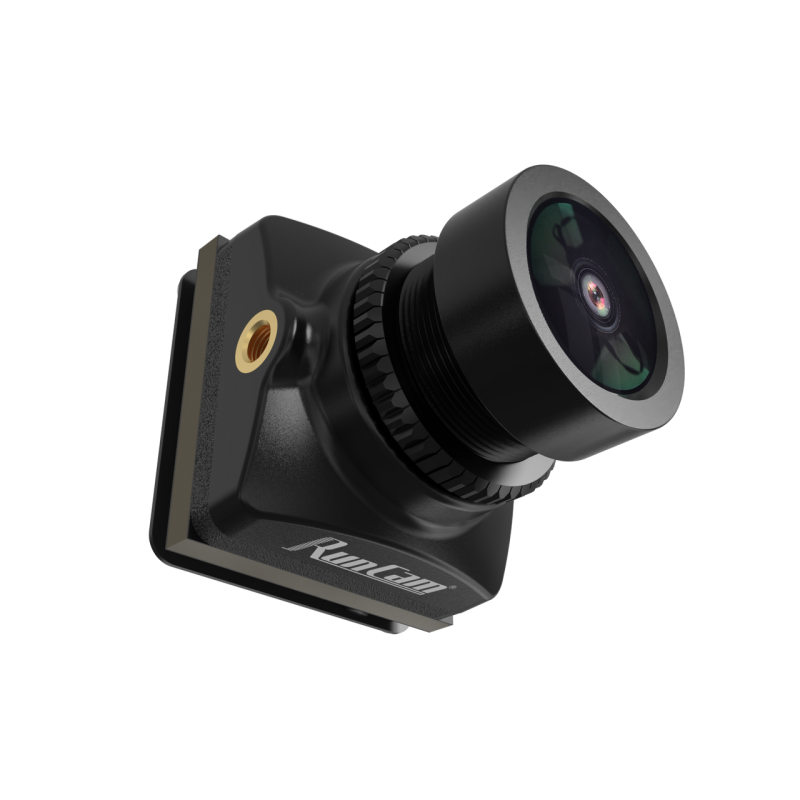

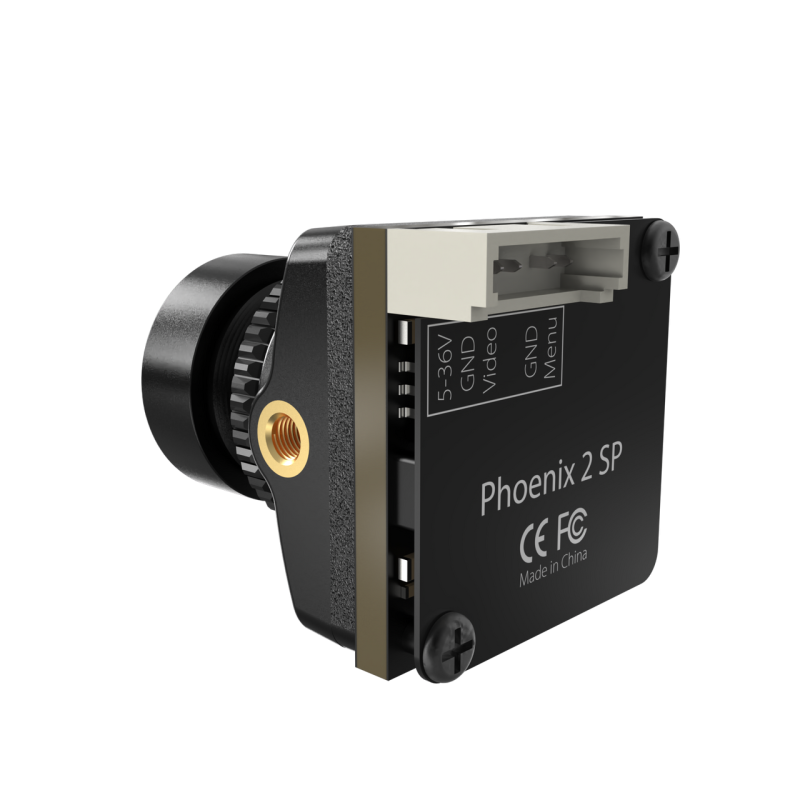

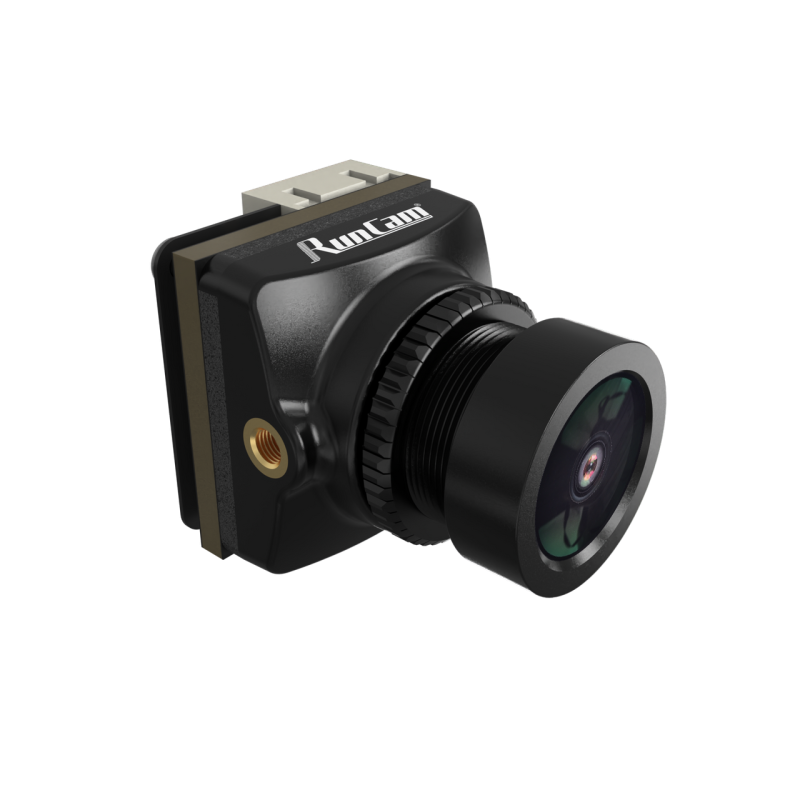

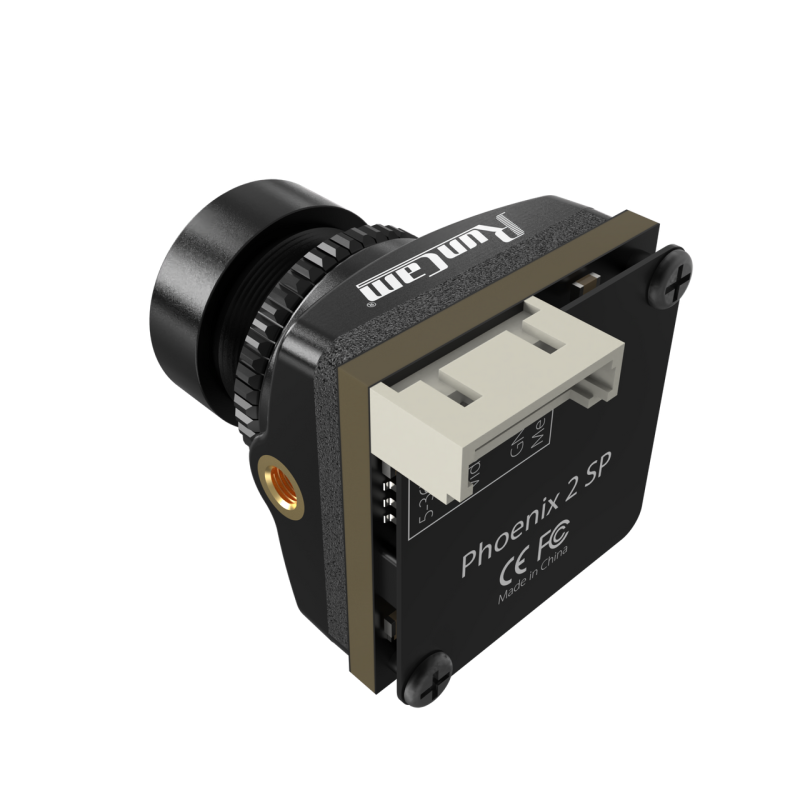

RunCam Phoenix 2 SP v3 FPV Camera
Brand: RunCam. This compact and lightweight FPV camera is designed for drones and quadcopters where high sensitivity, a wide-angle panorama, and stable image transmission are crucial in all flight conditions.
Description and Key Features
The RunCam Phoenix2 SP is a professional FPV camera with a 1/2.8″ Starlight COMS Sensor, providing a horizontal resolution of up to 1500TVL. The camera supports 4:3 and 16:9 screen formats and offers mirror and flip modes for convenient mounting on the drone chassis. Signal system: NTSC/PAL, shutter — Rolling Shutter. The camera operates in day/night mode: Color/B&W, equipped with global WDR for better quality in high-contrast scenes.
| Parameter | Value |
|---|---|
| Product Name | RunCam Phoenix2 SP |
| Image Sensor | 1/2.8″ Starlight COMS Sensor |
| Horizontal Resolution | 1500TVL |
| Lens (FOV) | FOV D:155° H:122° V:92°; FOV D:138° H:122° V:68° |
| Screen Format | 4:3, 16:9 |
| Mirror / Flip | Available |
| Signal System | NTSC/PAL |
| Shutter | Rolling Shutter |
| Sensitivity | 15000mV/Lux•sec |
| WDR | Global WDR |
| Day/Night Mode | Color/B&W |
| Menu Control | Cable Control |
| Power Supply | DC 5-36V |
| Current Consumption | 120mA at 5V, 220mA at 12V |
| Housing Material | ABS |
| Net Weight | 7.5 g |
| Dimensions | 19mm x 19mm x 21mm |
Advantages of RunCam Phoenix2 SP
The camera combines high 1500TVL resolution and exceptional 15000mV/Lux•sec sensitivity, allowing for a clear image in both daylight and low-light conditions. Global WDR enhances detail in high-contrast scenes, while support for two screen formats and signal systems makes the camera versatile for various transmitters and monitors.
Mounting and Compatibility
The ABS housing provides lightness and sufficient durability, while its compact dimensions and low weight (7.5 g) make the Phoenix2 SP an ideal choice for racing and lightweight frames. Cable-controlled menu simplifies parameter adjustment directly on board. DC 5-36V power allows connection to a wide range of power sources.
Package Contents
- 1x Camera
- 1x 6pin FPV silicone cable
- 1x Manual
- 1x Screw set
The RunCam Phoenix 2 SP v3 is an excellent choice for pilots seeking a compact, lightweight, and sensitive FPV camera with high resolution and a wide field of view. It is suitable for racing drones, freestyle flights, and other applications where image quality and reliable performance in various conditions are important.
