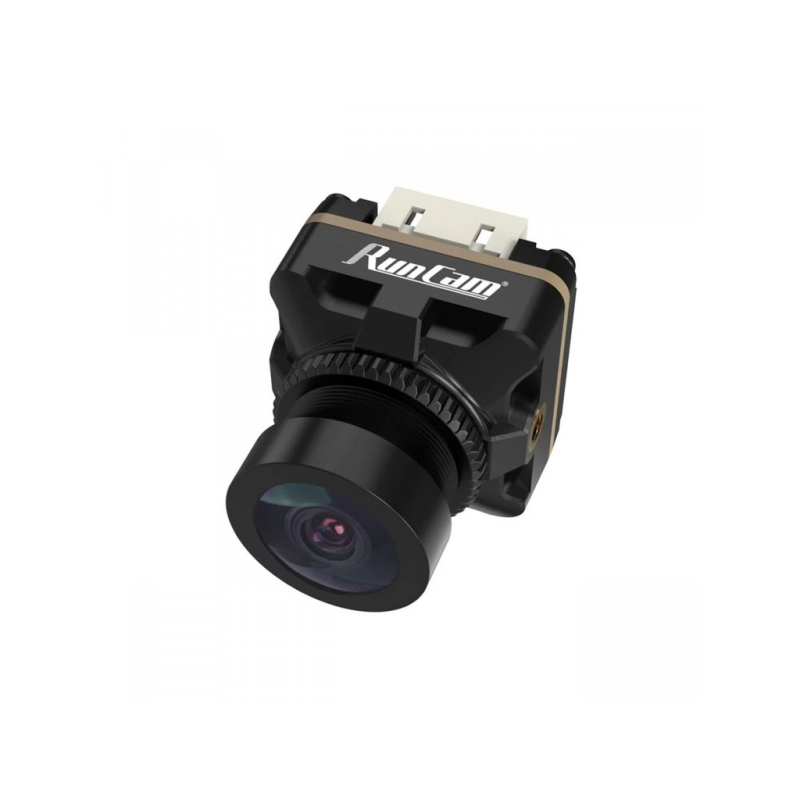

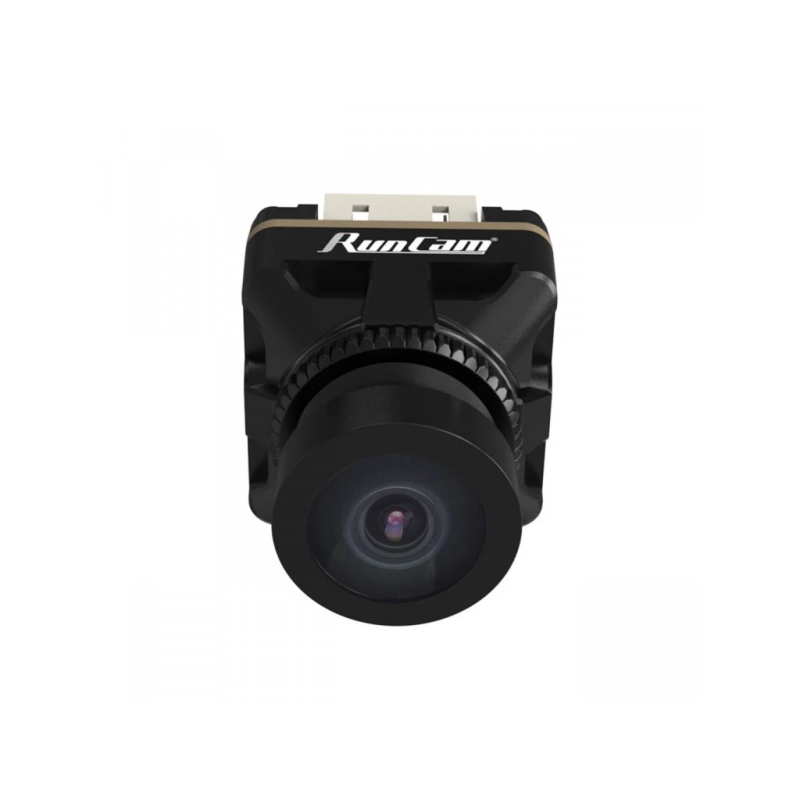

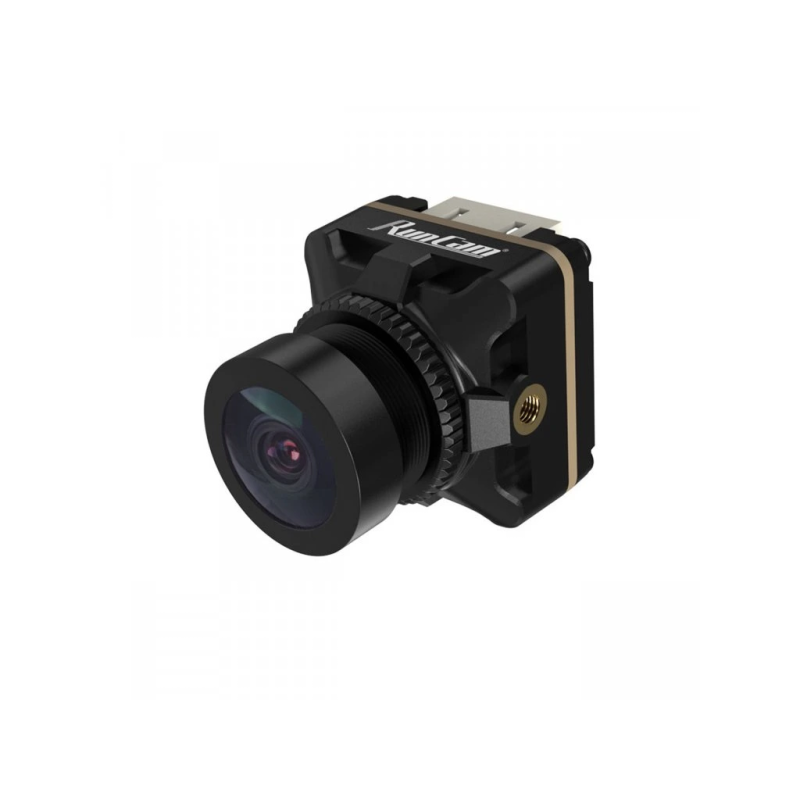

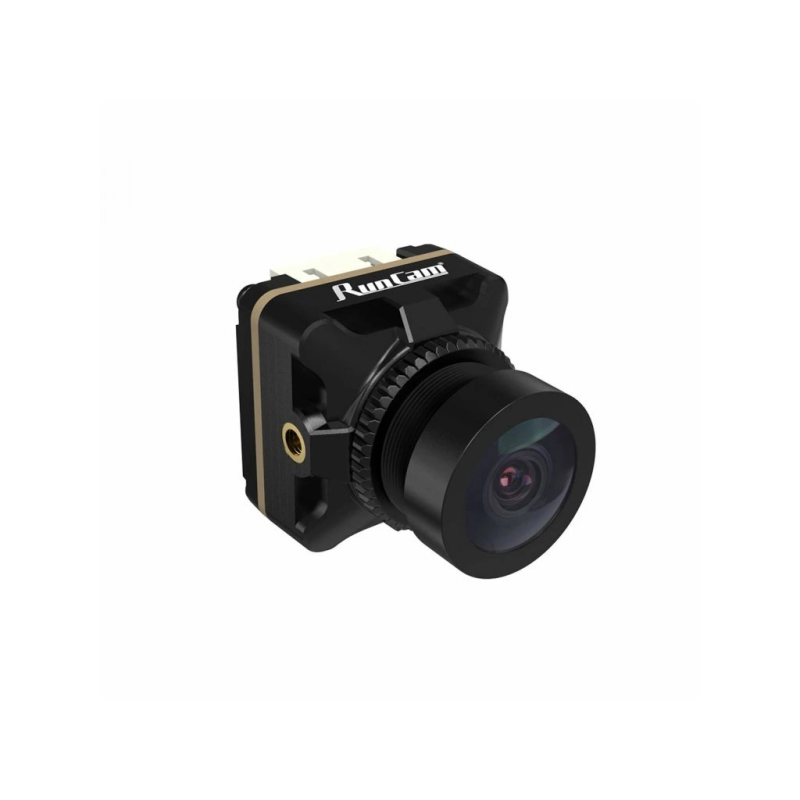

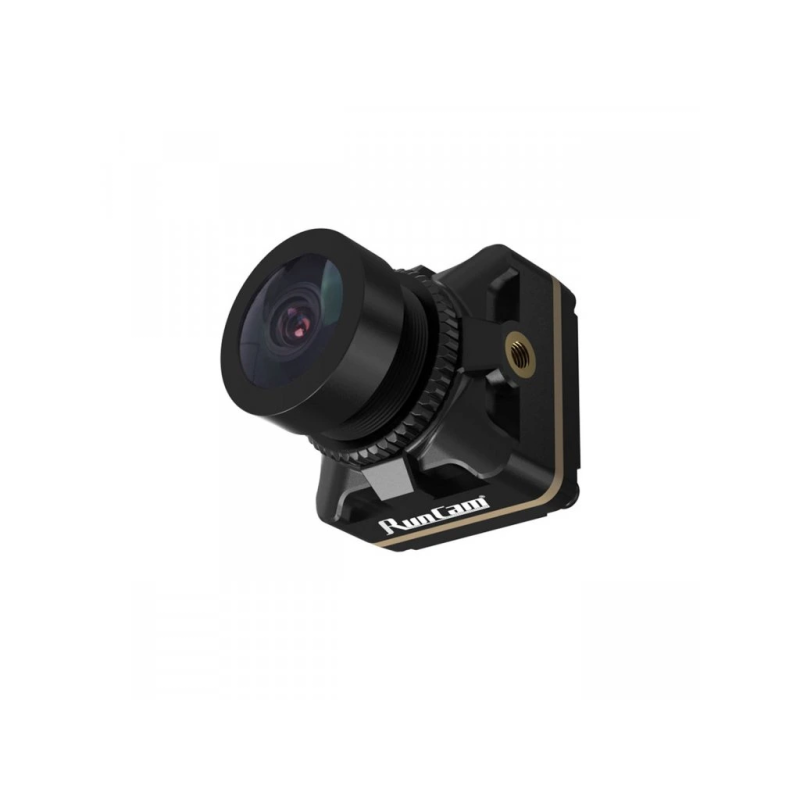

RunCam Phoenix 2 SE V2 FPV Camera

RunCam Phoenix 2 SE V2 is a high-quality FPV camera for day and night flights, designed specifically for drones and quadcopters. It provides a clear and realistic image thanks to its 1/2" CMOS sensor and 1000TVL resolution. The camera is equipped with global WDR, which allows for high-quality images in challenging lighting conditions, with high contrast between bright and dark areas of the scene.
This model supports switchable image formats 4:3 / 16:9 and video system switching PAL/NTSC, making it compatible with a wide range of analog FPV systems. The camera body is made of ABS and features a fully enclosed dustproof rear cover and a replaceable sun visor for additional optics protection. Power is supplied in a wide range of DC 5-36V, ensuring compatibility with various flight control systems and batteries.

Features Overview

The camera offers a wide field of view FOV D:160° H:124° V:95° @ F 2.4, allowing the pilot to get the most complete picture during maneuvers and freestyle. Available "Day/Night" modes — Color/B&W/EXT/Auto, mirror and flip functions for convenient mounting, and control via a cable menu interface.

Technical Specifications

• Model: RunCam Phoenix 2 SE V2
• Manufacturer: RunCam
• Category: Drones & Quadcopters > Cameras
• Sensor: 1/2" CMOS Sensor
• Resolution: 1000TVL
• Lens / Field of View: FOV D:160° H:124° V:95° @ F 2.4
• Image Format: 4:3 / 16:9 (switchable)
• Mirror/Flip Function: Yes
• Video System: PAL/NTSC (switchable)
• Shutter Type: Rolling Shutter
• Sensitivity: 10650 mV/Lux-sec
• WDR: Global WDR
• Day/Night Modes: Color/B&W/EXT/Auto
• Control Menu: Cable
• Power Supply: DC 5-36V
• Current Consumption: 200mA @ 5V, 80mA @ 12V
• Housing Material: ABS
• Weight: 8.6 g
• Dimensions: 19 mm × 19 mm × 22 mm

Package Contents

• 1x RunCam Phoenix 2 SE V2 Camera
• 1x 6pin FPV Silicone Cable
• 1x Manual
• 1x Screw Set

This camera is ideal for pilots looking for a reliable module for analog FPV systems with excellent image quality in various lighting conditions. Thanks to its wide power supply range, compact dimensions, and low weight, it easily integrates into various drone frames and mounting solutions. The built-in global WDR, high sensitivity, and wide field of view allow for confident spatial orientation during fast maneuvers and high-speed filming.

The original product description also includes illustrations and mounting diagrams:../image/catalog/description/wp-content-uploads-2023-08-1.png,../image/catalog/description/wp-content-uploads-2023-08-2.png,../image/catalog/description/wp-content-uploads-2023-08-3.png,../image/catalog/description/wp-content-uploads-2023-08-4.png,../image/catalog/description/wp-content-uploads-2023-08-5.png
