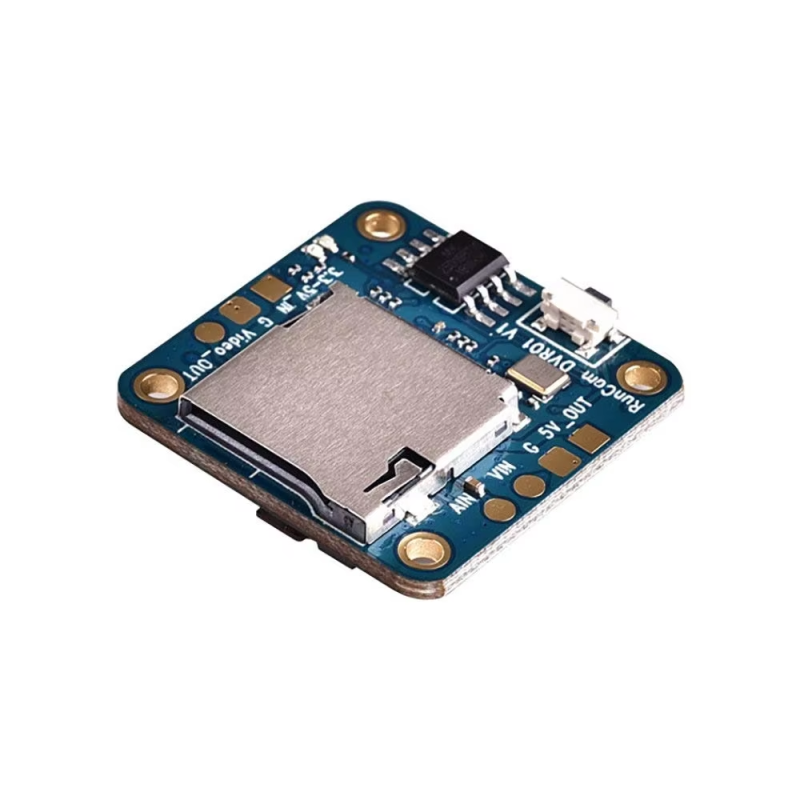

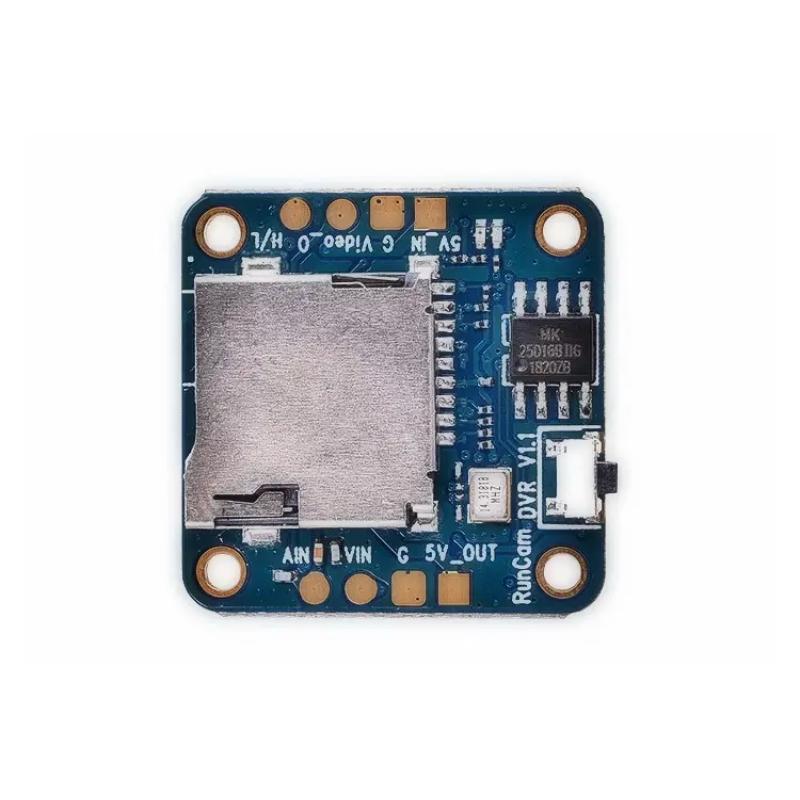

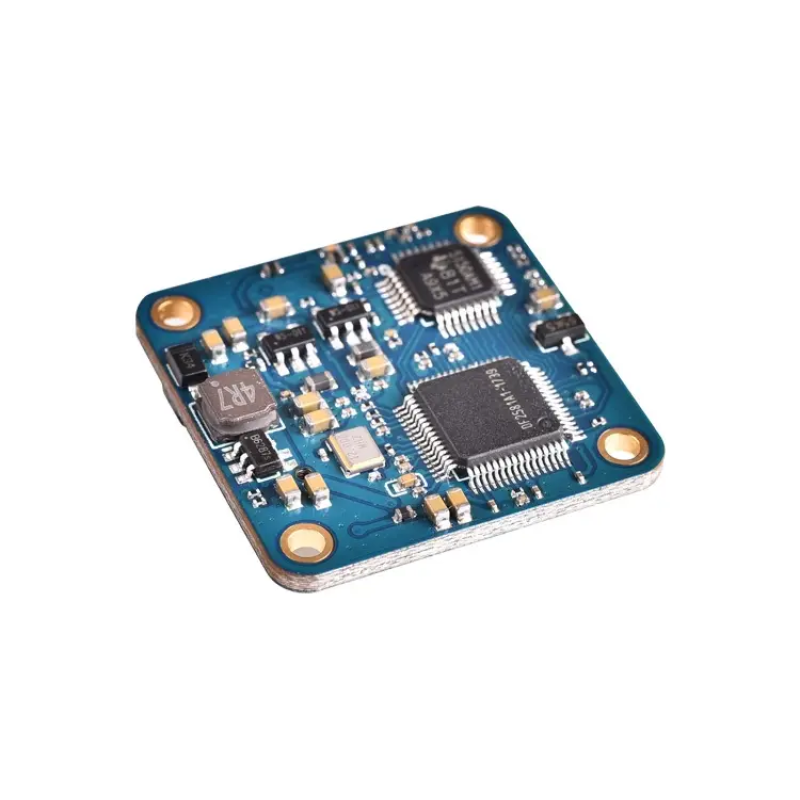

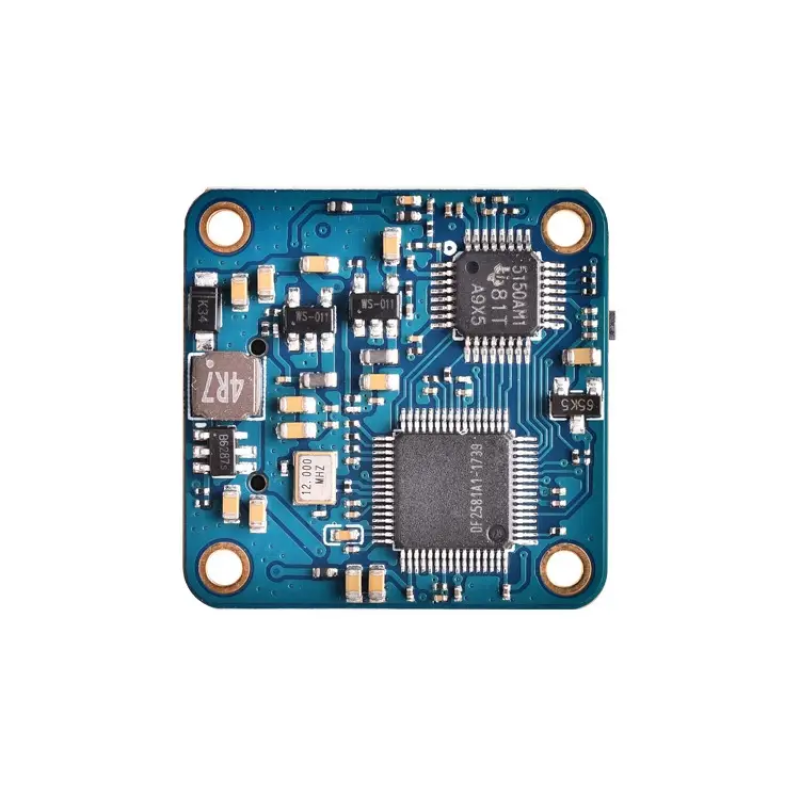

RunCam Mini FPV DVR 640x480

Brand: RunCam. Product type: Drones & Quadcopters > Transmitters.

Device overview: The RunCam Mini FPV DVR 640x480 is a compact, ultralight, and reliable digital video recorder designed specifically for FPV systems. The device is ideal for mini-drones and UAVs where minimal weight (3.5 g), small dimensions (25×25 mm), and easy installation on a standard 20×20 mm M2 mount are crucial. It records analog CVBS video signals, making integration with most FPV cameras and transmitters simple and fast.

Technical Specifications

• Power supply voltage: 3.3-5.5 V
• Current consumption: up to 250 mA
• Video input: CVBS @ 1Vp-p 75Ω
• Video output: CVBS @ 1Vp-p 75Ω
• Audio input: external microphone
• Video recording codec: MJPEG (AVI container)
• Resolution: VGA (640×480)
• Frame rate: 30 fps (NTSC); 25 fps (PAL)
• Storage: MicroSD up to 32 GB
• Mounting: 20×20 mm M2
• Dimensions: 25×25 mm
• Weight: 3.5 g

Features description: The RunCam Mini FPV DVR records video in MJPEG format within an AVI container, ensuring quick viewing and easy file editing on a computer. MicroSD support up to 32 GB allows for storing long flight recordings, and an external microphone enables additional audio capture when needed. The presence of standard CVBS 1Vp-p 75Ω video input and output guarantees compatibility with analog FPV cameras and transmitters, making the device a universal solution for various configurations.

Advantages and Applications

• Minimal weight of 3.5 g does not affect drone takeoff and flight characteristics.
• Compact dimensions of 25×25 mm and standard 20×20 mm M2 mounting facilitate installation in the frame and equipment replacement.
• NTSC and PAL support (30/25 fps) ensures compatibility with various video signal systems.
• Low consumption of up to 250 mA at 3.3–5.5 V makes the device energy-efficient for power from onboard systems.
• Ideal for amateur and semi-professional FPV filming, equipment testing, and "black box" data collection for incident analysis.

Package Contents

• DVR – 1 pc.
• Mounting hardware set – 1 pc.
• SD card anti-ejection guard – 1 pc.
• FPV cable – 1 set

Summary: The RunCam Mini FPV DVR 640×480 is a practical solution for those seeking a lightweight and compact DVR for analog FPV systems. The device combines ease of integration (CVBS), a convenient recording format (MJPEG in AVI), MicroSD support up to 32 GB, and low power consumption, making it an excellent choice for mini-drones and compact UAVs where weight and size limitations are critical.
