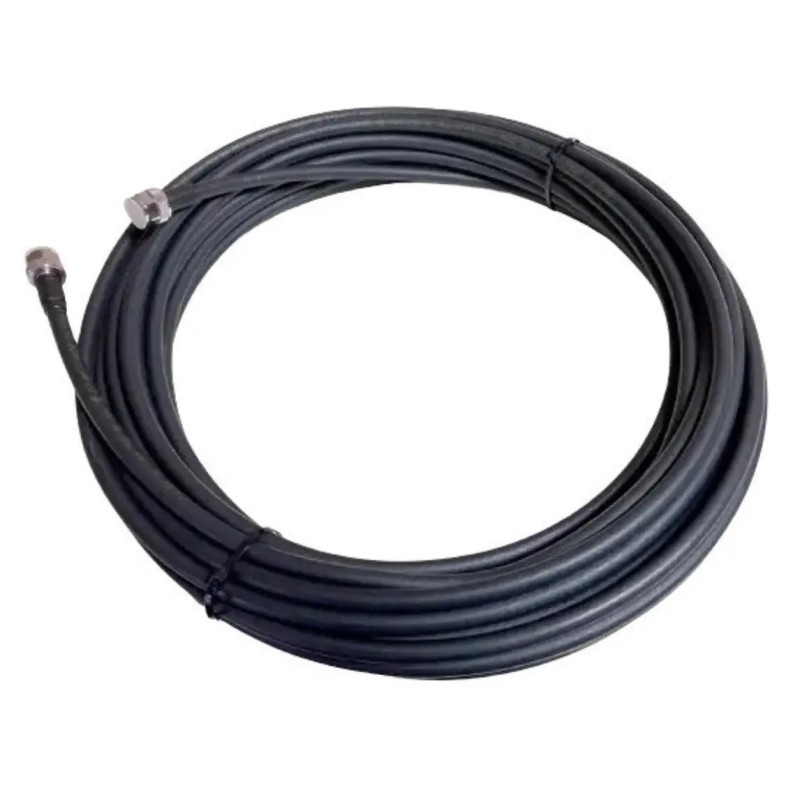

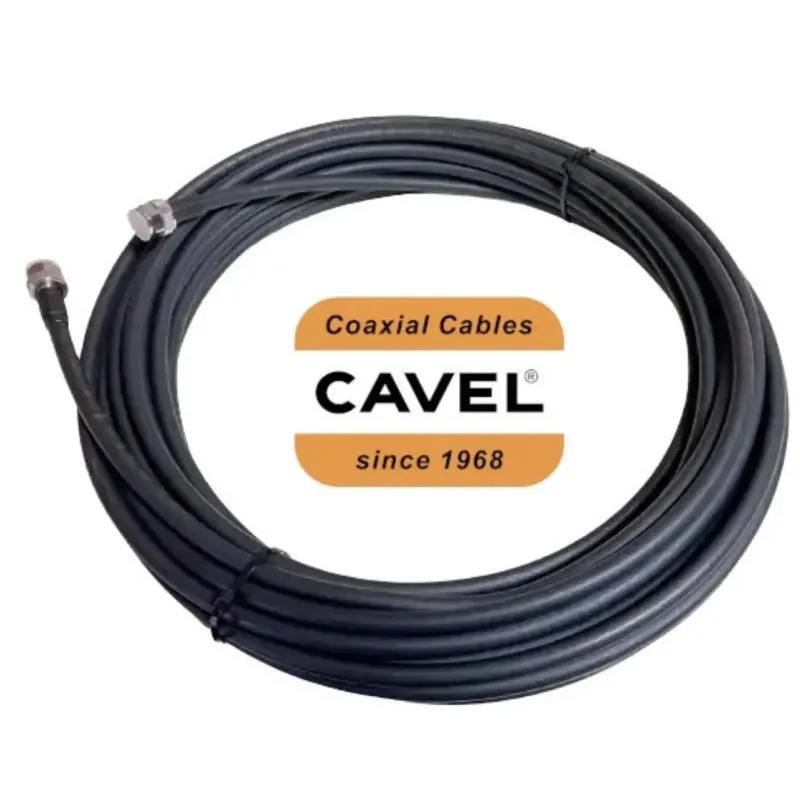

Original CAVEL WL240ZHN coaxial cable of high quality is manufactured in Italy by CAVEL. It is a radio frequency cable with a wave impedance of 50 Ohm, an outer diameter of 6.1 mm, and a black outer insulator. The central conductor of the cable is made of 100% copper. Thanks to high-quality materials and careful design, the cable ensures minimal signal loss even at high frequencies up to 5.8 GHz, has good insulation from external electromagnetic interference and environmental resistance, and is easy to pack.

If you are looking for a copper coaxial cable LMR 240 - 50 Ohm, CAVEL WL240ZHN will be an excellent alternative due to its excellent electromagnetic and mechanical properties.

Purpose:

CAVEL WL240ZHN coaxial cable is designed for transmitting radio frequency signals in various applications, including:

• Communication systems: connecting antennas to radio stations, repeaters, Wi-Fi routers, and other equipment.


• Telecommunications: use in mobile communication systems, television, and internet connections.


• Measuring equipment: connecting measuring instruments and signal generators.


• Radar and navigation: application in radar stations, GPS receivers, and other navigation systems.


• Wireless networks: creating reliable connections in Wi-Fi networks, video surveillance systems, and other wireless applications.



•
•
•

Technical specifications of CAVEL WL240ZHN:

•

  General:




  • Manufacture: Italy


  • Standard compliance: MIL-C-17


  • Cable color: Black


  • Installation: indoor and outdoor



  •
  •
  •


•

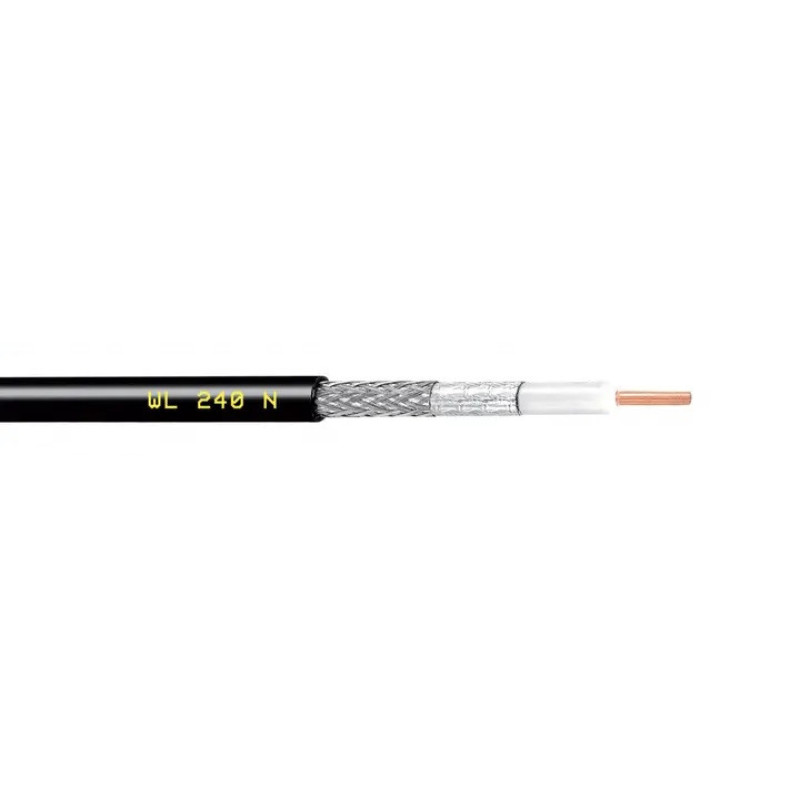

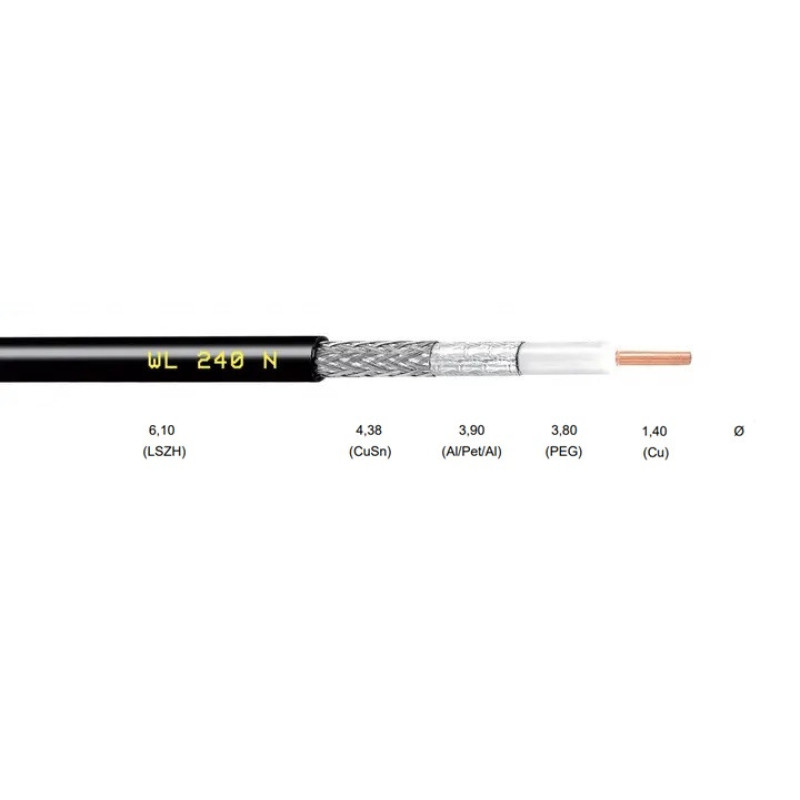

  Construction:




  • Central conductor: Cu (copper), diameter 1.4 mm


  • Dielectric: PEE (polyethylene), diameter 3.8 mm


  • Shield: Cu (copper), fill density 77%, diameter 4.38 mm


  • Outer jacket: LSZH compound (halogen-free), diameter 6.1 mm



  •
  •
  •


•

  Physical parameters:




  • Copper weight: 25.34 kg/km


  • Cable weight: 49.40 kg/km


  • Minimum bending radius: single/multiple - 60 mm


  • Tensile strength: 360 N



  •
  •
  •


•

  Electrical parameters:




  • Characteristic impedance: 50 Ohm


  • Capacitance: 82 pF/m


  • Velocity of propagation: 80%


  • Return loss: 5-470 MHz > 30 dB; 470-1000 MHz > 28 dB; 1000-2000 MHz > 24 dB; 2000-3000 MHz > 20 dB


  • Maximum power: 30 MHz - 1410 W; 50 MHz - 1090 W; 150 MHz - 620 W; 220 MHz - 510 W


  • Breakdown voltage: 5 kV



  •
  •
  •



•
•
•

Attenuation at 20 °C (dB/100 m):

The cable solders without problems.

Comparison table of losses for CAVEL WL240 type cables with LMR240, SLL-240, and Chinese SLL-240 analog cables (in dB/100m)

Comparison with other cable types

Advantages:

• Minimal signal loss.


• High flexibility.


• Resistance to external influences.


• Durability.


• Italian quality.


• 100% copper central conductor.



•
•
•

Compatibility:

CAVEL WL240ZHN cable is compatible with various radio frequency equipment operating in the frequency range up to 5.8 GHz and designed for use with LMR240 cable.
