Cables for Remote Antennas 3 meters (1.2, 3.8, 5.8 GHz) Blue Bird
Cables for remote antennas from BlueBird are designed to connect a drone detector to remote antennas and provide a reliable signal in standardized ranges. The cables have standardized operating frequency ranges: 1080−1800 MHz, 3000−4100 MHz, and 4900−6100 MHz, allowing them to be used with various electronic equipment. Thanks to the set of cables with SMA-male connectors, they can be easily integrated with devices that have SMA-female inputs.
Description and Compatibility

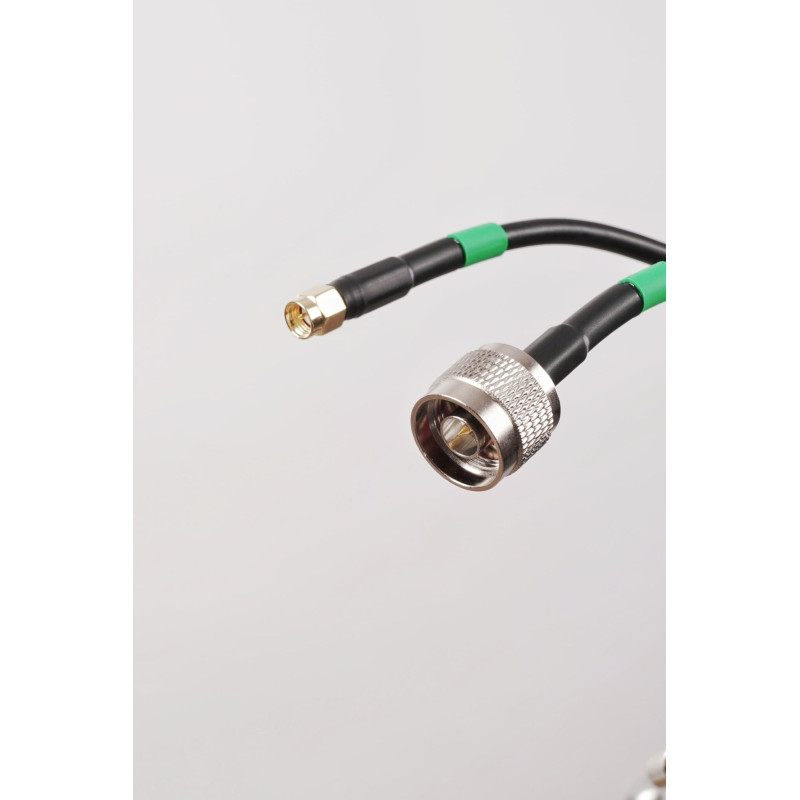

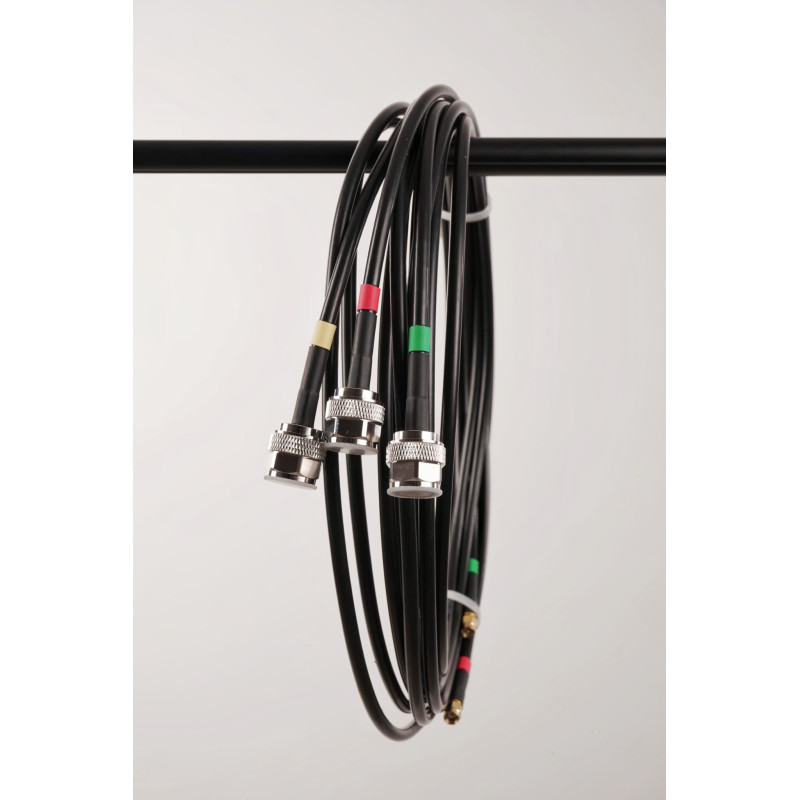

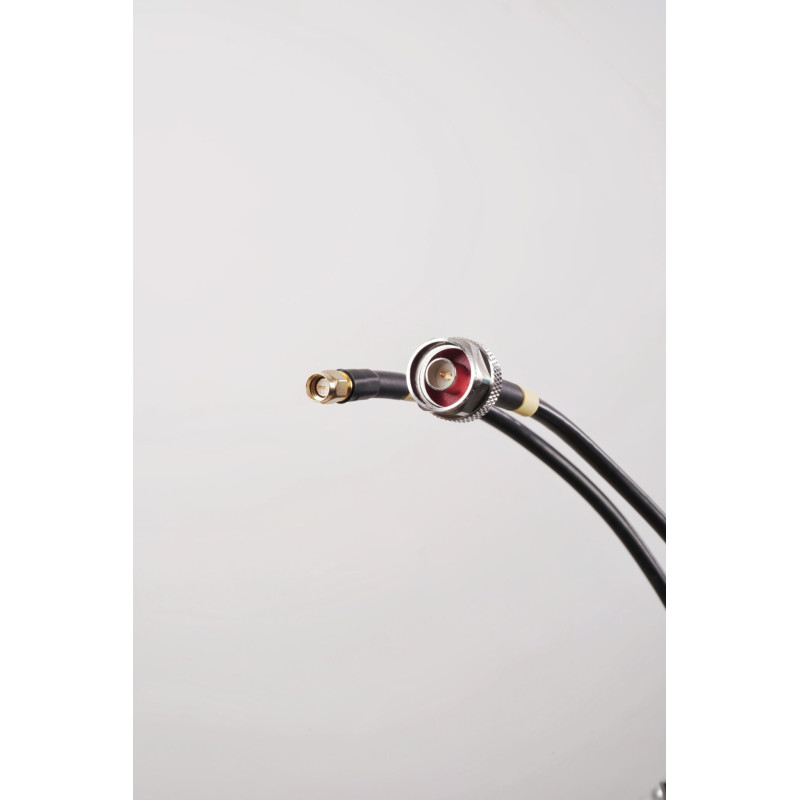

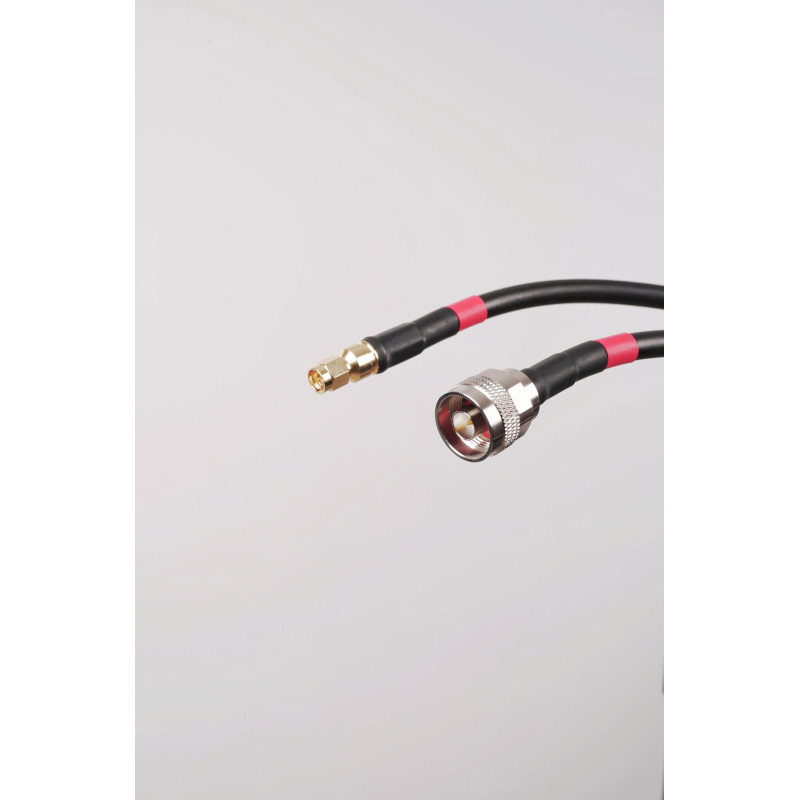

This kit includes cables for three bands, each cable is 3 m long. The design features an N-type male connector for the MBA and an SMA male connector for the SIGINT device. Cable type: SLL-240-SF*. This makes the kit a universal solution for installing remote antennas on mobile or stationary platforms from BlueBird and other manufacturers compatible with the respective connectors.
Technical Specifications
| Characteristic | Specification |
|---|---|
| Cable type | SLL-240-SF* |
| Cable length | 3 m |
| Connector to MBA | N-type male |
| Connector to SIGINT device | SMA male |
| Signal loss (attenuation) at 3 m | |
| – 1.2 GHz | ≈0.95 dB |
| – 3.3 GHz | ≈1.7 dB |
| – 5.8 GHz | ≈2.25 dB |
Package Contents
- Set of cables for 3 bands.
Advantages and Application
BlueBird cables are optimized for minimal signal loss at the stated frequencies, which is important when using drone detectors and radio monitoring systems. Reliable N-type male connectors ensure a strong and long-lasting connection to antennas, and SMA male connectors to transceivers. Thanks to the 3 m length, installation is convenient when mounting remote antennas on the chassis, tripod, or external equipment structure.
Product category: Antennas > Antenna Cables. Manufacturer: BlueBird.
Operating recommendations: avoid sharp bends of the cable and mechanical damage at the connector attachment points; before use, check the integrity of the insulation and the quality of the contacts. If extension is necessary, it is recommended to use certified adapters to maintain signal characteristics.
This cable set is suitable for professional and semi-professional use where optimal signal transmission in the 1080−1800 MHz, 3000−4100 MHz, and 4900−6100 MHz ranges is important. If you are looking for reliable cables for remote antennas with proven attenuation parameters and standard connectors, BlueBird offers a practical and effective solution.
