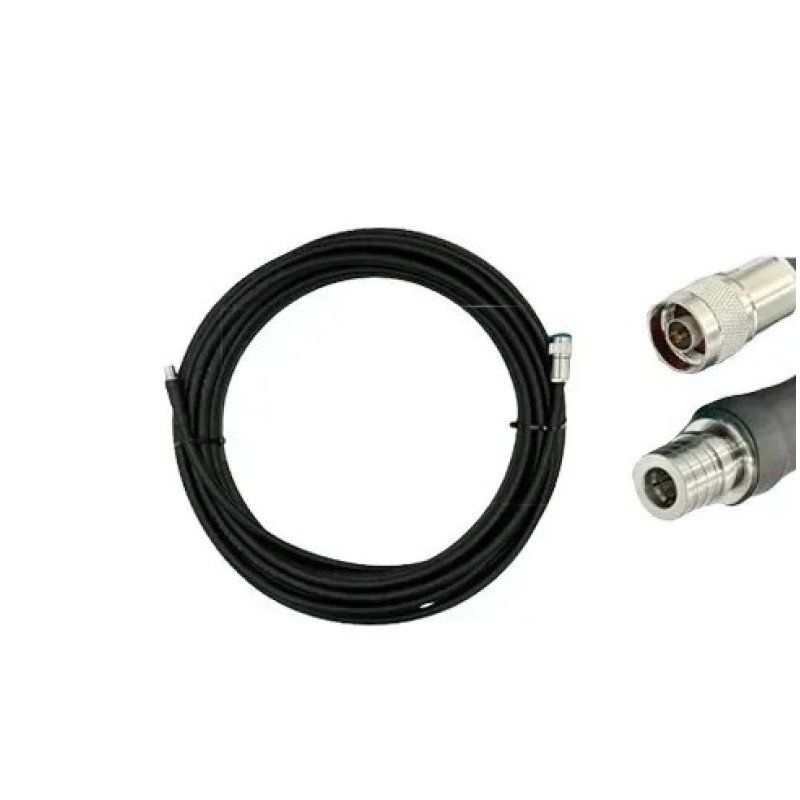

Avenge Angel Avenger 30m RG-8 Cable Kit (N-Type - QMA) (2 wires)
Brand: Avenge Angel. Purpose: 30m RG-8 coaxial antenna-signal cable with factory-crimped N-Type - QMA connectors, a set of two wires for connecting signal boosters and ensuring stable signal transmission between the antenna, repeater, and control panel of a quadcopter or stationary platform. This product belongs to the category: Antennas > Antenna Cables and is suitable for both field and stationary solutions where reliability and minimal losses are critical.
Compatible Boosters
Recommended for use with the following booster models:
- Skyrazor "Varta" 2.4G/5.2G/5.8G
- Skyrazor "Otaman" 2.4G/5.2G/5.8G
- AvengeAngel Avenger Booster
- Acasom ROC-4 / ROC-6
- Warmax "Booster"
- Aientech DEIMOX
Package Contents
- Two RG-8 cables, 30m each
- Factory-crimped connectors: N-Type - QMA
- Protective caps on connectors
- Packaging: coil or spool
- RG-8 technical specifications are listed below
RG-8 Technical Specifications
| Parameter | Value |
|---|---|
| Cable Impedance | 50 Ohm |
| Capacitance | 78 pF/m |
| Velocity of Propagation | 85% |
| Operating Frequency | up to 21 GHz |
| Peak Voltage | up to 16 kW |
| Spark Test | 8000 V (Vrms) |
| Weight | 80 g/m |
| Bend Radius | 51 mm |
| Temperature Range | -40…+80°C |
| RoHS Compliance | Yes |
Typical Signal Attenuation (dB/m)
| Frequency (MHz) | Attenuation |
|---|---|
| 400 | 0.10 |
| 1000 | 0.16 |
| 3000 | 0.28 |
| 5000 | 0.38 |
| 6000 | 0.42 |
Advantages
- Minimal signal loss even at 30m length due to high-quality RG-8 construction
- High-frequency support up to 21 GHz, opening a wide range of applications from FPV drones to professional communication systems
- Ready-made solution with factory-crimped connectors and protective caps, reducing installation time and effort
- Withstands harsh operating conditions — wide temperature range and resistance to atmospheric influences
Custom Manufacturing
If needed, cables of any length can be custom-made with various connection configurations. Available options include single-sided or double-sided crimping and connector replacement with N-Type, QMA, SMA, RP-SMA, TNC, and others. Supply in coils without connectors is also possible.
Areas of Application
- FPV drones and quadcopters (including DJI Mavic and Autel models)
- Mobile and portable repeaters and communication boosters
- Combat platforms and mobile complexes
- Electronic warfare (EW) systems
- Stationary communication points with external antennas
This Avenge Angel RG-8 cable kit is ideal for both professional equipment and field solutions where connection reliability, minimal losses, and resistance to environmental conditions are important. The description retains all technical parameters: impedance 50 Ohm, capacitance 78 pF/m, velocity of propagation 85%, operating frequency up to 21 GHz, peak voltage up to 16 kW, spark test 8000 V (Vrms), weight 80 g/m, bend radius 51 mm, temperature range -40…+80°C, and RoHS compliance. Product type: Antennas > Antenna Cables. The product is supplied in a coil or spool; the kit consists of two 30m cables with factory-crimped N-Type - QMA connectors and protective caps; custom manufacturing with other connectors is possible.
