Product Code: FA38-EVG076-38
In Stock
3 080 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA / RP-SMA / N-type
Material:
copper/brass
Polarization:
circular RHCP
Weight (depends on size):
120–250 g
Frequency range:
6.0–7.5 GHz
All specifications
We will deliver this product:
Payment
Bought together with
Pigtail RG402 20cm (SMA)
275 грн.
Helical 6.0-7.5 GHz RHCP 15 cm (10T)
2 420 грн.
Antenna Helix 4.2-6.0 GHz 10 turns Skyvision
1 399 грн.
1 100 грн.
Helical 7.0-8.2 GHz RHCP 15 cm (22V)
3 300 грн.
Helical 7.0-8.2 GHz RHCP 15 cm (18V)
3 080 грн.
Description

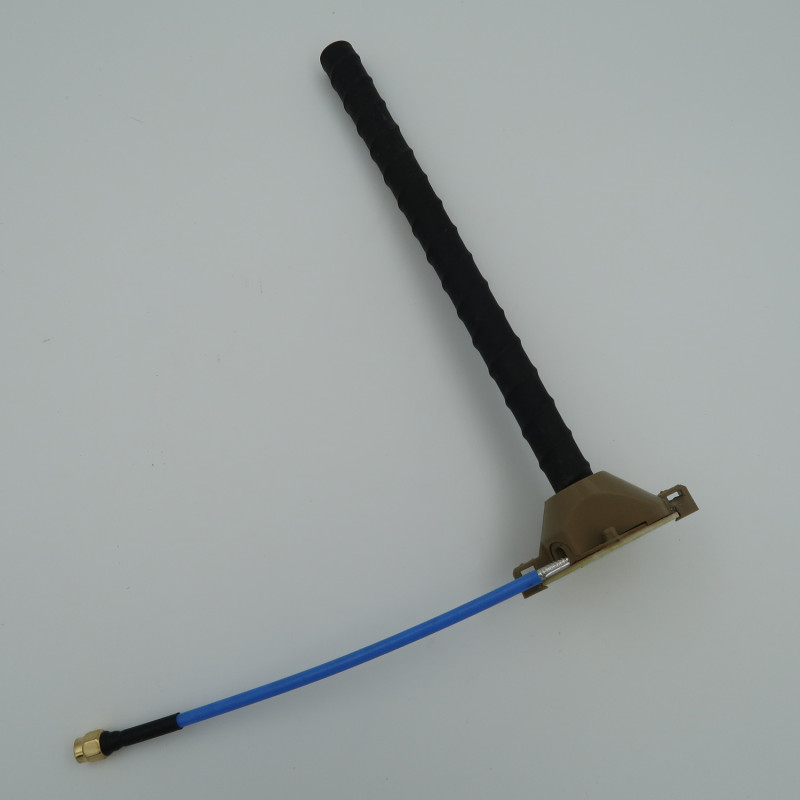

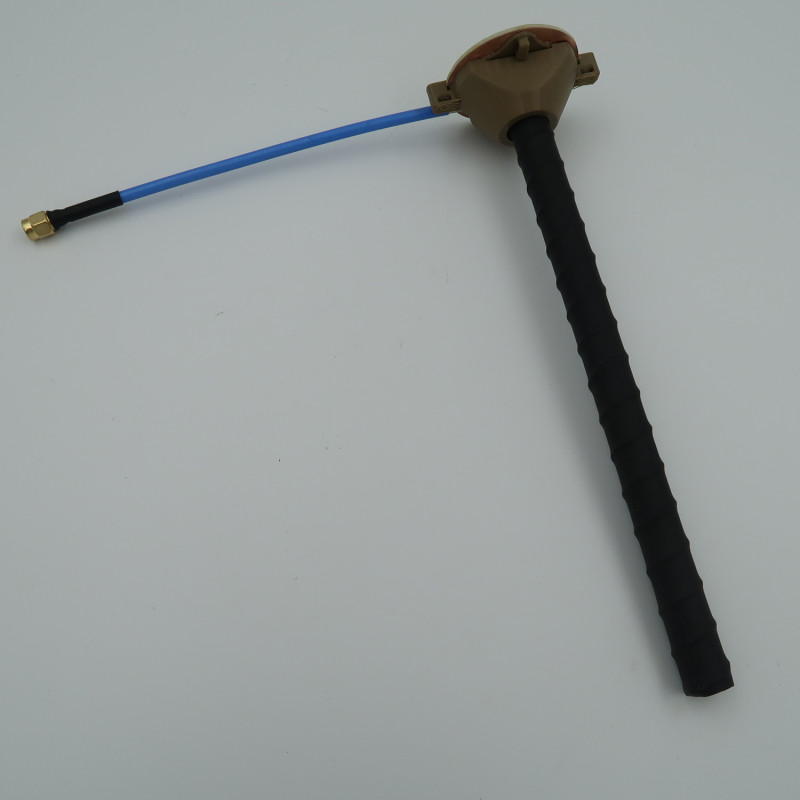

Helical Antenna 6.0–7.5 GHz RHCP, 15 cm (18 turns)
Directional Helical antenna with right-hand circular polarization (RHCP), optimized for operation in the 6.0–7.5 GHz range. With 18 turns, it provides high gain and a narrow beamwidth, making it effective for use in FPV systems, video links, and electronic warfare solutions.
Key Features
- Antenna Type: Helical (spiral)
- Polarization: RHCP (right-hand circular)
- Frequency Range: 6.0 – 7.5 GHz
- Number of Turns: 18
- Antenna Length: ~15 cm
- Gain: 18–22 dBi
- Beamwidth: ~20–35°
- Impedance: 50 Ohm

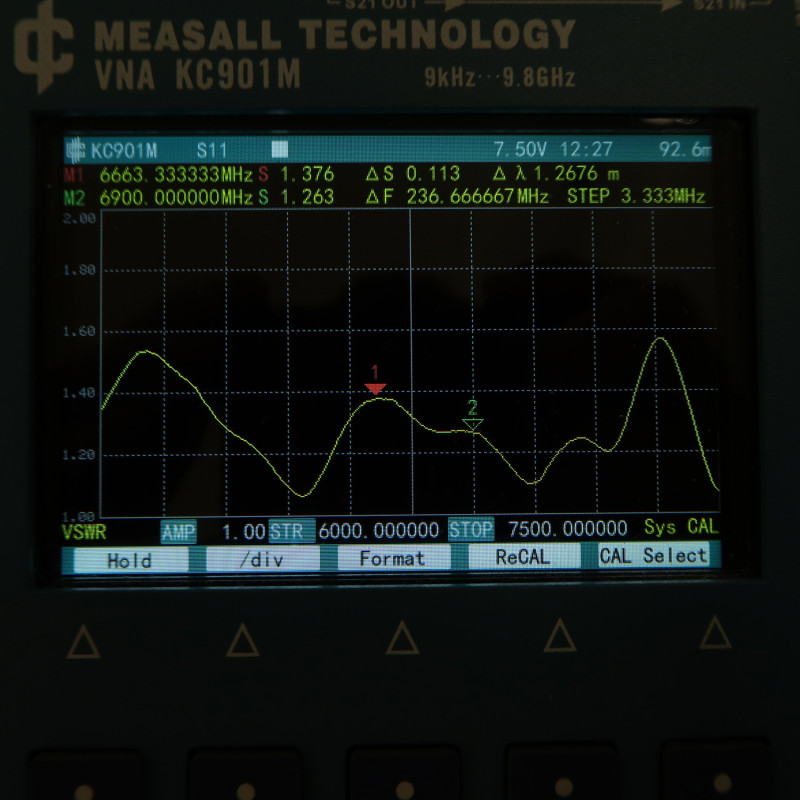

- SWR: ≤ 1.5
Construction and Materials
- Radiator Material: copper / brass
- Reflector: metal (aluminum / metallized FR-4)
- Housing: open or protective (depending on version)
- Connector Type: SMA / RP-SMA / N-type (custom order)

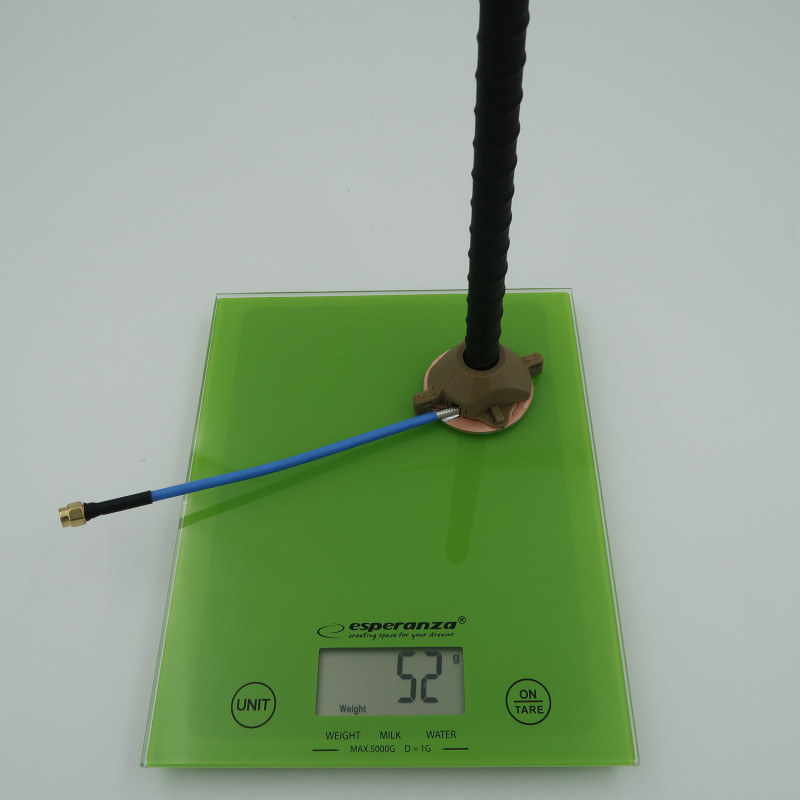

- Weight: ~120–250 g
Advantages
- High gain for long-range communication
- Resistance to multipath signal propagation
- Compatibility with RHCP antennas (reduced signal loss)
- Narrow directional beam for precise targeting
- Reliable operation in complex radio environments
Specifications
Connector type
SMA / RP-SMA / N-type
Material
copper/brass
Polarization
circular RHCP
Weight (depends on size)
120–250 g
Size
15 cm
Antennas
Frequency range
6.0–7.5 GHz
Beam angle
20–35°
Enhancements
18–22 dBi
