Product Code: FA38-EVG155-38
In Stock
3 080 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA / RP-SMA / N-type
Housing type:
spiral
Material:
copper / brass
Polarization:
circular RHCP
Weight (depends on size):
120–250 g
All specifications
We will deliver this product:
Payment
Bought together with
Helical 6.0-7.5 GHz RHCP 15 cm (18V)
3 080 грн.
Description

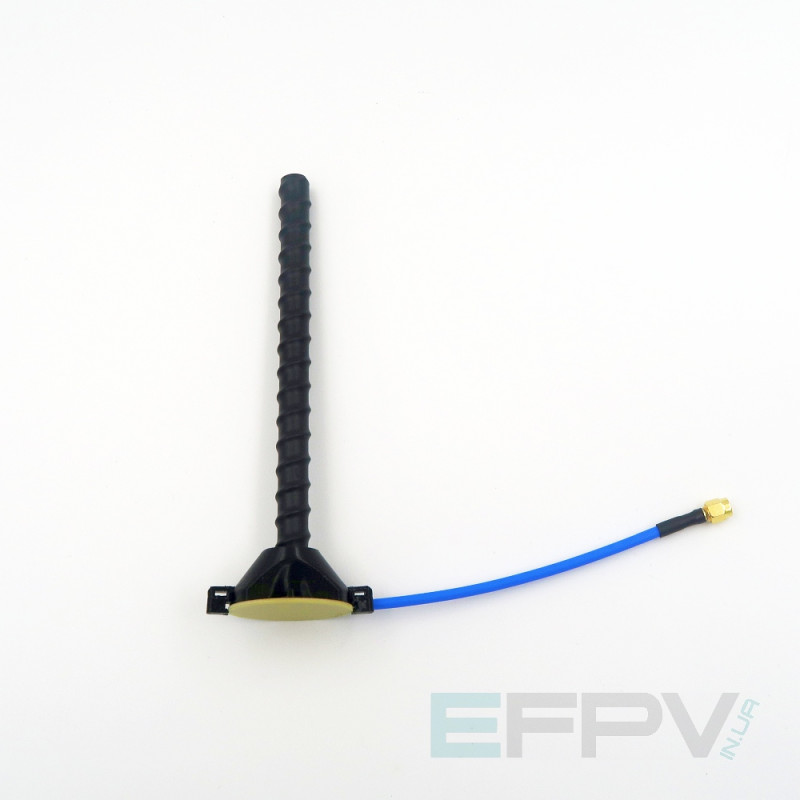

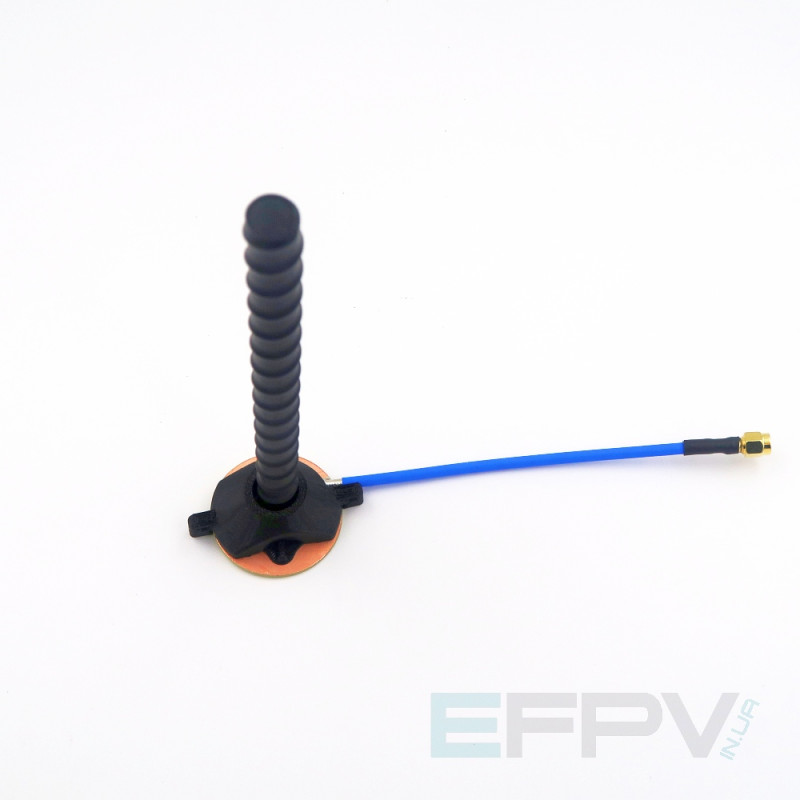

Helical Antenna 7.0–8.2 GHz RHCP, 15 cm (18 turns)
Directional Helical antenna with Right-Hand Circular Polarization (RHCP), designed for operation in the 7.0–8.2 GHz range. The 18-turn model provides high gain and a narrow beamwidth, increasing the efficiency of signal transmission and reception at medium and long distances.
Key Features
- Antenna type: Helical
- Polarization: RHCP (Right-Hand Circular)
- Frequency range: 7.0 – 8.2 GHz
- Number of turns: 18
- Antenna length: ~15 cm
- Gain: 18–22 dBi
- Beamwidth: ~20–35°
- Impedance: 50 Ohm

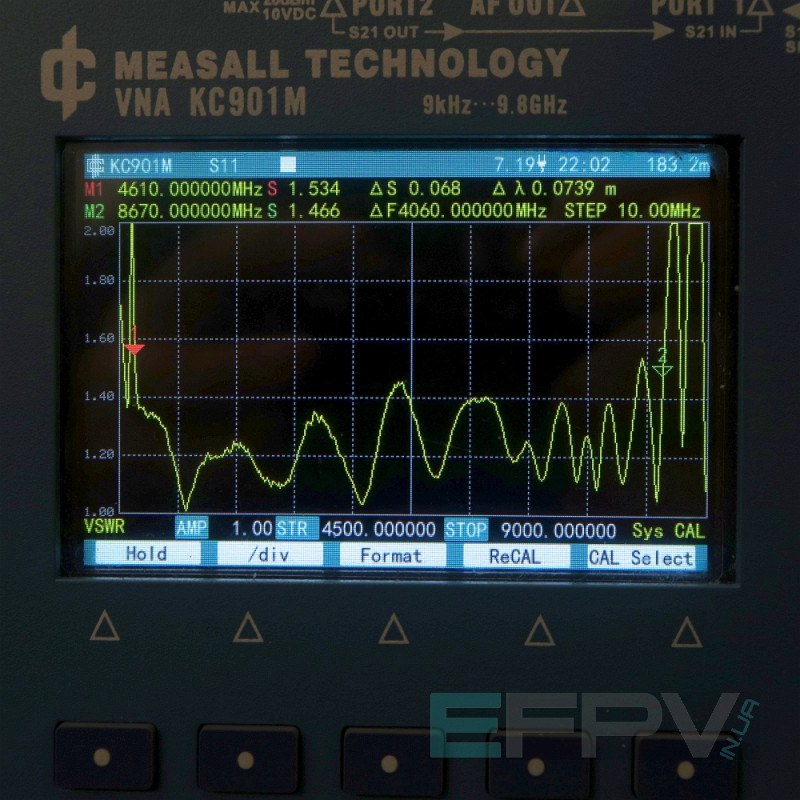

- SWR: ≤ 1.5
Construction and Materials
- Radiator material: copper / brass
- Housing: open or protective cover
- Connector type: SMA / RP-SMA / N-type
- Weight: ~120–250 g
Specifications
Connector type
SMA / RP-SMA / N-type
Housing type
spiral
Material
copper / brass
Polarization
circular RHCP
Weight (depends on size)
120–250 g
Size
15 cm
Antennas
Frequency range
7.0–8.2 GHz
Beam angle
20–35°
Enhancements
18–22 dBi
