Body Armor Class 6 «Pixel (MM14)» — Specprom

The «Pixel (MM14)» body armor from Specprom is a comprehensive military equipment solution in the category Military Equipment > Body Armor > Body Armor Class 6 Protection, providing the highest level of protection according to DSTU/NIJ — Class 6 (equivalent to NIJ IV 0101.06). The total weight of the kit is only 6.2 kg, making it one of the most compact and effective solutions for professionals.

Kit includes: two ceramic armor plates of Class 6 (each weighing — 2.8 kg) and a Warmor Gen 3 plate carrier. The plate carrier features an improved quick-release system with super soft shoulder pads made of Cordura 1000d material, and Italian-made hardware for instant removal in 1 second.

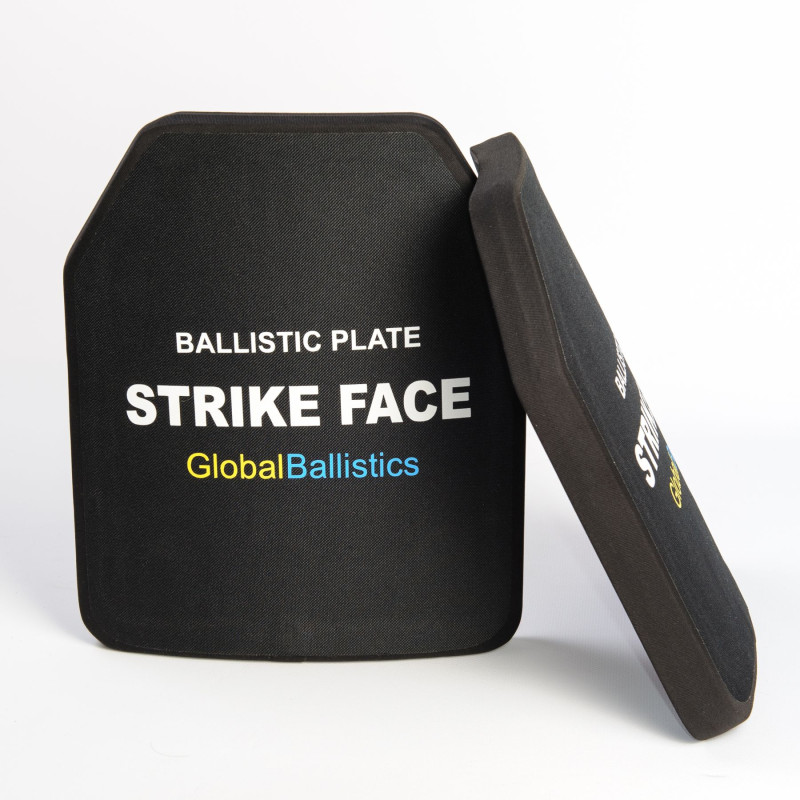

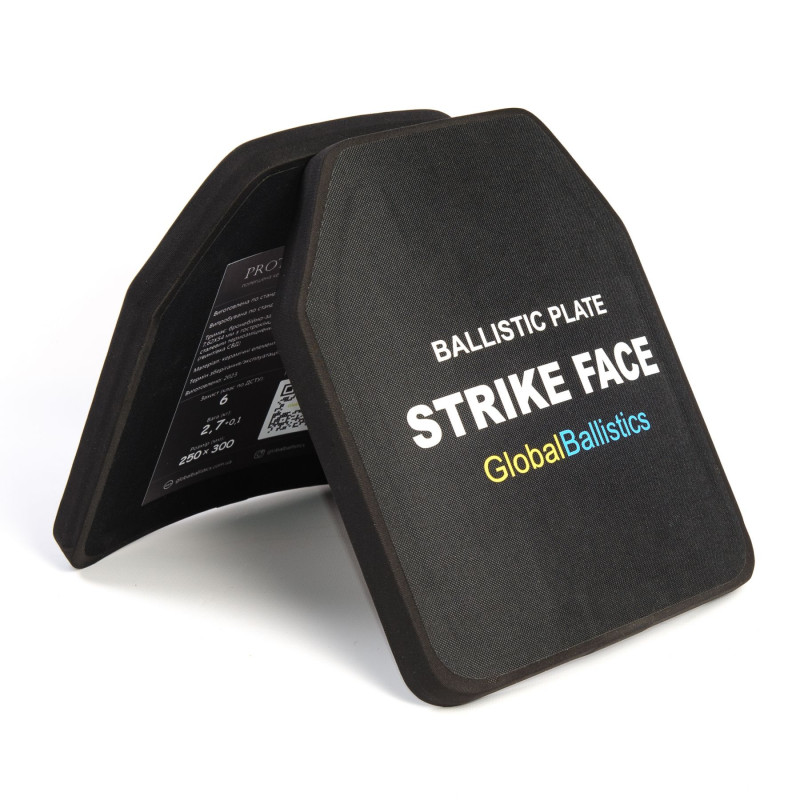

Armor Plate Specifications

The armor plates are made of ceramic (aluminum oxide Al2O3) combined with UHMWPE (ultra-high-molecular-weight polyethylene), which reduces blunt trauma deformation and minimizes injury after penetration. The plate thickness is — 24 mm, the plates are anatomically curved for a better fit to the body and have an informative sticker on the back. A copy of the laboratory test protocol is included with the kit.

• Protection Class: 6 (NIJ IV)
• Material: ceramic (Al2O3) + UHMWPE
• Thickness: 24 mm
• Anatomical curve for better fit

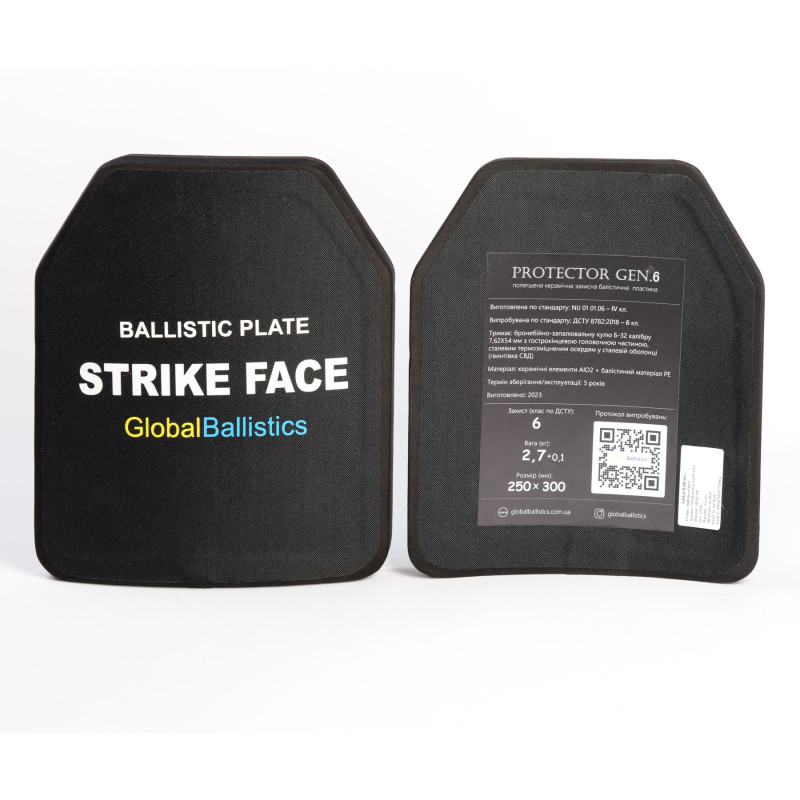

• Informative sticker and test certificate included

According to professional information, the plates withstand an armor-piercing incendiary bullet B-32 caliber 7.62x54 with a pointed tip and a steel heat-strengthened core (fired from an SVD sniper rifle from a distance of 10 m). The maximum depth of backface deformation is 17–20 mm. Only Class 6 body armor according to DSTU standards withstands three hits from a B-32 bullet from a distance of 10 m with a total kit weight of 6.2 kg.

About the Warmor Gen 3 Plate Carrier

The plate carrier is designed for standard ballistic plates measuring 250x300 mm, which are secured by a double fastening system. The entire vest is equipped with a MOLLE system around the perimeter for attaching pouches for AK magazines, grenades, and other equipment. The shoulder pads have adjustable risers for positioning the plates by height. The side panels are attached with Velcro and allow for the insertion of side ballistic packages made of molecular polyethylene on a flexible base.

• Country of manufacture: Ukraine, Kryvyi Rih
• Total kit weight: 6.2 kg (including armor plates at 2.8 kg each)
• Plate carrier weight: 0.6 kg
• Plate size: 250x300 mm
• Kit: plate carrier + 3 AK magazine pouches
• Plate carrier material: Cordura 1000d
• Color: pixel
• Hardware: quick side and top release Italian hardware (removal in 1 sec)
• Ventilation: 3D damper with ventilation mesh
• Size: adjustable from S to XL
• Attachment: MOLLE system pouches can be attached around the entire perimeter + additional Velcro
• Side protection: straps with the ability to insert standard protective plates
• Additionally: interchangeable MOLLE front panel and front pocket

This kit is already used in the designs of special forces units of the US, French, UK, and other armies. The combination of ceramic and UHMWPE provides a high level of ballistic resistance with minimal weight, making the «Pixel (MM14)» body armor a reliable solution for military personnel, special forces, and professionals who require maximum protection.

All technical parameters, test certificates, and design features ensure transparency and trust: along with the armor plates, you receive a copy of the laboratory test protocol.
