Product Code: FA73-0106-73
In Stock
1 050 грн.
Buy this product in 1 click:
Main specifications
Connector type: SMA
Housing type: directional
Material: Plastic
Polarization: linear
Weight (depends on size): 22 g
All specifications
We will deliver this product:
Payment
Description

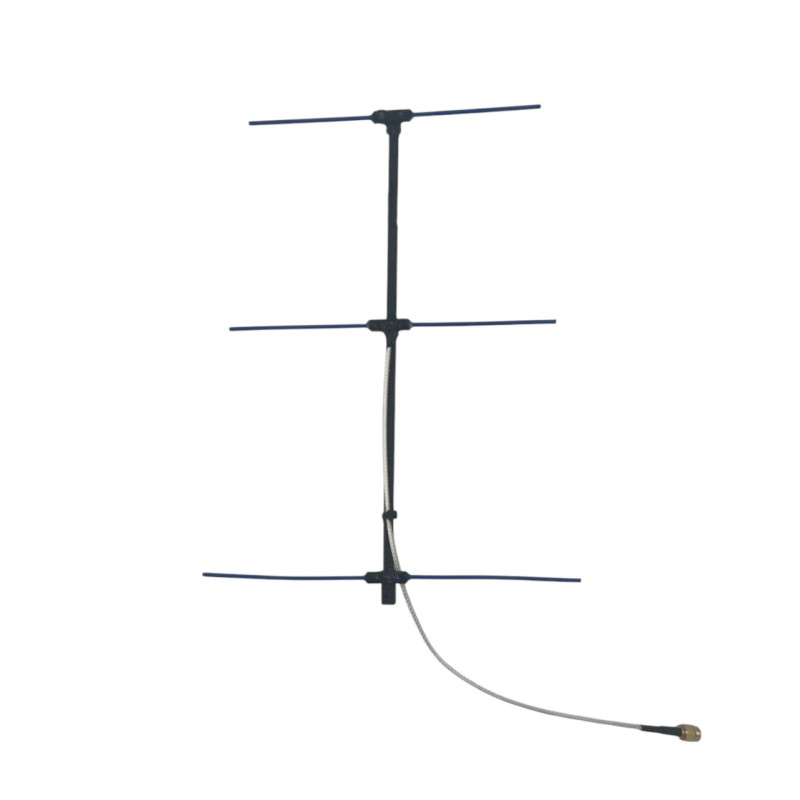

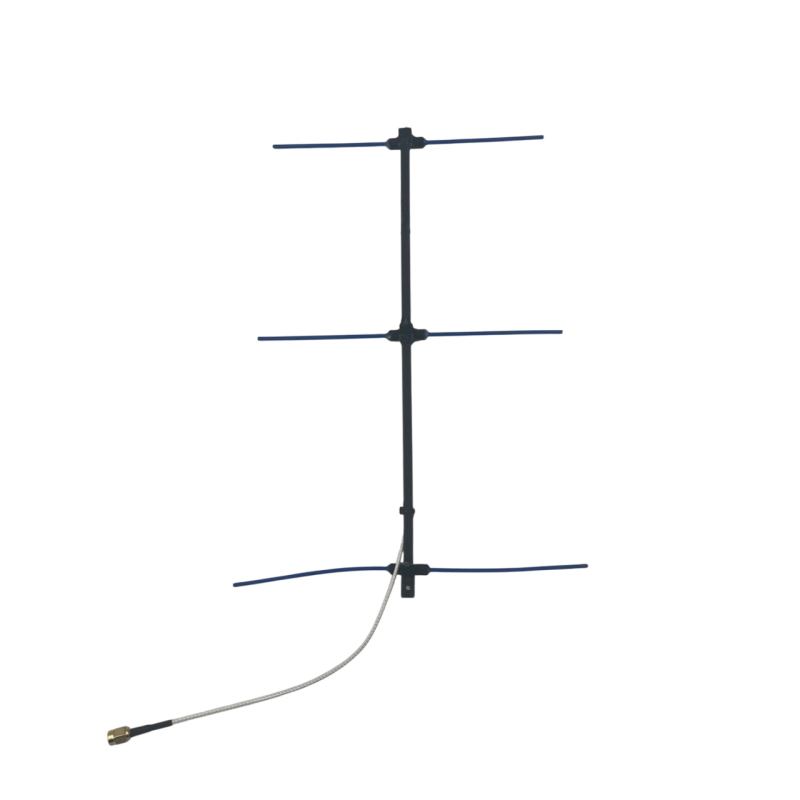

Yagi Antenna 900MHz for Flying Repeaters 7.7dBi SMA

Brand: SkyReach. Product Type: Antennas > Yagi Antennas. This directional Yagi antenna is specifically designed for FPV systems and flying repeaters, where signal stability and maximum communication range are critical.

The antenna operates in the 900 MHz band and has a gain of 7.7 dBi, providing a significant improvement in signal reception and transmission quality over long distances. Thanks to its linear polarization and high-quality design, it minimizes losses and interference, which is especially important for drone and portable repeater applications.

With its directional pattern and elongated lobe profile, the antenna allows for an increased effective flight range and repeater operation up to 15 km. A VSWR of no more than 1.1 guarantees minimal internal losses and high power transmission efficiency.

Available Frequencies

The antenna is available in several versions for different tasks and regional requirements:

  • 700 MHz
  • 750 MHz
  • 780 MHz
  • 800 MHz
  • 850 MHz
  • 900 MHz
  • 950 MHz
  • 1000 MHz
  • 1050 MHz

Technical Specifications

  • Frequency: 900 MHz (product version)
  • Polarization: Linear
  • Gain: 7.7 dBi
  • Connection cable length: 240 mm
  • Connector: SMA
  • Material: Plastic
  • Weight: 22 g

Package Contents

  • 1 x Directional Yagi Antenna

The antenna features a plastic casing, is lightweight, and can be easily mounted on repeater or drone bodies. The SMA connector ensures compatibility with most FPV systems and external modules. The 240 mm connection cable length allows for convenient antenna placement on the frame or body without additional extensions.

This antenna is ideal for applications requiring high directivity and signal clarity: long-range flights, signal repeaters, external receivers, and transmitters. The 7.7 dBi gain combined with a VSWR ≤ 1.1 provides an optimal balance between beam focusing and minimizing output power losses.

Manufacturer: SkyReach. The product belongs to the category: Yagi Antennas. Suitable for professional and amateur use, compatible with a wide range of equipment at 900 MHz and other listed versions.

Other products in this category here Yagi Antennas

Specifications
Connector type SMA
Housing type directional
Material Plastic
Polarization linear
Weight (depends on size) 22 g
Antennas
Frequency range 700 - 1050MHz
Enhancements 7.7 dBi
