Product Code: FA100-WHA-4972-14-1-100
In Stock
1 207 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Polarization:
RHCP / LHCP
Weight (depends on size):
31 g
Frequency range:
4.9–7.2 GHz
Beam angle:
35–47°
All specifications
We will deliver this product:
Payment
Bought together with
Moxon Antenna 2200 MHz (short)
1 100 грн.
-80x80.jpg "Yagi Antenna 2100-2200 MHz Plastic 8-9dBi")
Yagi Antenna 2100-2200 MHz Plastic 8-9dBi
1 100 грн.
Description

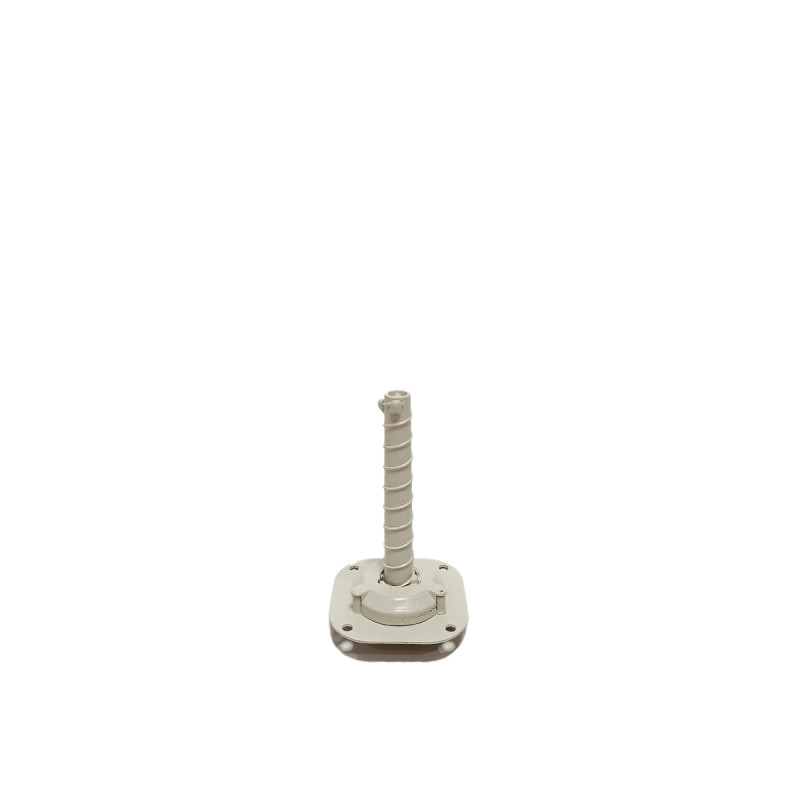

Broadband helical antenna for the 4.9 - 7.2 GHz band, RHCP or LHCP, gain from 11 dBi at 4.9 GHz to 14 dBi at 7.2 GHz. Beamwidth from 35 to 47 degrees. Optimized for use as part of a ground station.
Frequency range: 4.9-7.2 GHz
Beamwidth: 35-47 degrees
Number of turns: 14
Gain: 11-14 dBi
Polarization: RHCP or LHCP
VSWR: not more than 2
Connector: SMA
Dimensions: 64x64x105 mm
Weight: 31 g
Specifications
Connector type
SMA
Polarization
RHCP / LHCP
Weight (depends on size)
31 g
Size
64×64×105 mm
Antennas
Frequency range
4.9–7.2 GHz
Beam angle
35–47°
Enhancements
11–14 dBi
