Product Code: FA93-4848992-93
In Stock
900 грн.
Buy this product in 1 click:
Main specifications
Connector type:
BNC + R7A Adapter
Housing type:
external, Flower Pot design
Material:
coaxial cable (RG58 type) + polymer/heat-shrink jacket
Polarization:
vertical
Weight (depends on size):
300 g
All specifications
We will deliver this product:
Payment
Description

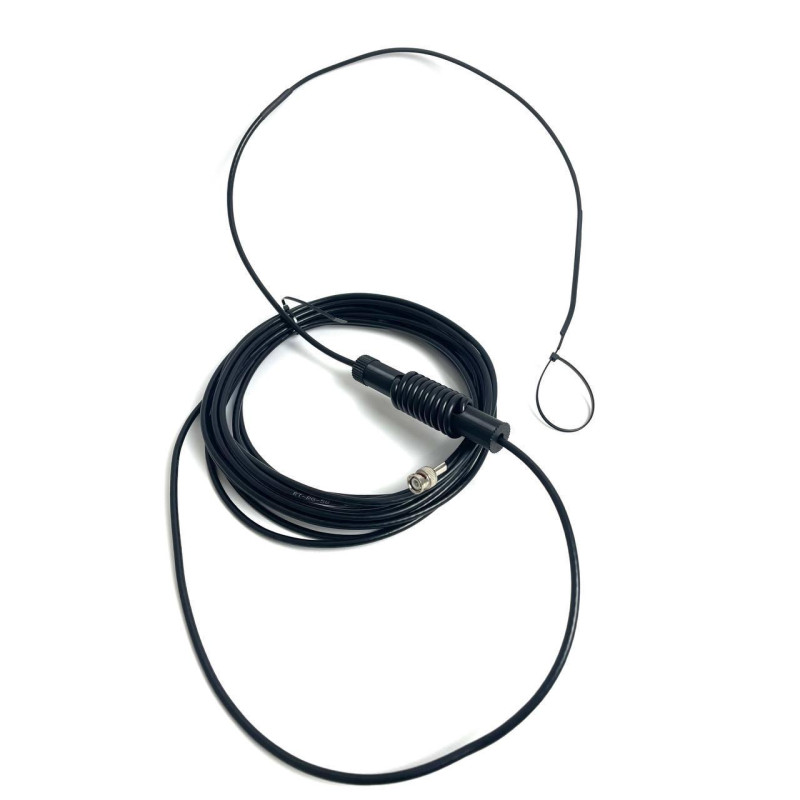

External VHF Flower Pot Antenna 136–174 MHz for Motorola Two-Way Radios (BNC + R7A)
Boost radio communication in field and urban conditions!
The flexible Flower Pot antenna provides excellent reception and transmission parameters in the VHF band (136–174 MHz).
Compatibility
BNC connector + R7A adapter for Motorola two-way radios:
• Motorola R7 / R7A
• DM4400 / DM4401
• DM4600 / DM4601
• DM4800 / DM4801
• and other models with a similar connector
Specifications
Parameter Value
Type External antenna
Frequency range 136–174 MHz
Standard VHF
Communication range up to 10–12 km (depends on terrain)

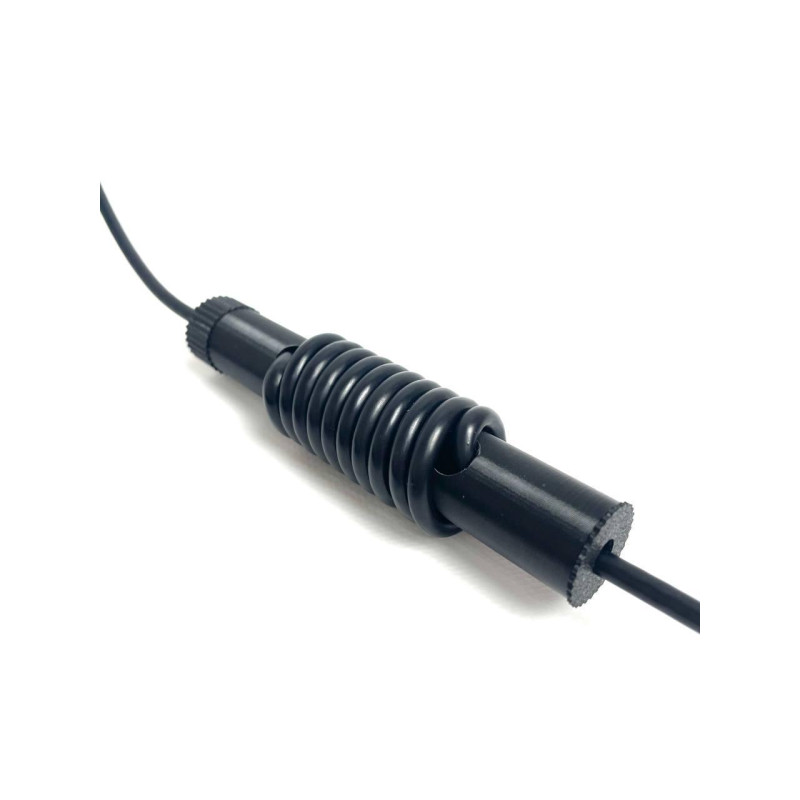

Design Flower Pot

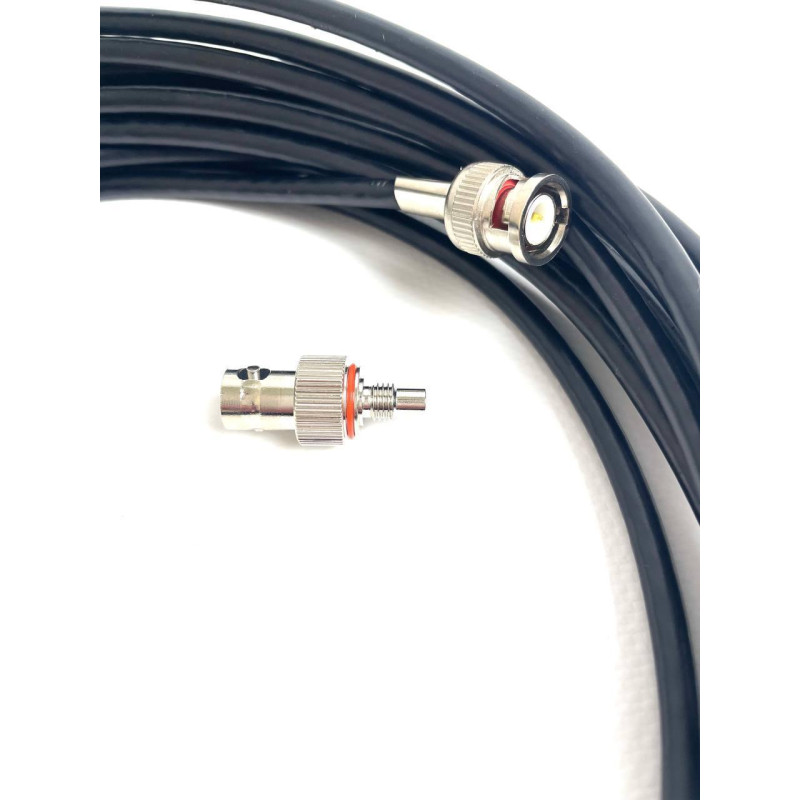

Connector BNC + R7A adapter
Cable included 10 m
Frequency tuning Possible correction by turns at the end
Flexible tuning to your frequency
The antenna is assembled and initially tuned to ≈155 MHz (145–165 MHz at SWR ≤ 2).

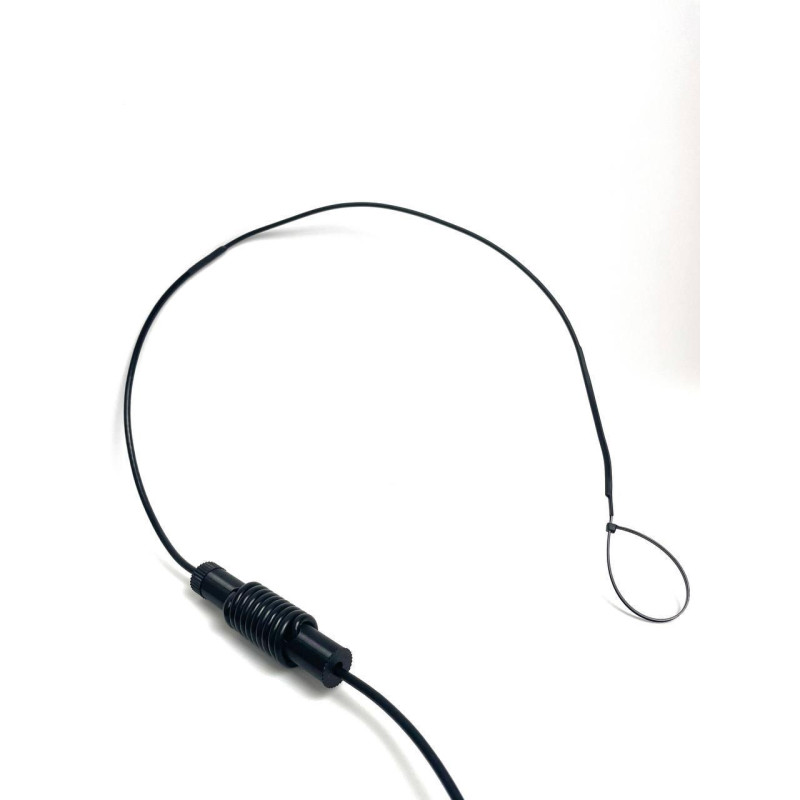

• Bend the end by ~3 cm → frequency ↑ by ~5 MHz
• Unbend the turns → frequency ↓
This allows optimizing operation for a specific channel and achieving maximum communication range.
Advantages
High efficiency and stable operation
Flexible and lightweight for transport
Can be hung at height — trees, buildings, towers

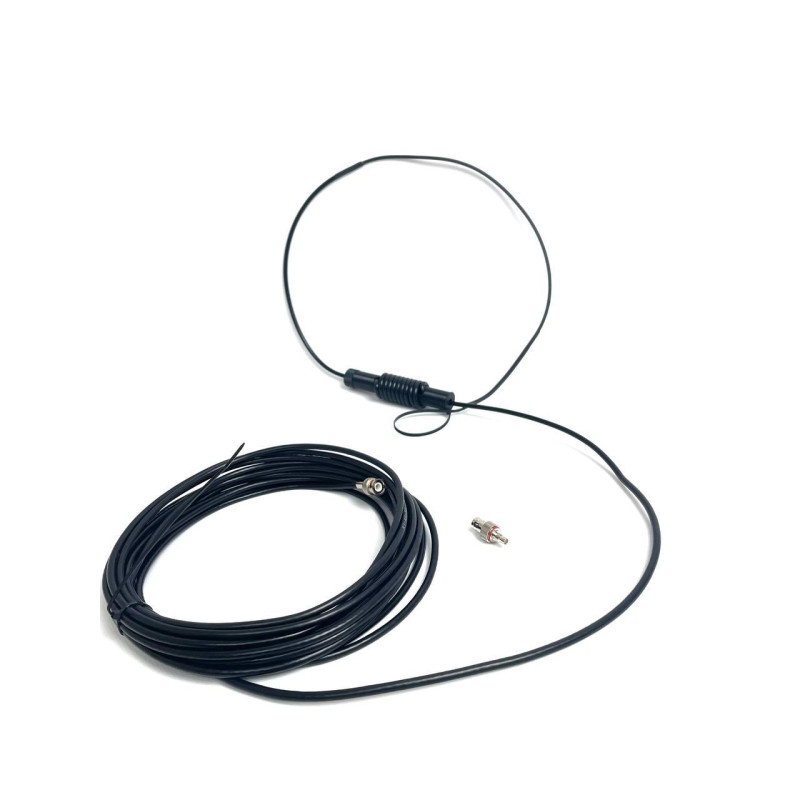

Included in the set:
• Flower Pot Antenna
• 10 m coaxial cable
• R7A adapter
Boost radio communication in field and urban conditions!
The flexible Flower Pot antenna provides excellent reception and transmission parameters in the VHF band (136–174 MHz).
Compatibility
BNC connector + R7A adapter for Motorola two-way radios:
• Motorola R7 / R7A
• DM4400 / DM4401
• DM4600 / DM4601
• DM4800 / DM4801
• and other models with a similar connector
Specifications
Parameter Value
Type External antenna
Frequency range 136–174 MHz
Standard VHF
Communication range up to 10–12 km (depends on terrain)
Design Flower Pot
Connector BNC + R7A adapter
Cable included 10 m
Frequency tuning Possible correction by turns at the end
Flexible tuning to your frequency
The antenna is assembled and initially tuned to ≈155 MHz (145–165 MHz at SWR ≤ 2).
• Bend the end by ~3 cm → frequency ↑ by ~5 MHz
• Unbend the turns → frequency ↓
This allows optimizing operation for a specific channel and achieving maximum communication range.
Advantages
High efficiency and stable operation
Flexible and lightweight for transport
Can be hung at height — trees, buildings, towers
Included in the set:
• Flower Pot Antenna
• 10 m coaxial cable
• R7A adapter
Specifications
Connector type
BNC + R7A Adapter
Housing type
external, Flower Pot design
Material
coaxial cable (RG58 type) + polymer/heat-shrink jacket
Polarization
vertical
Weight (depends on size)
300 g
Antennas
Frequency range
136–174 MHz
Enhancements
2–3 dBi
