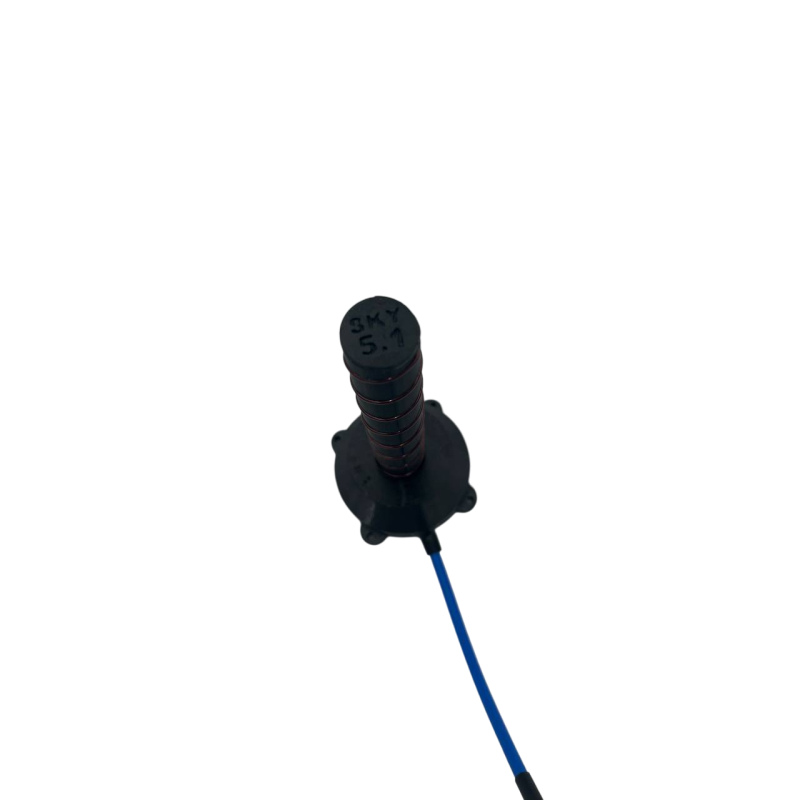

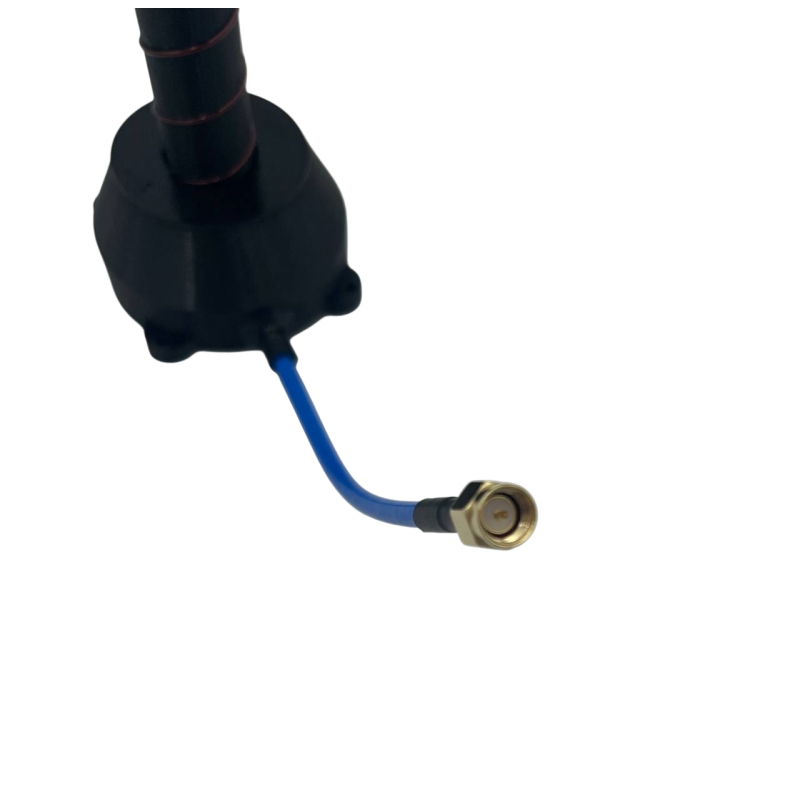

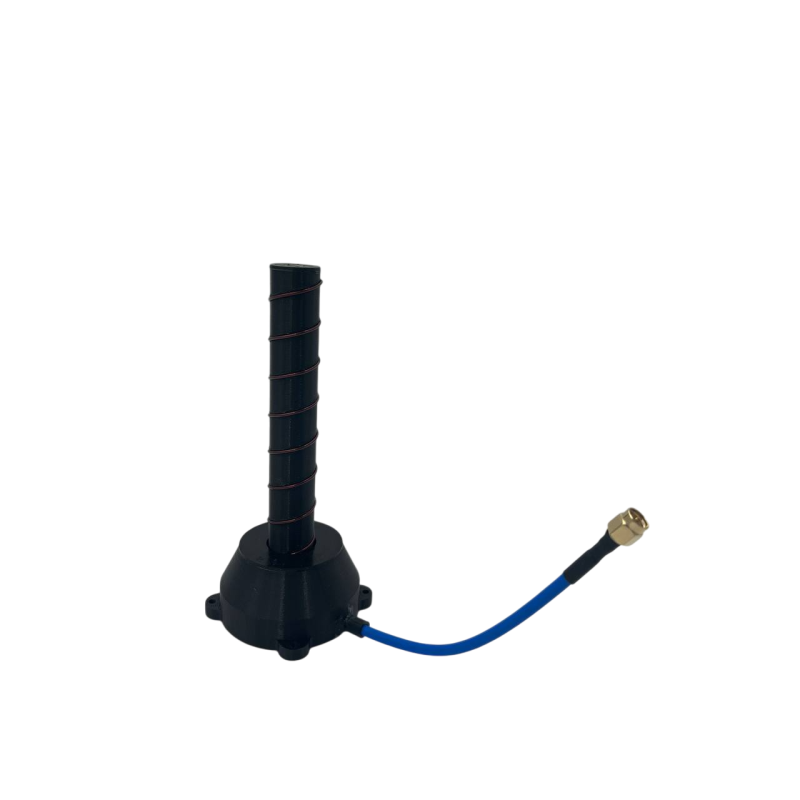

Introducing the HELICAL 5.0GHz 16dBi LHCP (left-hand polarization) antenna, 9-turn, open-type with SMA connector from SkyReach — a reliable solution for establishing directional wireless channels in the 4000-5900 MHz range. This model combines compactness and high efficiency, suitable for data transmission systems, UAV communication, point-to-point networks, and industrial telemetry solutions. The Helical 9 antenna has a beamwidth of 30 degrees, providing focused coverage and reduced side lobe emissions, while its open-type design simplifies installation and cooling.

Key Information and Compatibility: Brand: SkyReach. Product Type: Antennas > Circular Antennas > Helical Antenna. Connector: SMA. Quantity per set: 1 piece. The model is designed for operation at frequencies of 4000-5900 MHz and is optimized for stable performance across a wide frequency range.

Technical Specifications and Design Data:

• Range: 4000-5900 MHz
• Beamwidth: 30 degrees
• Gain: two indications are present in the description — 16 dBi is stated in the title, while 12 dBi appears in the extended specifications (we recommend clarifying the desired value when ordering for project solutions)
• Reflector diameter: 54 mm
• Cable length: approximately 9 cm
• Antenna conductor: 1 mm enameled copper wire
• Turns: 9
• Polarization: LHCP (left-hand circular polarization)
• VSWR: consistently below 1.5 in the 4000-5900 MHz range; for 4000-5300 MHz, VSWR is 1.2
• Maximum input power: 50 W
• Antenna weight: g

The open-type Helical antenna provides simple mechanical mounting and excellent heat dissipation. LHCP polarization makes it optimal for systems requiring reduced interference from signals with different polarization, while 9 turns and a 54 mm reflector diameter ensure a stable radiation pattern. If you need an antenna with different parameters (different cable length, different connector, or different gain value), custom manufacturing options are available.

This antenna is ideal for creating directional communication lines at 5 GHz frequencies, establishing stable connections in point-to-point links, use in wireless video surveillance systems, and specialized cellular and industrial communication solutions. Thanks to its low VSWR and high power handling, it is suitable for operation in various conditions.

Before ordering, it is recommended to clarify the desired parameters (gain, cable length, connector type) to get the optimal option for your project. Manufacturer: SkyReach. Type: Helical antenna, open-type, 9 turns, LHCP, SMA.
