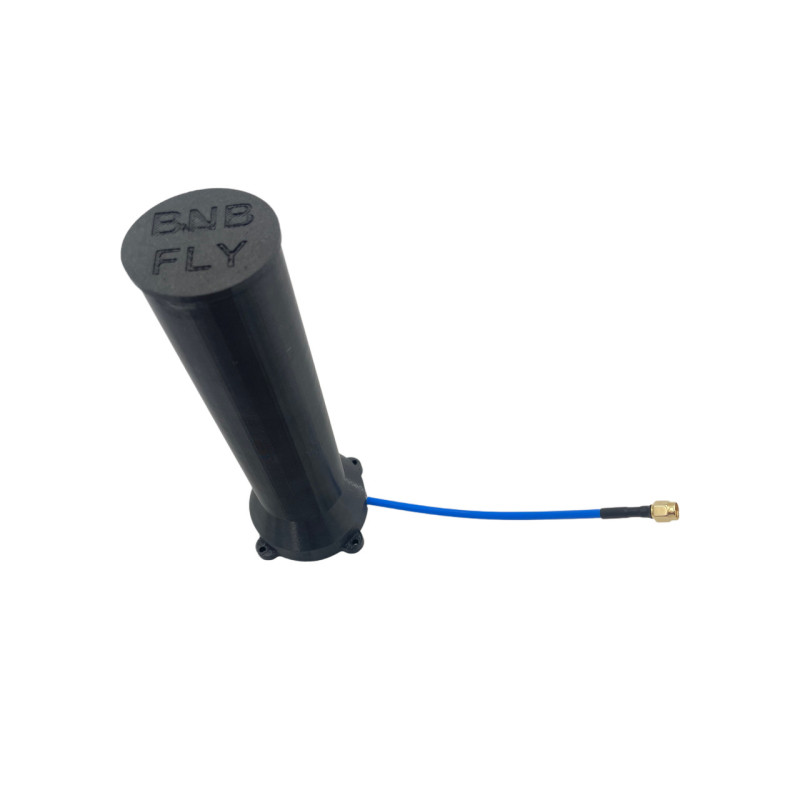

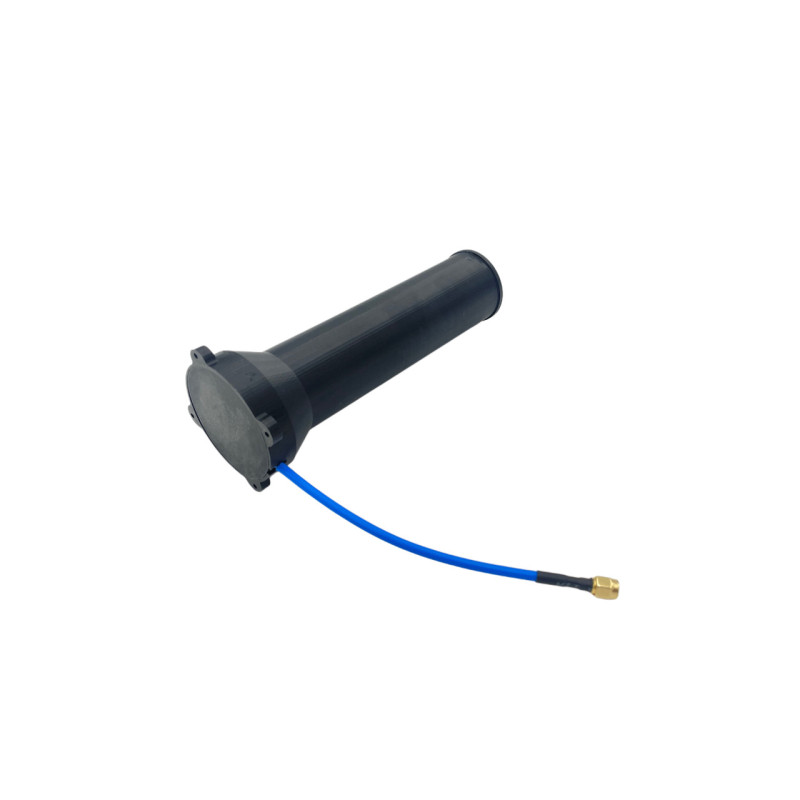

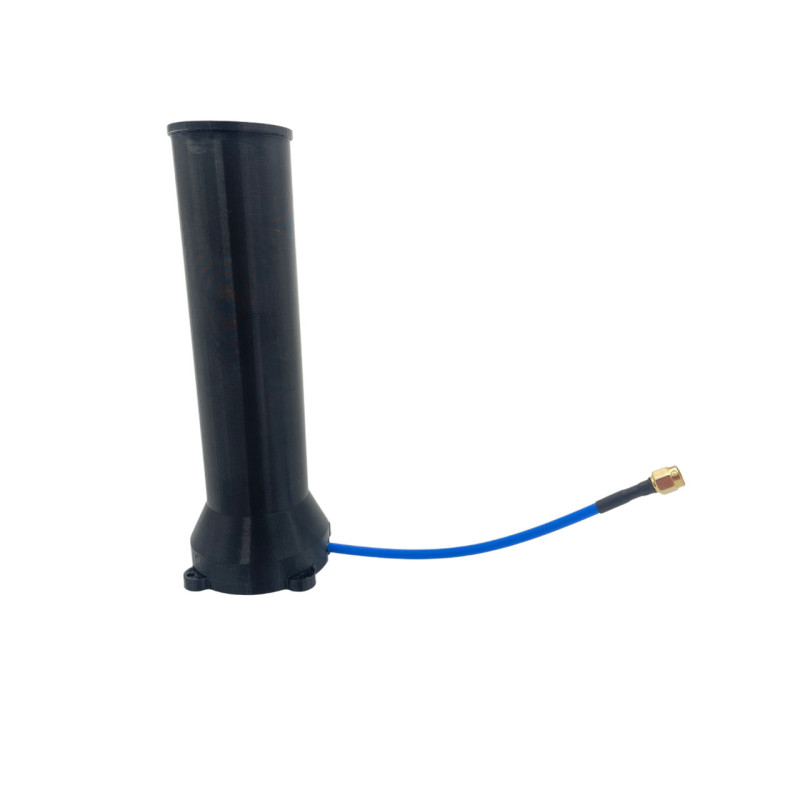

HELICAL 5.8 GHz Antenna — 12 dBi, RHCP, 12 Turns, Enclosed Type, SMA

We offer a high-quality Helical circular antenna from the manufacturer SkyReach, designed for long-range FPV communication and challenging signal conditions. This model is an enclosed helical antenna with right-hand circular polarization (RHCP), ensuring stable reception and interference resistance.

Custom manufacturing is available: we adapt connectors, cable length, and other parameters to meet customer requirements. The technical description provides all key device parameters for correct selection and system integration.

Please note: the description also mentions the Penetrator V2 model with an impressive 16 dBi gain — this is a different antenna version for maximum range. The current PRO 12 Helical model, in the configuration presented here, has a gain of 12 dBi and is optimized for a balance of focus and signal stability.

Key Features

• Bandwidth: 4800-6000 MHz
• VSWR consistently below 1.3 in the 4900-6000 MHz range
• Gain: 12 dBi (in some versions/models, 16 dBi may be mentioned for other configurations)
• Turns: 12
• Polarization: RHCP (Right-Hand Circular)
• Beamwidth: approximately 30° (focused coverage), at close distances the beam expands to approximately 60°
• Reflector Diameter: 55 mm
• Cable Length: approximately 12 cm
• Antenna Conductor: 1 mm enameled copper wire
• VSWR: below 1.3
• Maximum Input Power: 50 W
• Connector: SMA
• Antenna Weight: 81 g
• Quantity Included: 1 piece

This antenna is ideal for use with an antenna tracker, especially for extreme long-range flights. Its helical design ensures improved signal penetration through obstacles, stable operation at high frequencies, and convenient installation in various configurations.

The product belongs to the category: Antennas > Circular Antennas > Helical Antenna. Exceptional manufacturing quality and carefully selected materials ensure a long service life and reliable operation in field conditions.

The technical data provided above allows for compatibility assessment with your equipment: frequency band, VSWR parameters, gain, and mechanical dimensions will help you choose the optimal configuration for your application.
