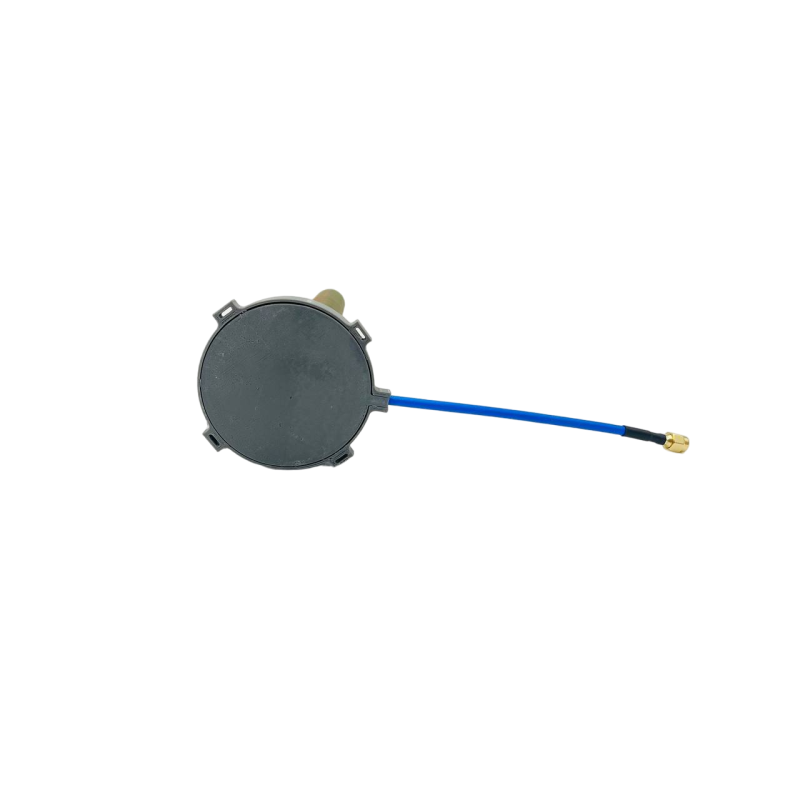

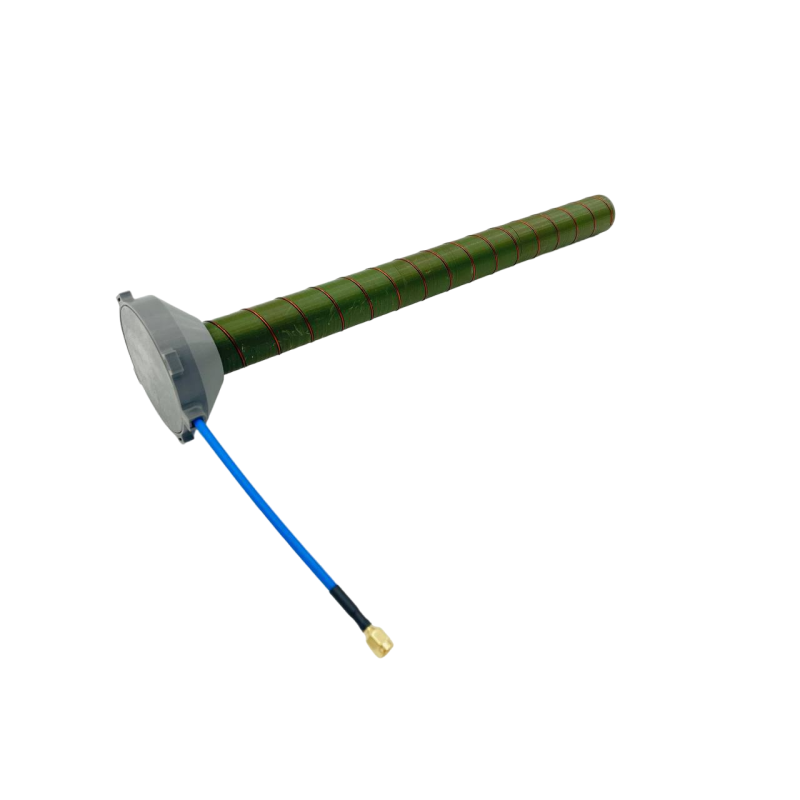

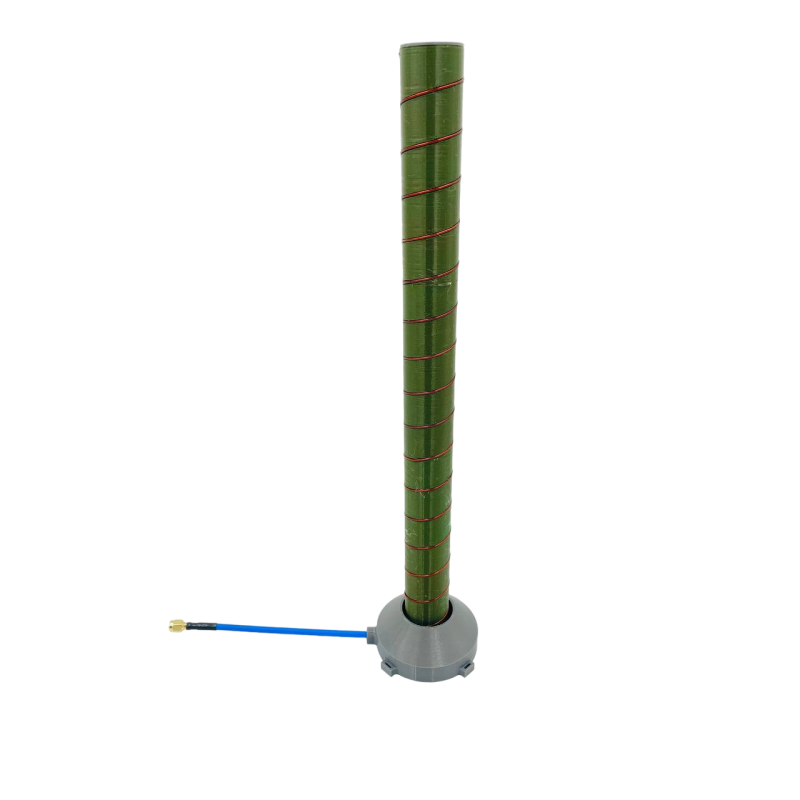

HELICAL Antenna 3.0-3.5GHz 14dBi LHCP (Left-Hand Polarization), 17-Turn, Open-Type SMA

Introducing the HELICAL antenna from SkyReach, an ideal solution for stable wireless communication links in the 3.0-3.5 GHz range. This circular antenna is designed to provide high signal quality with enhanced gain of 14 dBi and a low VSWR — less than 1.5, ensuring minimal reflections and losses upon connection. The model features an open-type design, left-hand polarization (LHCP), and is equipped with a standard SMA connector for easy integration with radio equipment.

Key Features

• Frequency Range: 3.0 - 3.5 GHz
• Gain: 14 dBi
• VSWR: less than 1.5
• Antenna Conductor: 1 mm enameled copper wire
• Beamwidth: 25°
• Number of Turns: 17
• Polarization: LHCP (Left-Hand Polarization)
• Type: Open-type
• Connector: SMA

The antenna is suitable for building point-to-point and sector links, data transmission systems, and other applications within the 3.0–3.5 GHz frequency range. The 17-turn design with 1 mm enameled copper wire ensures reliable mechanical strength and parameter stability. Thanks to its narrow 25° beamwidth and high 14 dBi gain, the device provides a directional signal beam with minimal interference from side directions.

Installation and operation do not require specialized tools: the open-type design allows the antenna to be mounted on various supports, and compatibility with the SMA connector ensures simple connection to most radio modems and transmitters. The SkyReach model is an optimal choice where reliability, directionality, and low VSWR are required in the 3.0-3.5 GHz range.

Additional: Product ID: 31583. Product Category: Antennas > Circular Antennas > Helical Antenna.
