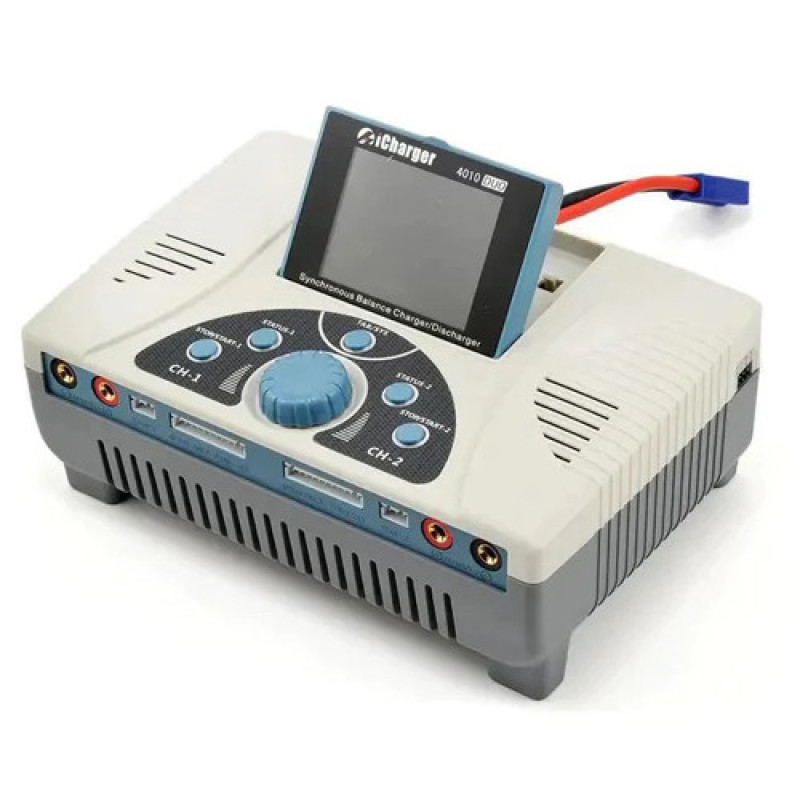

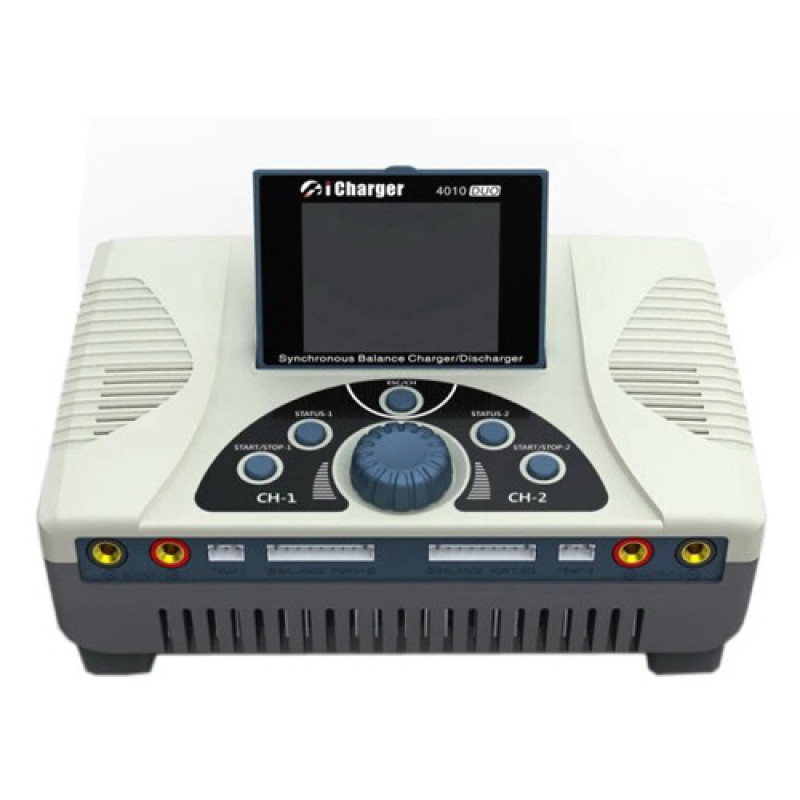

iCharger 4010 Duo – an advanced dual-channel solution for charging rechargeable batteries. The device uses a synchronous buck-boost DC/DC converter, which ensures high energy conversion efficiency. It provides high battery charging power, and for process safety, the device is equipped with built-in active cooling and internal overheat protection. The device's display has an adjustable tilt angle and shows complete information about the battery charging process: current, voltage, power, capacity, internal resistance, status control, current time, and temperature.

Input voltage: 9-50 V DC (via EC5 connector)
Input current limit: 65 A
Maximum charge power: 1400 W / channel (up to 2000 W in synchronous mode)
Charge current range: 0.05 – 40 A / channel (up to 70 A in synchronous mode)
Discharge power: 130 W / channel (up to 200 W in synchronous mode)
Maximum regenerative discharge: 1400 W / channel (up to 2000 W in synchronous mode)
Maximum external discharge power: 1600 W, 40 V, 40 A (up to 3200 W in synchronous mode)
Balancing current: 1.2 A / channel (up to 2.4 A in synchronous mode)
Balancing accuracy: 10 mV
Supported battery types:

LiPo, LiLo, LiFe: 1-10S / channel
NiMh, NiCd: 1-25S / channel
Pb: 1-18S / channel

Large color display with tilt adjustment
Intelligent charging process control algorithm
PC connection via Mini-USB port
MicroSD card slot
Housing material: high-quality plastic
Device dimensions: 210 x 140 x 81 mm
Kit weight: 2 kg

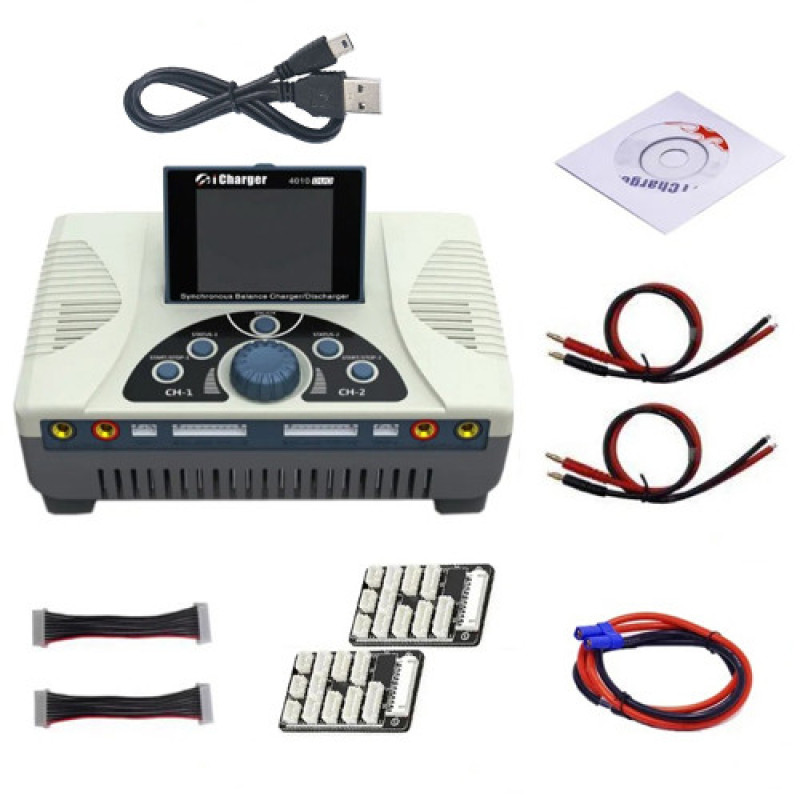

Package contents:

iCharger 4010 Duo charger
Power connection cable
Battery connection cable with bare contacts – 2 pcs
Balancing board connection cable – 2 pcs
Balancing board – 2 pcs
USB – Mini-USB cable – 1 pc
Software disc ()
Anti-slip rubber feet – 4 pcs
