Can be manufactured to your specifications!

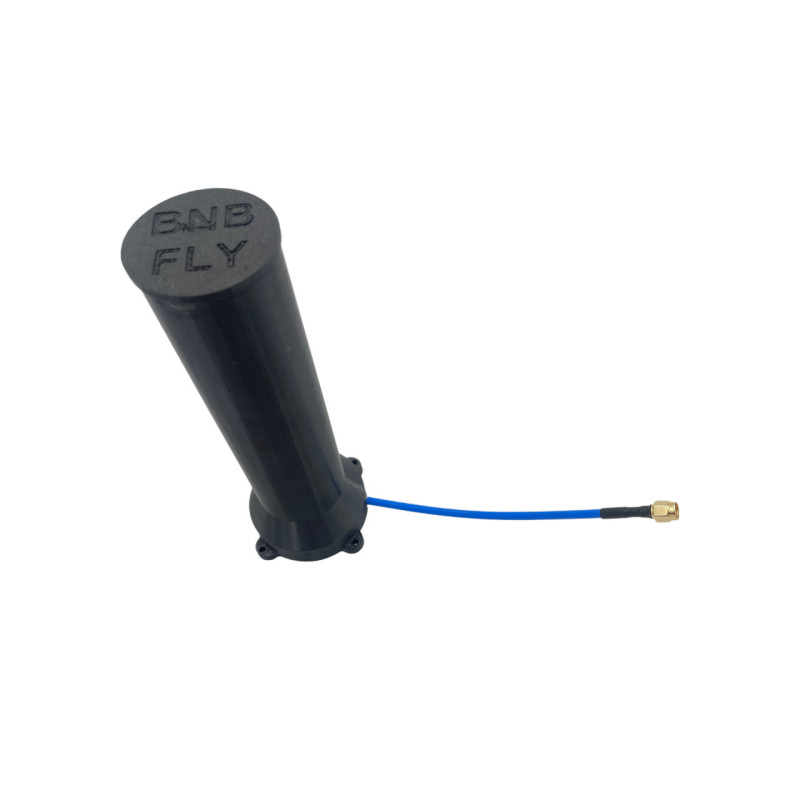

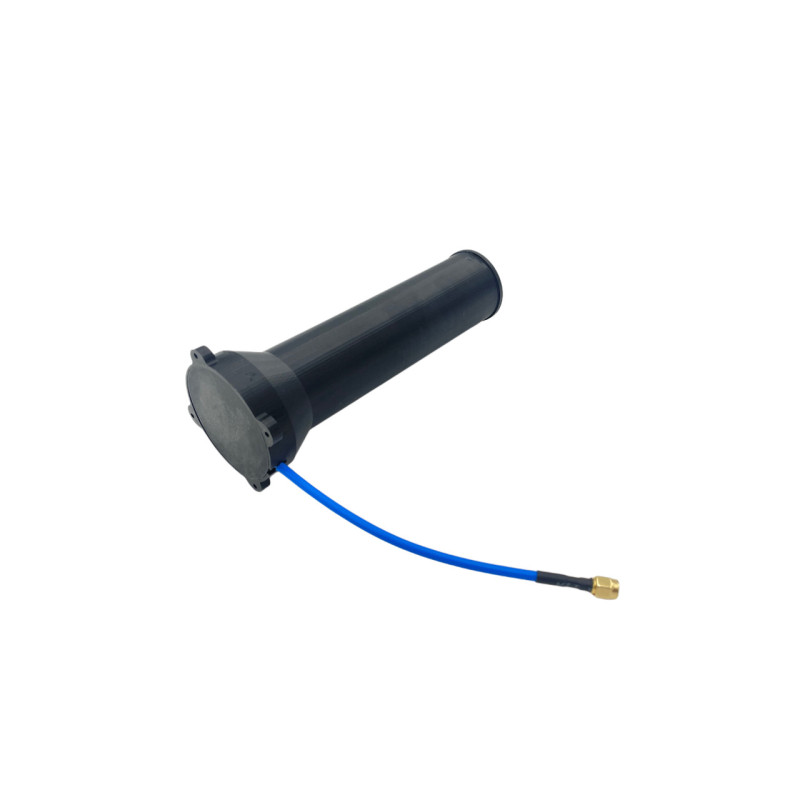

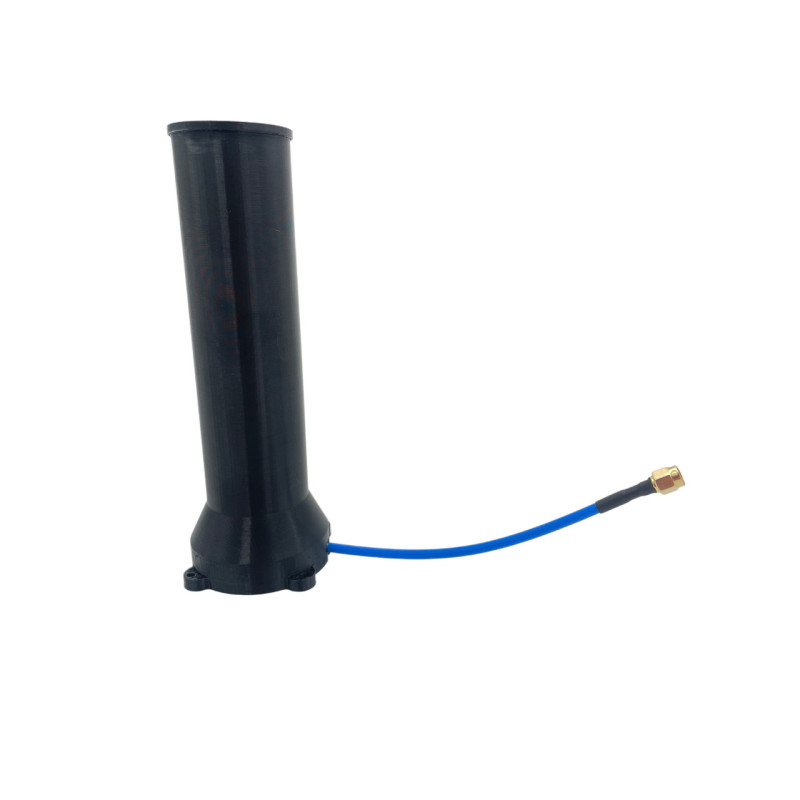

Introducing the HELICAL 5.8GHz 12dBi LHCP (Left-Hand Polarization) Antenna, 12-Turn, Enclosed Type SMA from SkyReach. This circular helical antenna is designed for FPV applications and long-range sensing — it combines a compact design, reliable SMA connector, and high efficiency across the frequency range.

The antenna is designed to operate in the range of approximately 4900-6000 MHz with a consistent VSWR value below 1.3, ensuring low reflected losses and stable communication. The technical specifications also indicate a bandwidth of 4800-6000 MHz — this means broad compatibility with standard 5.8 GHz systems.

Implementations with various parameters are available for different needs: the PRO 12 version has a gain of 12 dBi and consists of 12 turns, while an improved version (mentioned for comparison, models like Penetrator V2) is described with a gain of up to 16 dBi and 18 turns. In its basic configuration, this antenna has left-hand circular polarization (LHCP), which enhances channel stability against interference and multipath.

For optimal long-range performance, it is recommended to combine the antenna with an antenna tracker — this is especially useful during extreme FPV flights and competitions.

Key Technical Specifications

• Bandwidth: 4800-6000 MHz
• Operating range with low VSWR: 4900-6000 MHz (VSWR < 1.3)
• Beamwidth: approximately 30° (can expand to ≈60° at close range)
• Gain: 12 dBi (PRO 12 version); a modification with 16 dBi for Penetrator V2 is also mentioned
• Reflector diameter: 55 mm
• Cable length: approximately 12 cm
• Antenna conductor: 1 mm enameled copper wire
• Turns: 12 (in the basic version)
• Polarization: LHCP (Left-Hand Circular)
• VSWR: below 1.3
• Maximum input power: 50 W
• Connector: SMA
• Antenna weight: 81 g
• Quantity per package: 1 piece

The antenna features an enclosed design, providing additional protection for components and parameter stability during flight. It is ideal for FPV applications, drone racing, long-range missions, and other tasks requiring directional circular polarization and high signal penetration capability.

Product category: Antennas > Circular Antennas > Helical Antenna. Manufacturer: SkyReach.
