Product Code: 59740-wb-pcb-ipex-2-5-2-8
180 грн.
Buy this product in 1 click:
Main specifications
Connector type:
RG178 + IPEX Female
Housing type:
dipole, on-board installation
Material:
textolite (PCB)
Weight (depends on size):
6 g
Frequency range:
2.5–2.8 GHz
All specifications
We will deliver this product:
Payment
Description

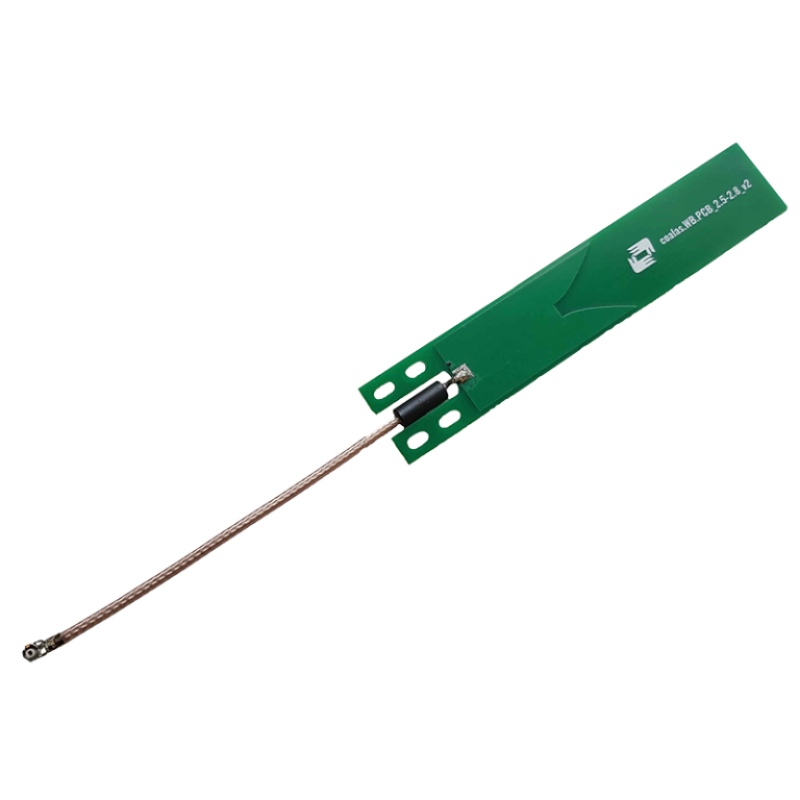

PCB dipole (textolite) antenna for onboard installation, designed to operate in the 560-700 MHz range with stable VSWR performance. Provides broadband operation and reliable signal transmission, equipped with an IPEX Female connector and RG178 cable.
Specifications
| Band | 2.5 GHz – 2.8 GHz (VSWR < 1.5) |
| Gain | 2.4 dBi |
| Input Impedance | 50 Ohm |
| Max Power | 10 W |
| Connector | RG178 (60, 120, 160, 180, 240 mm) + IPEX Female |
| Dimensions | 90 x 17 mm |
| Weight | 6 g |
Specifications
Connector type
RG178 + IPEX Female
Housing type
dipole, on-board installation
Material
textolite (PCB)
Weight (depends on size)
6 g
Size
90 × 17 mm
Antennas
Frequency range
2.5–2.8 GHz
Enhancements
2.4 dBi
