Product Code: FA54-logo-500-1040-6d-fast-54
In Stock
2 000 грн.
Buy this product in 1 click:
Main specifications
Connector type: SMA
Weight (depends on size): 180 g
Frequency range: 500–1040 MHz
Beam angle: 120°/90°
Enhancements: 6–7 dBi
All specifications
We will deliver this product:
Payment
Description

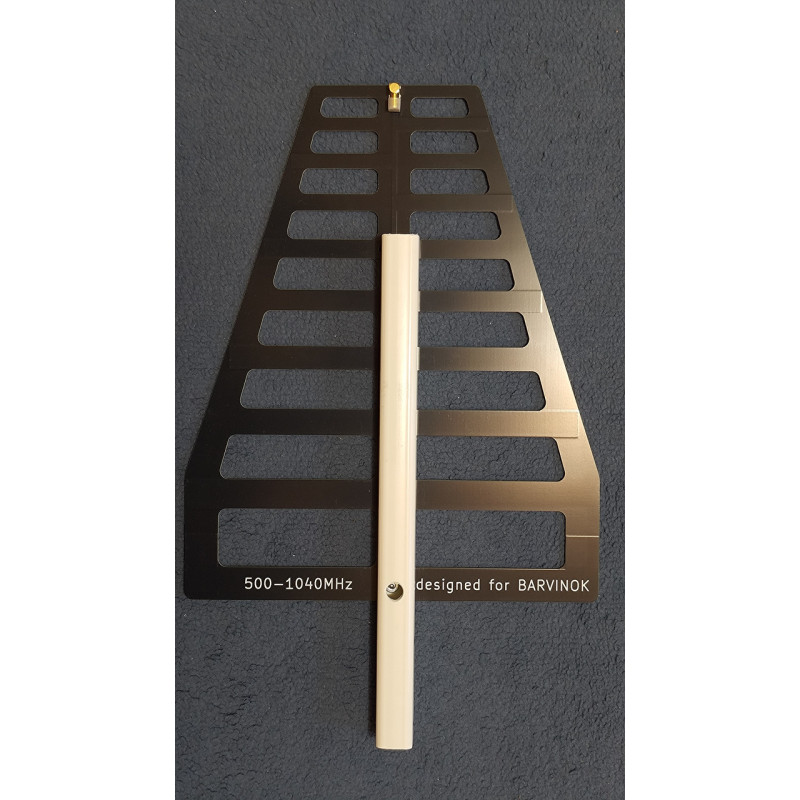

Antenna 500MHz - 1040 MHz (1GHz) with Mast Mount

This universal log-periodic antenna from Aeronetix is designed for professional and semi-professional use with drone control panels, spectrum analyzers, and other radio devices operating in the VHF/UHF frequency range. Its compact and lightweight design combines broadband capability with stable gain, making it an ideal solution for field conditions where reliable mounting and quick installation are crucial.

Advantages and Applications

This antenna is suitable for rapid deployment on masts and tripods, ensuring high-quality signal reception and transmission in the 500–1040 MHz range. It is effective for both tracking signals from unmanned aerial vehicles and diagnosing frequency spectra in the field. Thanks to its narrow dimensions and low weight, the antenna is convenient for transport and quick mounting.

Technical Specifications

Parameter Value
Frequency Range 500–1040 MHz
Gain 6–7 dBi
Beamwidth 120/90 degrees
Dimensions 340×250×15 mm
Weight 180 g
Mast Mount up to 32 mm
Connector SMA

Antenna supplied without cable! This allows you to select the cable and length according to the requirements of a specific installation, choose the right cable type to minimize signal loss, and optimize the reception/transmission system.

Mast mounting is implemented in a simple and reliable way, ensuring stability under wind loads and in field conditions. Its light dimensions and low weight simplify transportation and storage, while the broadband design provides uniform gain across the entire operating range.

The product belongs to the category: Antennas > Log-periodic antenna. The Aeronetix brand guarantees appropriate manufacturing quality and long service life, provided correct installation.

We recommend using this antenna in systems requiring broad coverage without frequent re-tuning, as well as when working in challenging field conditions where reliable mounting and ease of maintenance are important.

Other products in this category here Log-periodic antenna

Specifications
Connector type SMA
Weight (depends on size) 180 g
Size 340 × 250 × 15 mm
Antennas
Frequency range 500–1040 MHz
Beam angle 120°/90°
Enhancements 6–7 dBi
