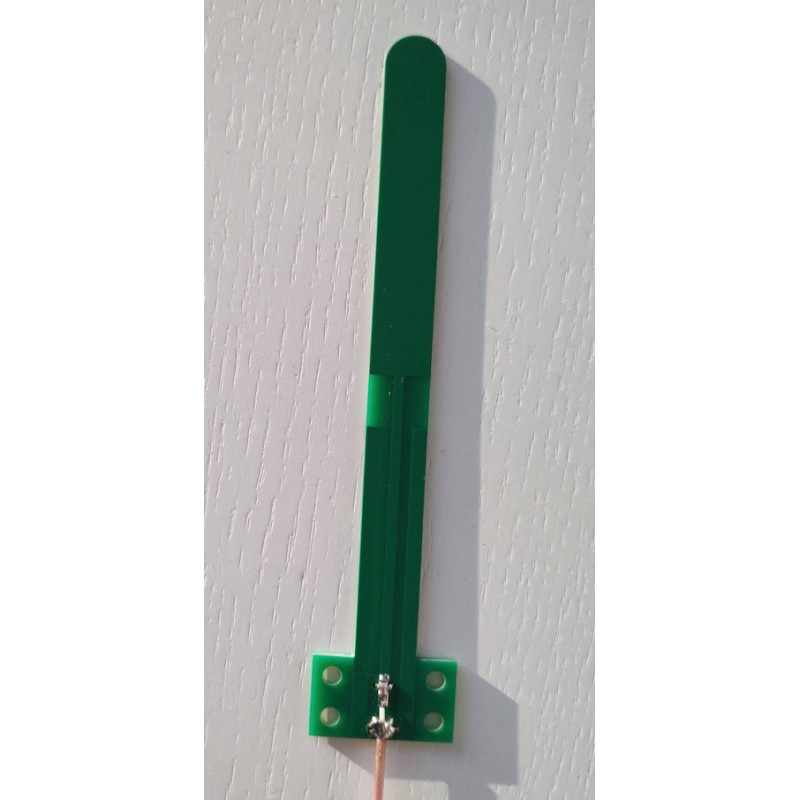

Microstrip Coplanar 750-1020 MHz AB-Antennas

Introducing the microstrip coplanar dipole antenna from AB-Antennas, categorized under Antennas > Dipole Antennas. This compact and reliable antenna component is designed for use in the frequency ranges specified in its technical characteristics, ensuring stable operation in mid-frequency communication bands. Its design is optimized for applications where compactness, low standing wave ratio, and versatile connectivity are crucial.

Technical Specifications

• Frequency Range: 700 - 1.3 MHz

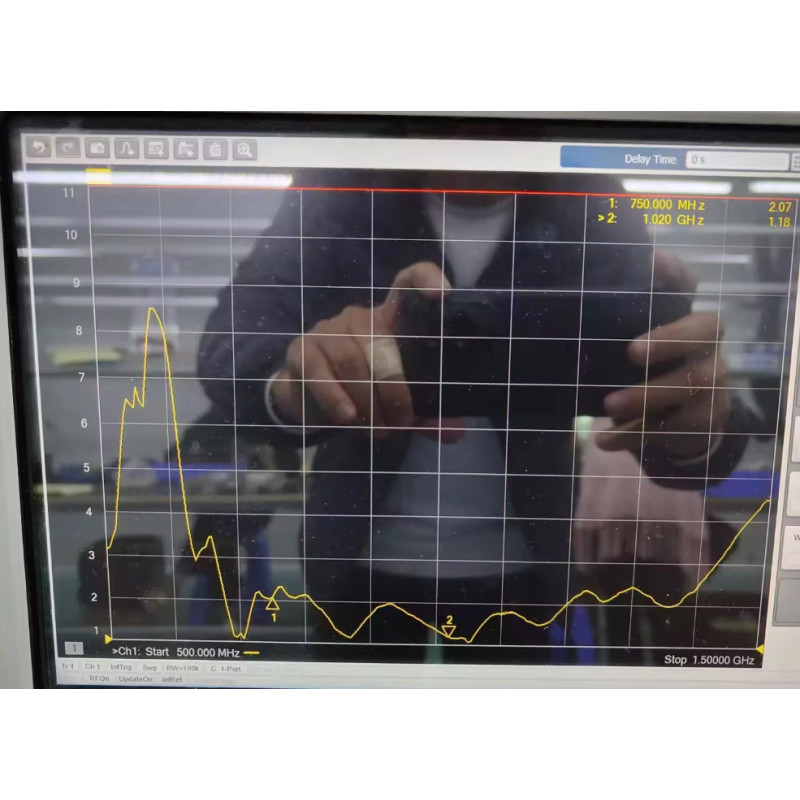

• SWR: 750...1020 MHz < 2
• Gain: 2-3dB
• Radiation Pattern: Omnidirectional
• Polarization: Vertical/Horizontal
• Input Impedance: 50 Ohm
• Connector: SMA female/ IPX

The antenna provides a gain of 2-3 dB, making it suitable for applications requiring a moderate increase in signal level without significant design complexity. Thanks to its omnidirectional radiation pattern, the antenna is excellent for receiving and transmitting signals in environments with multi-directional sources, providing uniform coverage in the horizontal plane.
The 50 Ohm input impedance ensures compatibility with most modern transceivers and facilitates transmission line matching. The SWR parameter in the 750...1020 MHz < 2 range indicates a good level of matching in this frequency range, which reduces signal reflection losses and increases system efficiency.
The antenna's polarization can be either vertical or horizontal, adding flexibility for integration into various systems. The presence of SMA female and IPX connectors simplifies connection to equipment and allows for the selection of the optimal mounting and connection method depending on structural requirements.

This microstrip coplanar design combines ease of installation with reliable operation, making the AB-Antennas antenna a good choice for engineers and integrators seeking a compact solution for covering the frequency ranges specified in the characteristics. Before installation, it is recommended to check compatibility with specific equipment and operating conditions to achieve optimal performance.
