Product Code: FA111-KB 0010 IG-111
In Stock
545 грн.
Buy this product in 1 click:
Main specifications
Application:
For Outdoor Use
Cable availability:
No
Cable Design:
Flexible
Cable type:
Coaxial
Central conductor material:
Copper
All specifications
We will deliver this product:
Payment
Description

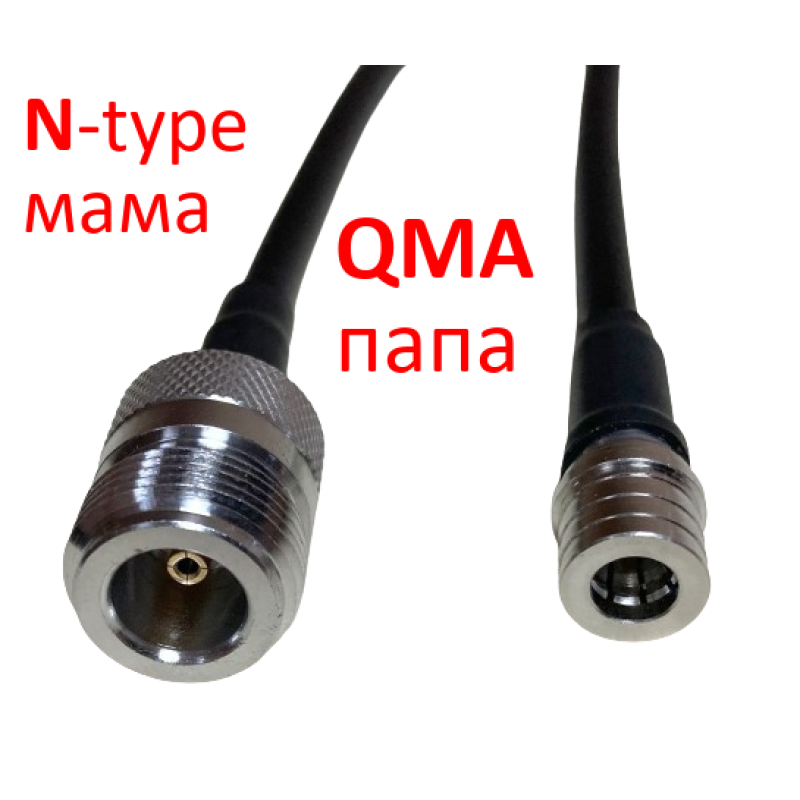

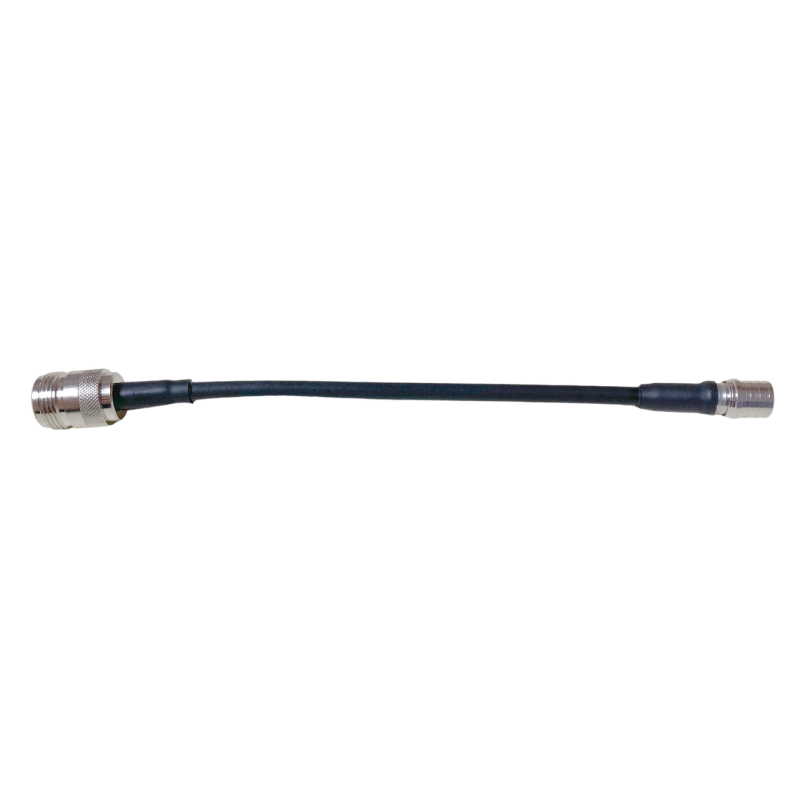

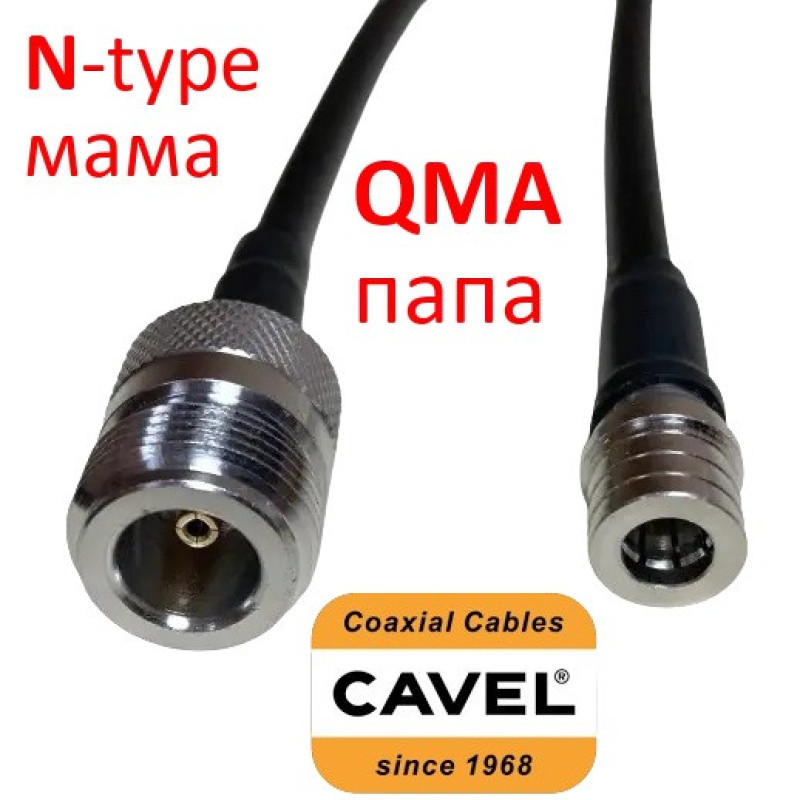

N-type (female) to QMA (male) adapter, (20-50)cm long.
(female-jack; male-plug)
This adapter, sometimes called a "pigtail", is used in addition to long and stiffer cables such as RG58, LMR400, WL400ZHN or RG6 for direct connection to small QMA (male) connectors on various equipment.

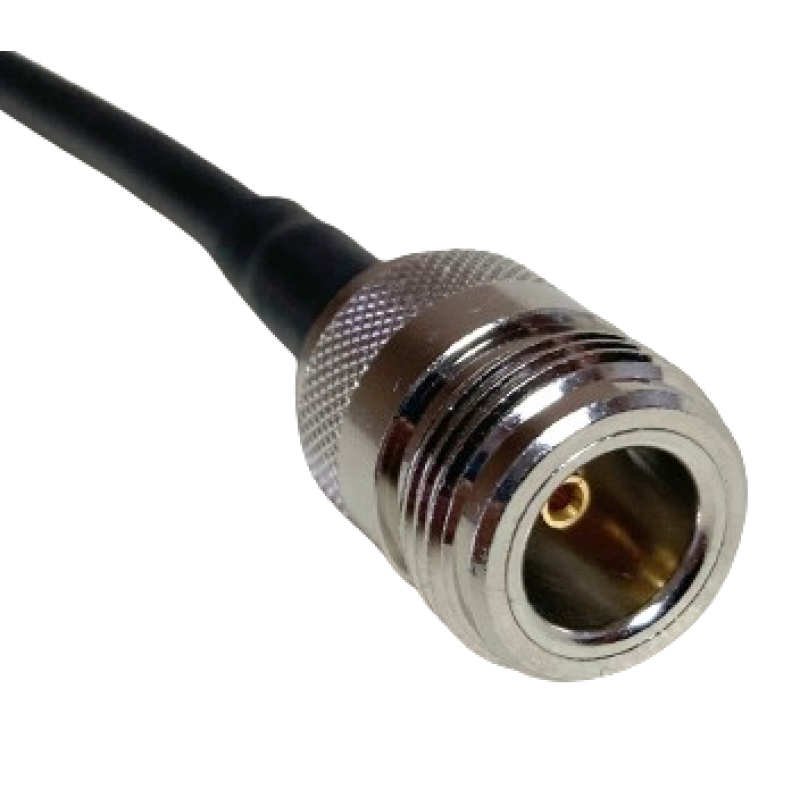

The reverse side has an N-type (female) connection.
Only the highest quality connectors and cable are used in manufacturing.
For additional sealing, heat shrink tubing is applied with adhesive.
For the production of pigtail adapters, a cable similar to RG-58 is used, which is not originally designed for frequencies up to 6 GHz (6000 MHz). Thus, it has significant losses at high frequencies and distances of 20...50 meters.

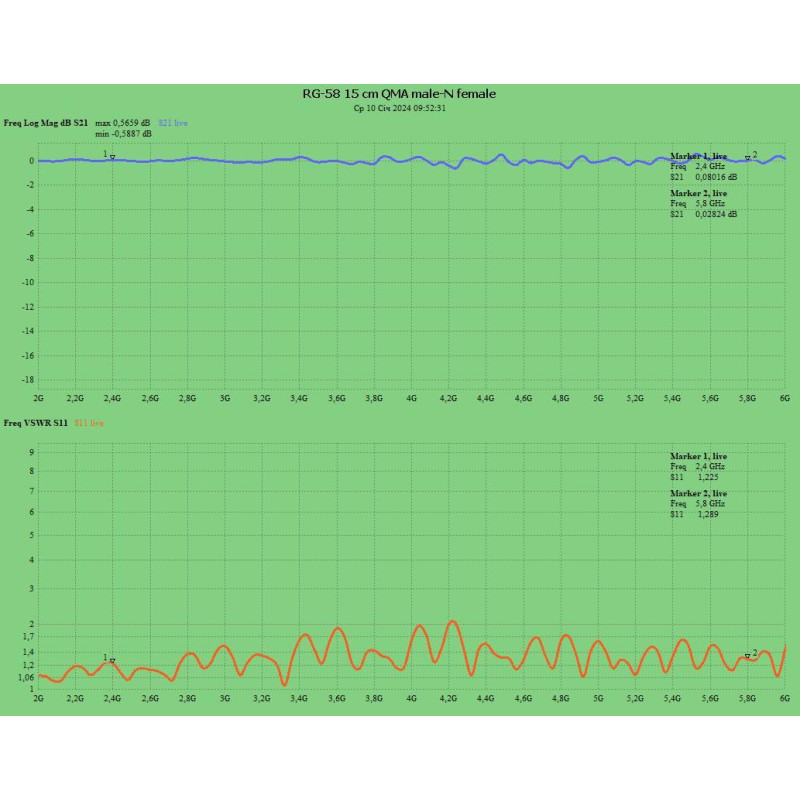

However, for a finished product length of 15 cm, the losses will be about 0.2 dB, which is comparable to cables rated for frequencies up to 6 GHz. But these high-frequency cables have greater rigidity, which defeats the purpose of a soft and flexible pigtail adapter. Moreover, a single low-quality connector can introduce much more significant losses than a mere 0.2 dB.

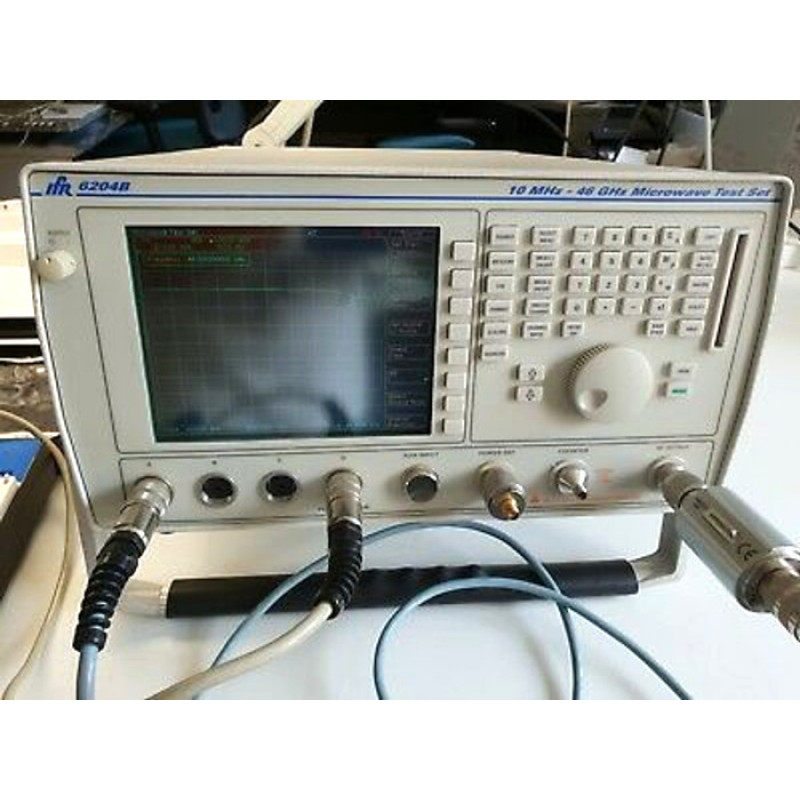

An essential stage of production is testing significant parameters on professional equipment.
As a result, you receive a product of the highest quality and can be confident in its performance under all permissible conditions.
Attention!!!
Connectors installed on cables and adapters (pigtails) are not designed for high torsional and especially tensile loads!
To prevent loss of connection and parameters, it is recommended to use additional cable ties.
Made to order in lengths from 20 to 50 cm
Specifications
Application
For Outdoor Use
Cable availability
No
Cable Design
Flexible
Cable type
Coaxial
Central conductor material
Copper
Mount type
External
Power cable availability
No
Protection Material
Dielectric
Protection Type
Braid
Purpose
For Communication Systems
Screen availability
Yes
Shell color
Black
Type
Adapter
Color
Black
