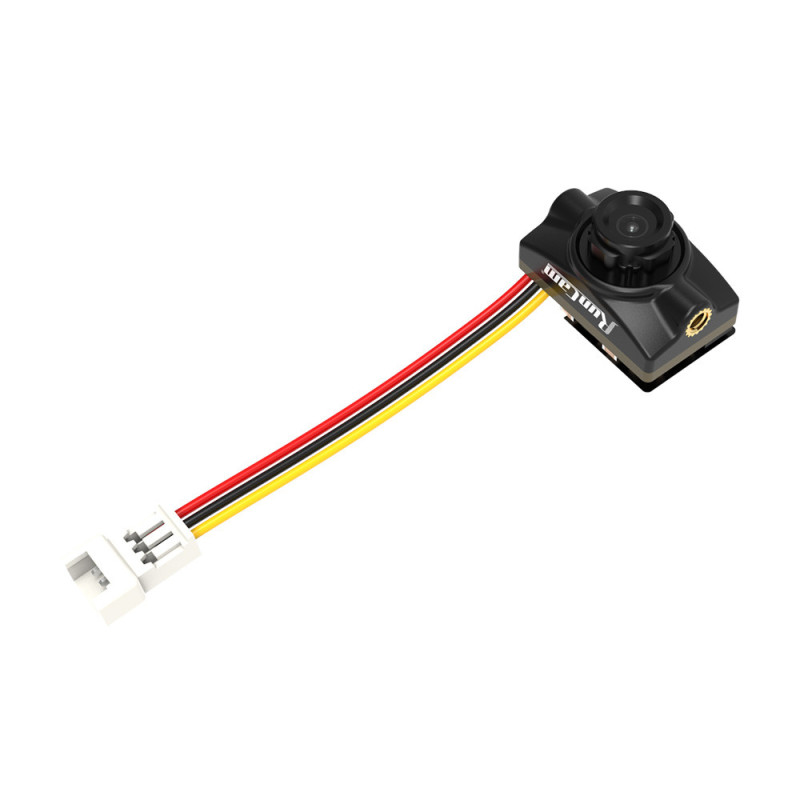

RunCam ATOM-W FPV Camera

RunCam ATOM-W — a compact and ultralight FPV camera from RunCam's new ATOM series, designed for racing and freestyle where low weight, a wide field of view, and high-quality analog video signal are crucial. The camera features a standard housing design, high sensitivity in low light, and easy connection to most drone video systems.

Description and Advantages

The ATOM-W offers an optimal combination of resolution and a wide field of view: 800TVL horizontal resolution and a 130° viewing angle provide a clear image and easy orientation during flight. With a minimum illumination of 0.01Lux at F1.2, the camera delivers a stable image even in low-light conditions. The lightweight ABS housing with an M1.4 copper screw makes the camera durable yet very light — only 1.7g with cables.

Technical Specifications:

• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• Field of View (FOV): 130°
• Signal System: NTSC
• Signal-to-Noise Ratio: >50dB
• Electronic Shutter Speed: Auto
• Automatic Gain Control (AGC): Auto
• Minimum Illumination: 0.01Lux at 1.2F
• D-WDR: Auto
• Day/Night Mode: Color

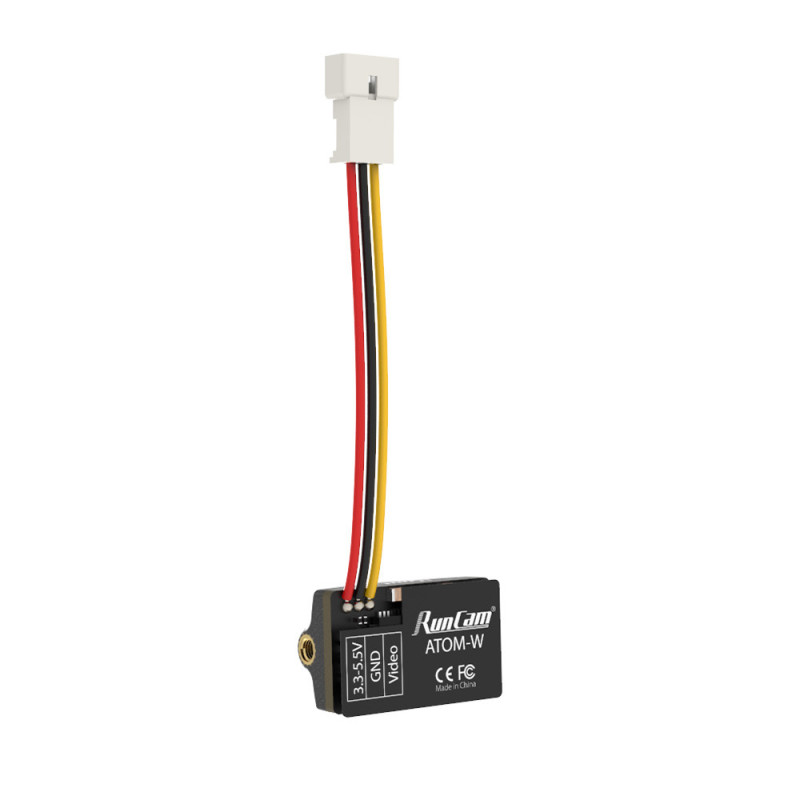

• Power Input: DC 3.3-5.5V
• Power Consumption: 160mA at 5V / 180mA at 3.3V
• Housing Material: ABS with M1.4 copper screw
• Net Weight: 1.7g (with cables)
• Dimensions: L16 mm × W10 mm × H10 mm

Package Contents

Included: 1x ATOM-W Camera. The supplier provides the standard camera package without additional mounts; for mounting, use compatible screws and brackets for FPV micro-cameras.

Brand: RunCam
Product Category: Drones & Quadcopters > Cameras
Product ID: 11673

The RunCam ATOM-W is an excellent choice for pilots seeking a lightweight, compact, yet functional camera for their mini-drones. It is suitable for both racing and freestyle flights; high SNR and auto-exposure settings ensure stable video signal transmission, while the wide field of view allows capturing more space during maneuvering.

Thanks to DC 3.3-5.5V power input and moderate power consumption, the ATOM-W easily integrates into most FPV flight controllers and video transmitters. The ABS housing and M1.4 copper screw provide reliable mounting and durability without unnecessary weight.

If you need a compact camera with good sensitivity, a wide field of view, and a stable analog video signal — the RunCam ATOM-W is worth considering.
